DCF.3.60.4545.8.06 RC45

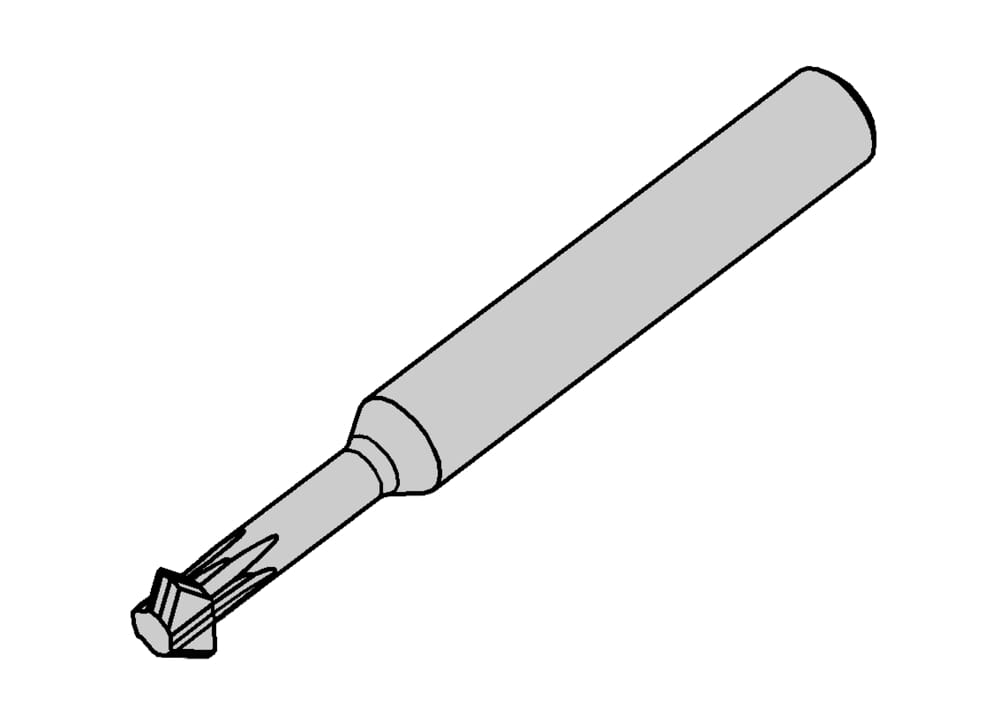

DC Slot Cutter Toolholder
Material number DCF3604545806RC45
HORN DC Slot Cutter Toolholder DCF.3.60.4545.8.06 RC45 for Milling

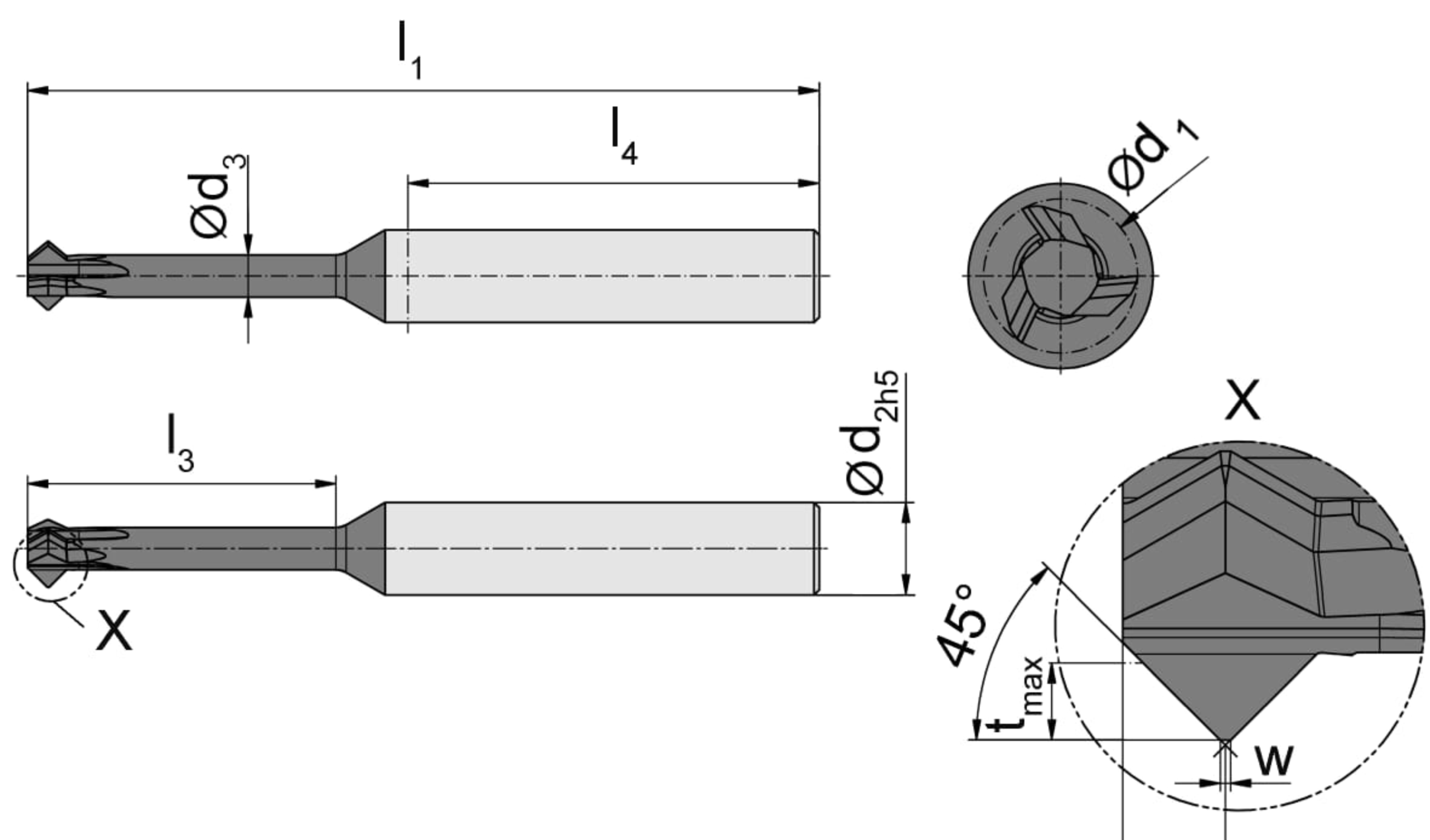

Shank diameter (d2)
0.236
˝
6
mm
Neck length (l3)
0.984
˝
25
mm
Cutting diameter (d1)
0.236
˝
6
mm
Shank, clamping length (l4)
1.417
˝
36
mm
Width of groove (w)
0.008
˝
0.2
mm
Neck diameter (d3)
0.124
˝
3.15
mm
Maximum milling depth/ depth of groove (tmax)
0.049
˝
1.25
mm
Total length (l1)
2.559
˝
65
mm
Chamfer (Fase)
45
°
