DG12.F02.45.5.05.0P RC4P
Milling Toolholder DG12
Material number DG12F02455050PRC4P

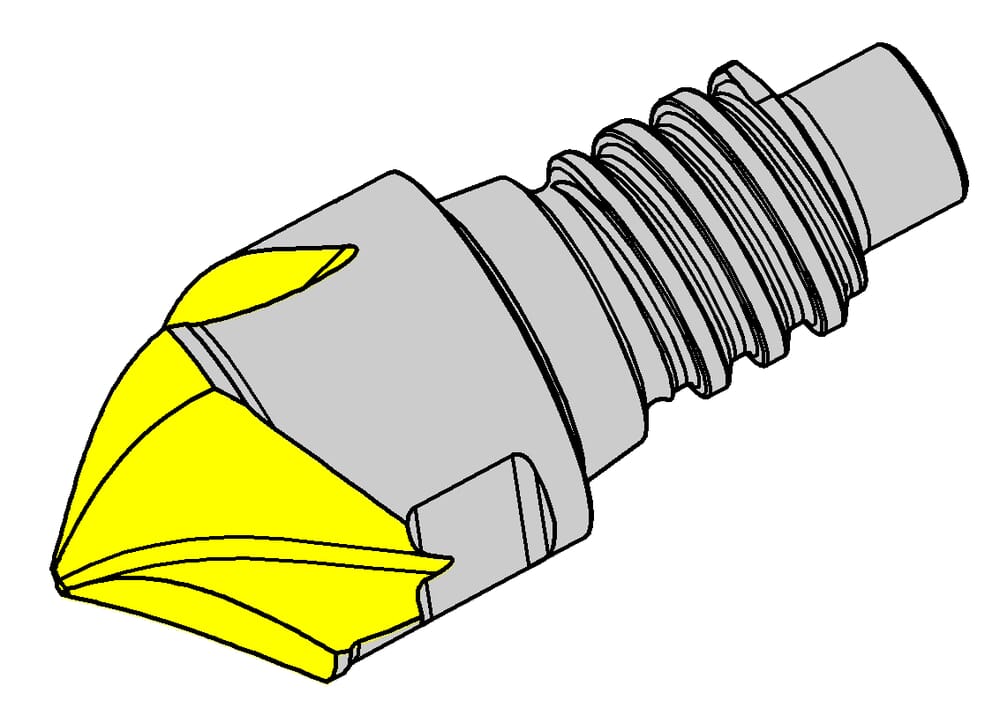

HORN Milling Toolholder DG12 DG12.F02.45.5.05.0P RC4P for Milling
neck-length-met
0.551
˝
14
mm

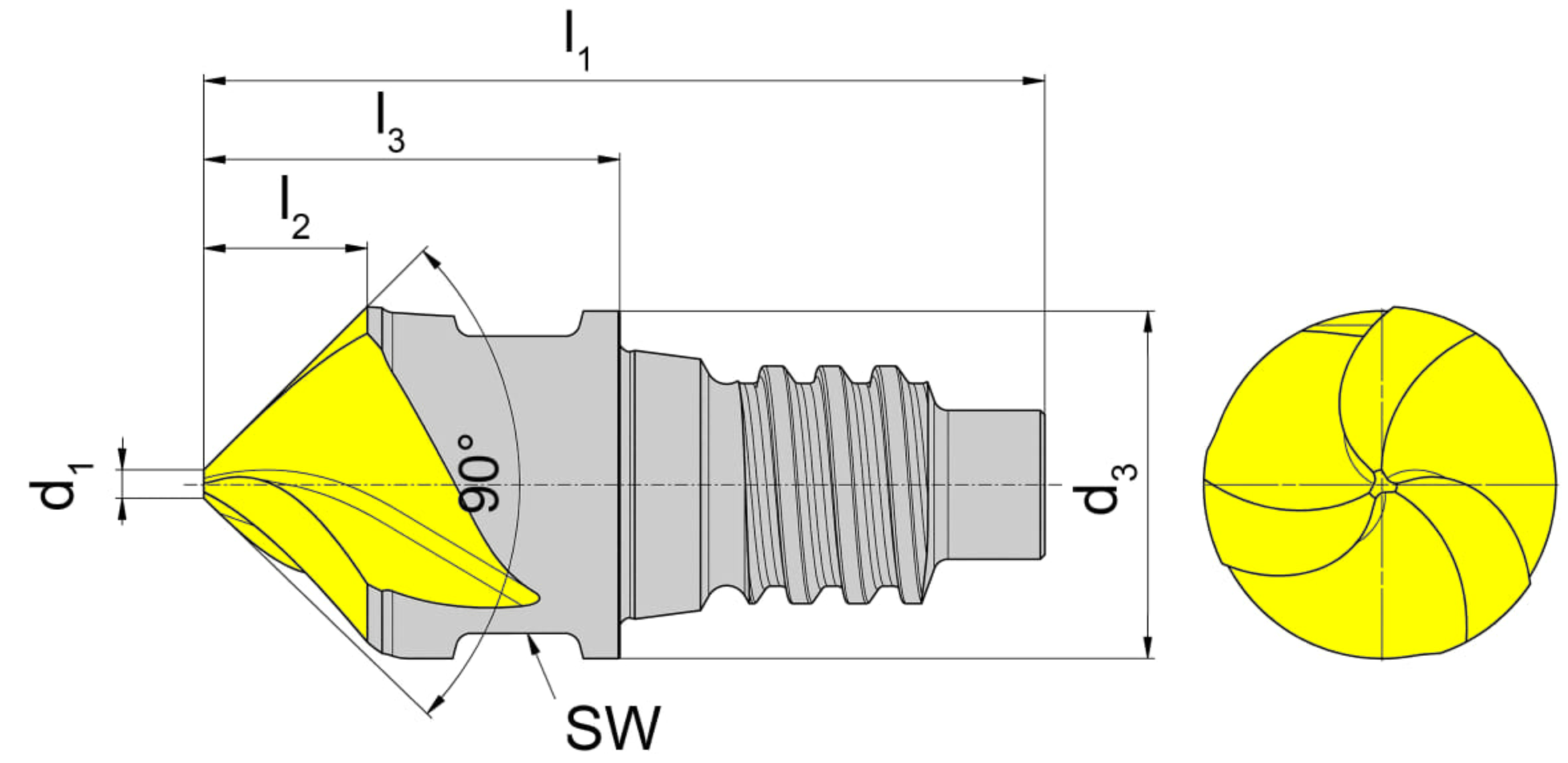

Cutting diameter (d1)
0.067
˝
1.7
mm
Corner bevel (45 ° x b) (b x 45°)
0.203
˝
5.15
mm
ISO_SSC
HORNDG01228$0N$$$$$
DIN_SSC
HORN-DG01220N
Katalog_SSC
DG0122
Neck diameter (d3)
0.461
˝
11.7
mm
Key range (SW)
10
mm
Effective cutting length (l2)
0.197
˝
5
mm
Tool length from stop, flange (l3)
0.551
˝
14
mm
diameter-met
0.394
˝
10
mm
Total length (l1)
1.114
˝
28.3
mm
