R105.BO.70.20.105.2 EG35
Insert
Material number R105BO70201052EG35

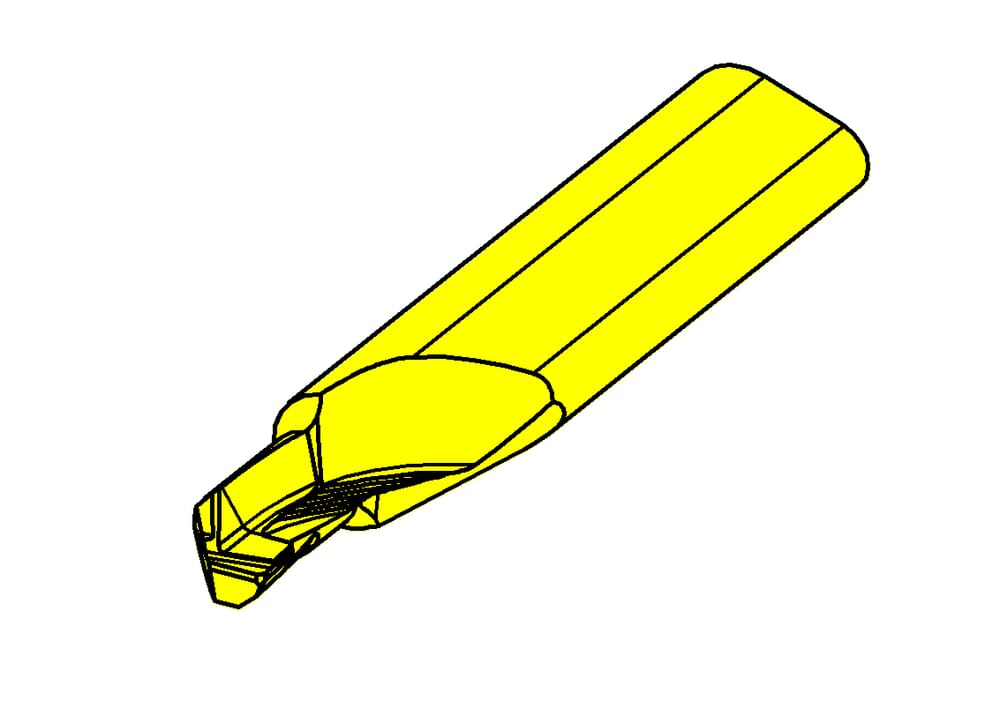

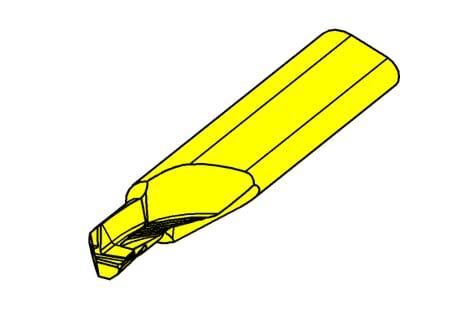

HORN Insert R105.BO.70.20.105.2 EG35 for Turning

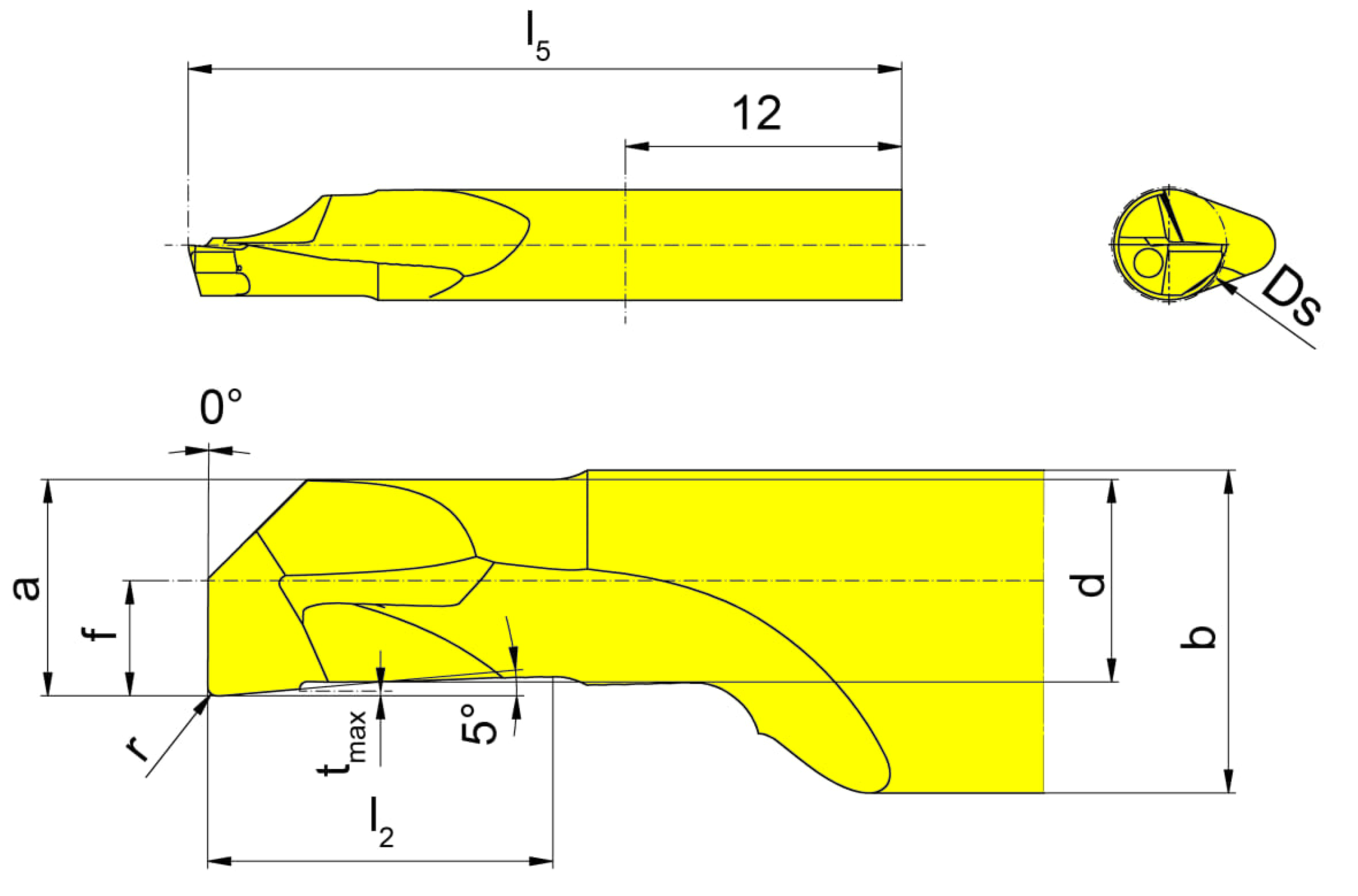

Top radius (r)
0.008
˝
0.2
mm
Smallest bore diameter (Ds)
0.276
˝
7
mm
Total length (l5)
1.417
˝
36
mm
Setting range radial (f)
0.138
˝
3.5
mm
Neck diameter (d)
0.22
˝
5.6
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
Width of blank (b)
0.276
˝
7
mm
Maximum depth of groove (tmax)
0.004
˝
0.1
mm
Head size (a)
0.232
˝
5.9
mm
Neck length (l2)
0.413
˝
10.5
mm
