R109.0010.4.6 TH35
insert
Material number R109001046TH35

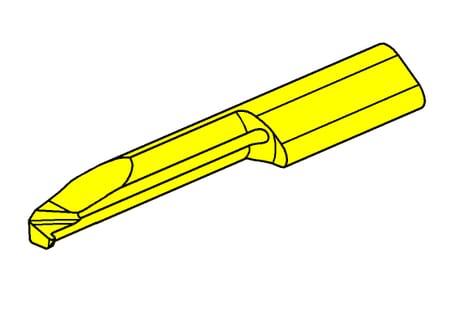

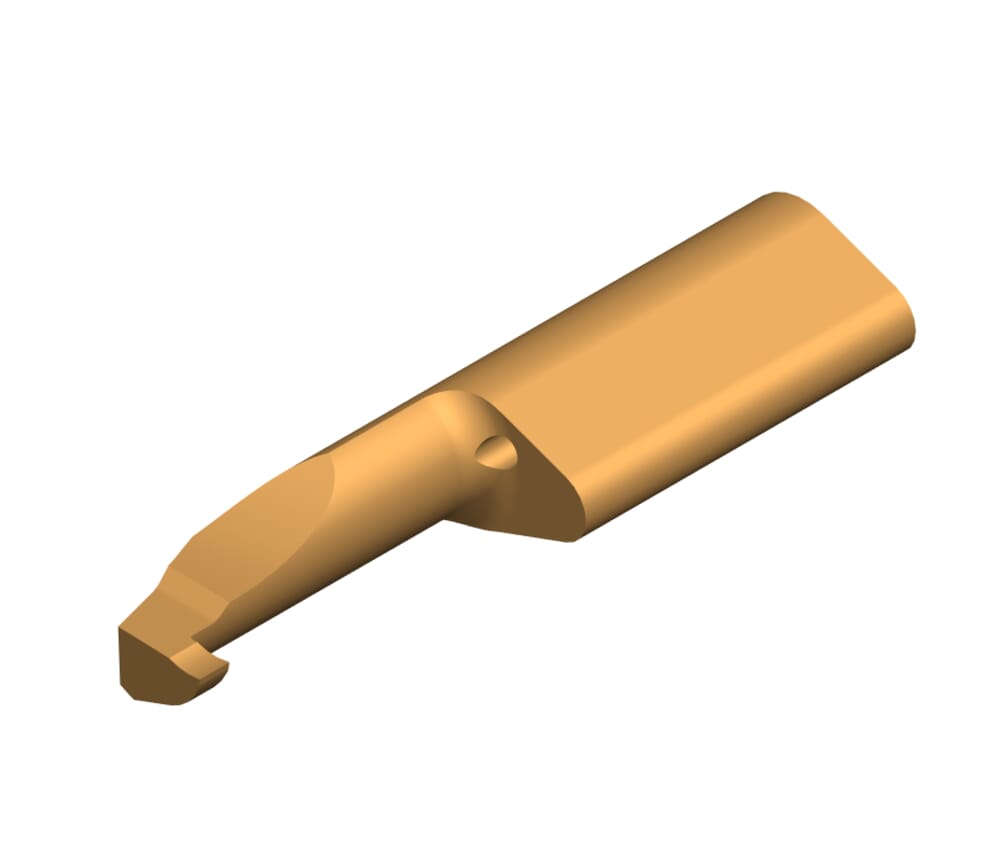

HORN insert R109.0010.4.6 TH35 for Turning
ISO_SSC
HORN109140$95N$$$$$

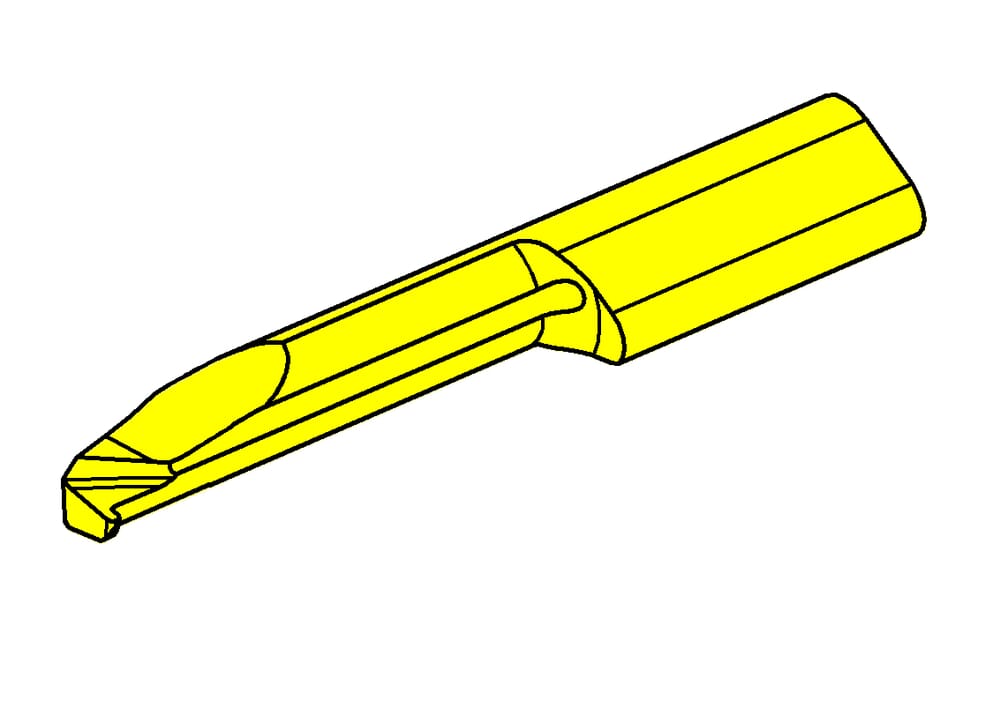

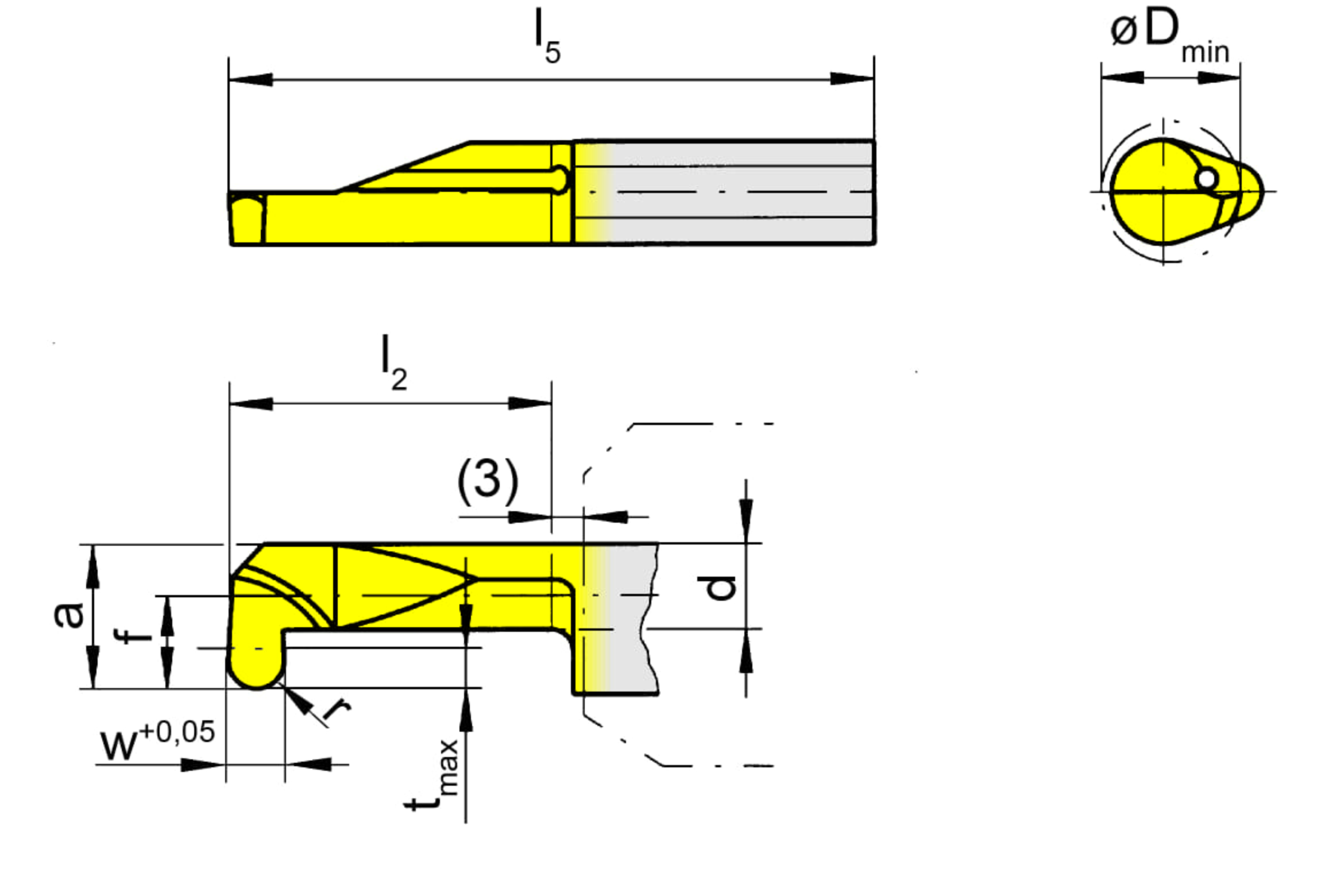

Smallest bore diameter (Dmin)
0.236
˝
6
mm
Total length (l5)
1.693
˝
43
mm
Setting range radial (f)
0.11
˝
2.8
mm
Neck diameter (d)
0.146
˝
3.7
mm
Width of groove (w)
0.079
˝
2
mm
Katalog_SSC
109140
DIN_SSC
HORN-10914095N
Full radius (r)
0.039
˝
1
mm
Maximum depth of groove (tmax)
0.071
˝
1.8
mm
Head size (a)
0.224
˝
5.7
mm
Neck length (l2)
0.984
˝
25
mm
| Downloads | |
|---|---|
| R109001046_20230113_181401476.STP | Download |
| R109001046_20211123_233259694.DXF | Download |
| Download all files | |
