R111.0070.00 TH35
insert
Material number R111007000TH35

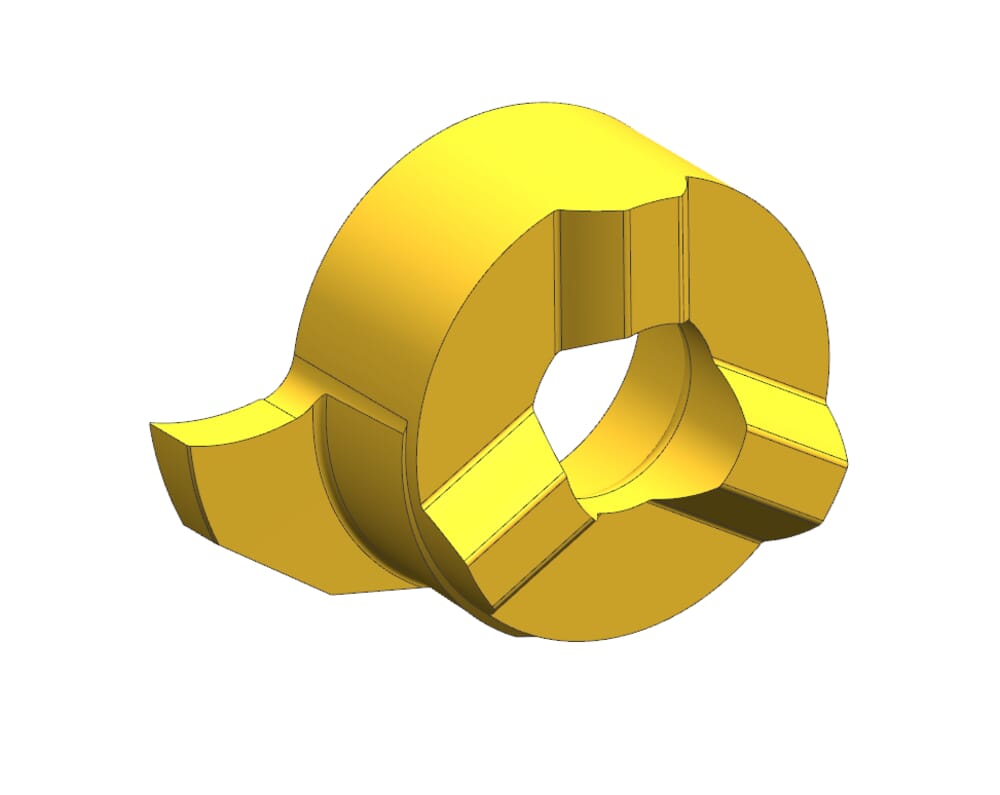

HORN insert R111.0070.00 TH35 for Turning
Maximum milling depth/ depth of groove (tmax)
0.047
˝
1.2
mm
Cutting insert thickness, setting length complete (s)
0.163
˝
4.15
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
0.156
˝
3.95
mm
Setting range radial (f)
0.264
˝
6.7
mm
Cutting insert width (a)
0.421
˝
10.7
mm
Tooth diameter, head diameter (d)
0.315
˝
8
mm
cutting-insert-height-met
0.163
˝
4.15
mm
Smallest bore diameter (Dmin)
0.433
˝
11
mm
Width of groove (w)
0.029
˝
0.74
mm
Nominal range (Nw)
0.028
˝
0.7
mm
depth-of-groove-max-imp
0.047
˝
1.2
mm
Cutting diameter (Ds)
0.528
˝
13.4
mm
head-size-met
0.421
˝
10.7
mm
distance-dimension-cutting-edge-met
3.95
mm
Distance-dimension-cutting-edge-imp
0.156
˝
ISO_SSC
HORN111080$84R$$$$$
DIN_SSC
HORN-11108084R
Katalog_SSC
111080R
| Downloads | |
|---|---|
| R111007000_20230113_202533613.STP | Download |
| R111007000.DXF | Download |
| Download all files | |
