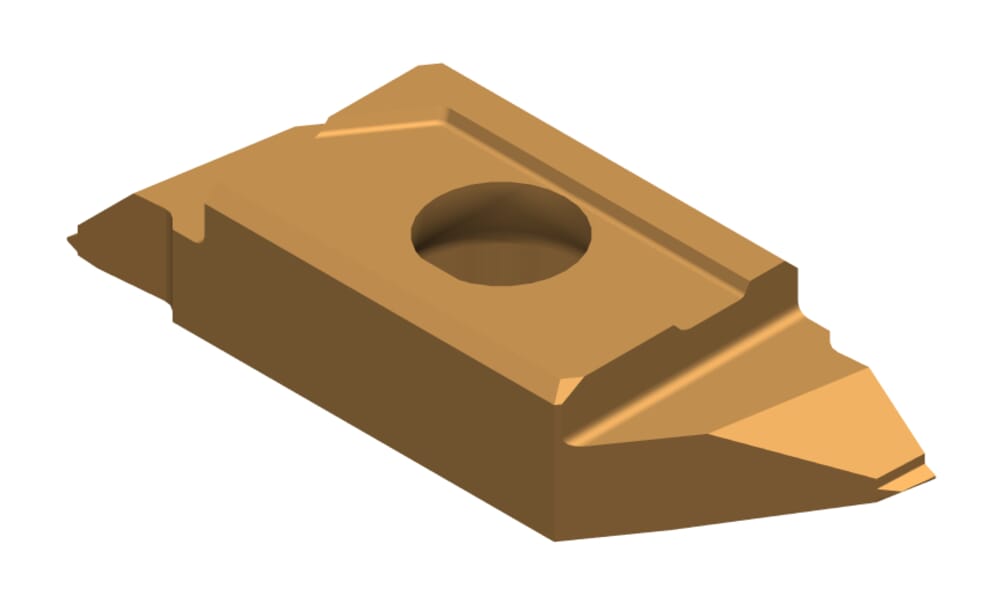

RS274.0305.03 TH35
Insert
Material number RS274030503TH35
HORN Insert RS274.0305.03 TH35 for Gewinden

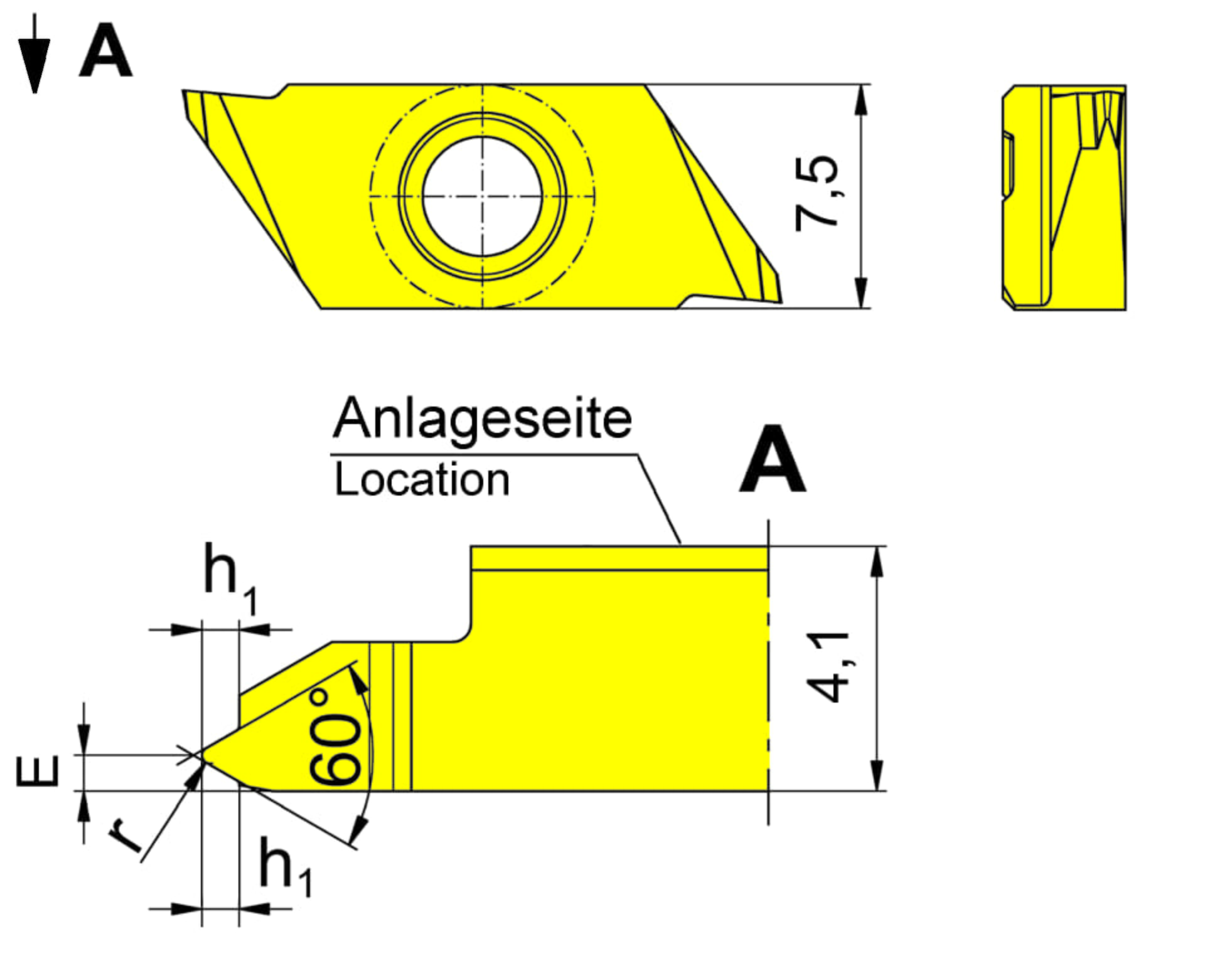

Top radius (r)
0.003
˝
0.07
mm
Profile, thread depth (h1)
0.012
˝
0.31
mm
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Setting length (E)
0.016
˝
0.4
mm
Pitch (P)
0.02
˝
0.5
mm
| Downloads | |
|---|---|
| RS274030503_20240116_173725014.STP | Download |
| RS274030503_20211124_201601584.DXF | Download |
| Download all files | |
