RU116.0125.00 MG12
Inserts
Material number RU116012500MG12
HORN Inserts RU116.0125.00 MG12 for Turning
milling-depth-groove-depth-max-met
0.169
˝
4.3
mm

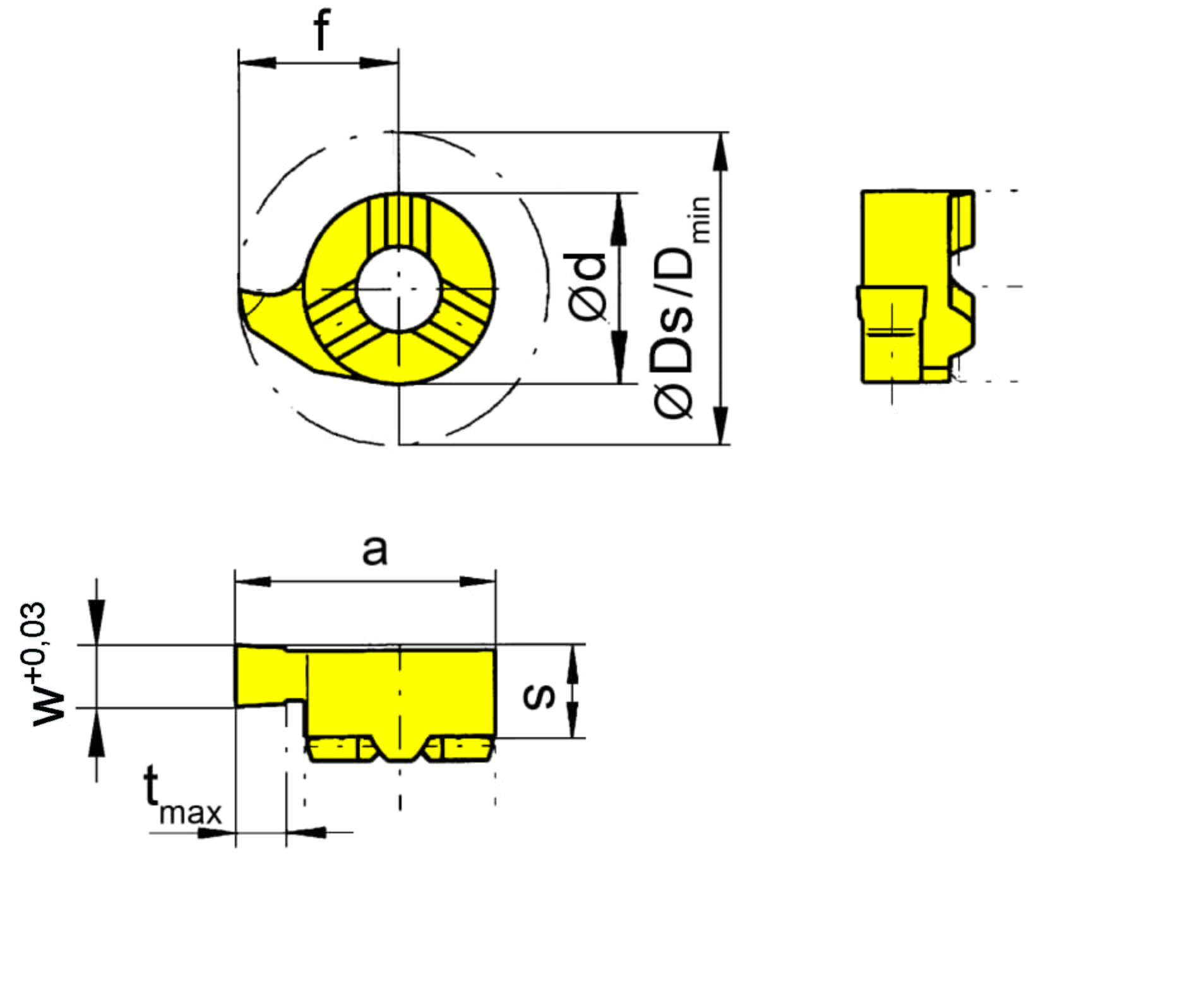

Number of teeth (Z)
1
St.
Smallest bore diameter (Dmin)
0.63
˝
16
mm
Cutting insert height, Cutting insert thickness (s)
0.209
˝
5.3
mm
Tooth diameter, head diameter (d)
0.433
˝
11
mm
cutting-insert-width-imp
0.618
˝
15.7
mm
Setting range radial (f)
0.402
˝
10.2
mm
cutting-insert-thickness-imp
0.209
˝
5.3
mm
Width of groove (w)
0.125
˝
3.18
mm
Katalog_SSC
116110R
DIN_SSC
HORN-11611084R
ISO_SSC
HORN116110$84R$$$$$
Maximum depth of groove (tmax)
0.169
˝
4.3
mm
Head size (a)
0.618
˝
15.7
mm
Cutting diameter (Ds)
0.803
˝
20.4
mm
| Downloads | |
|---|---|
| RU116012500.STP | Download |
| Download all files | |
