LH274.1212.6.04.M
Toolholder
Material number LH2741212604M

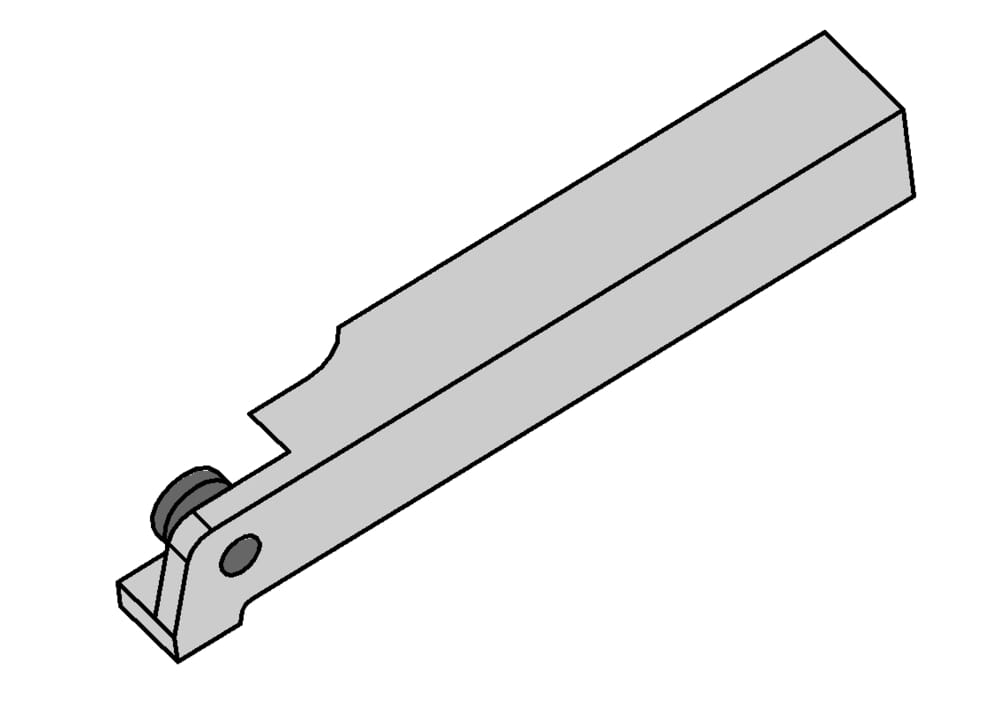

HORN Toolholder LH274.1212.6.04.M for Turning
Total length (including cutting insert) (l1)
3.937
˝
100
mm
ISO_CCTMS
VKT01A1212$$$$
DIN_CCTMS
VKT12120105
Katalog_CCTWS
274040L
DIN_CCTWS
HORN-274040000L
ISO_CCTWS
HORN274040000L$$$$$

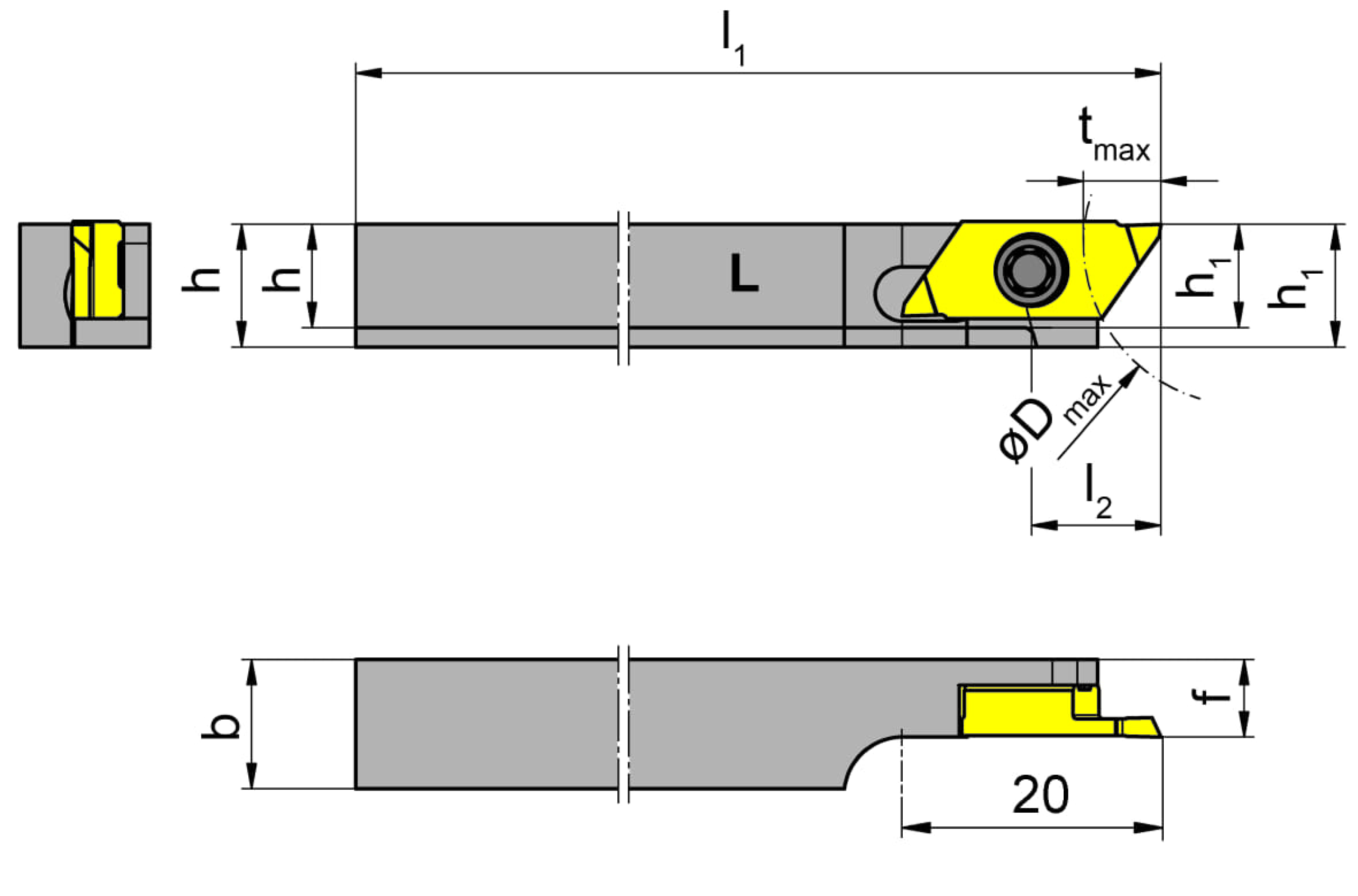

Head length (including cutting edge) (l2)
0.394
˝
10
mm
Peak height (h1)
0.374
˝
9.5
mm
Maximum workpiece diameter (Dmax)
0.984
˝
25
mm
Maximum insertion depth (tmax)
0.236
˝
6
mm
length-overall-imp
3.937
˝
100
mm
Shank height (h)
0.472
˝
12
mm
Adjustment dimension (f)
0.236
˝
6
mm
Shank width (b)
0.472
˝
12
mm
