L220.2525.2.K1.IK
base support
Material number L22025252K1IK

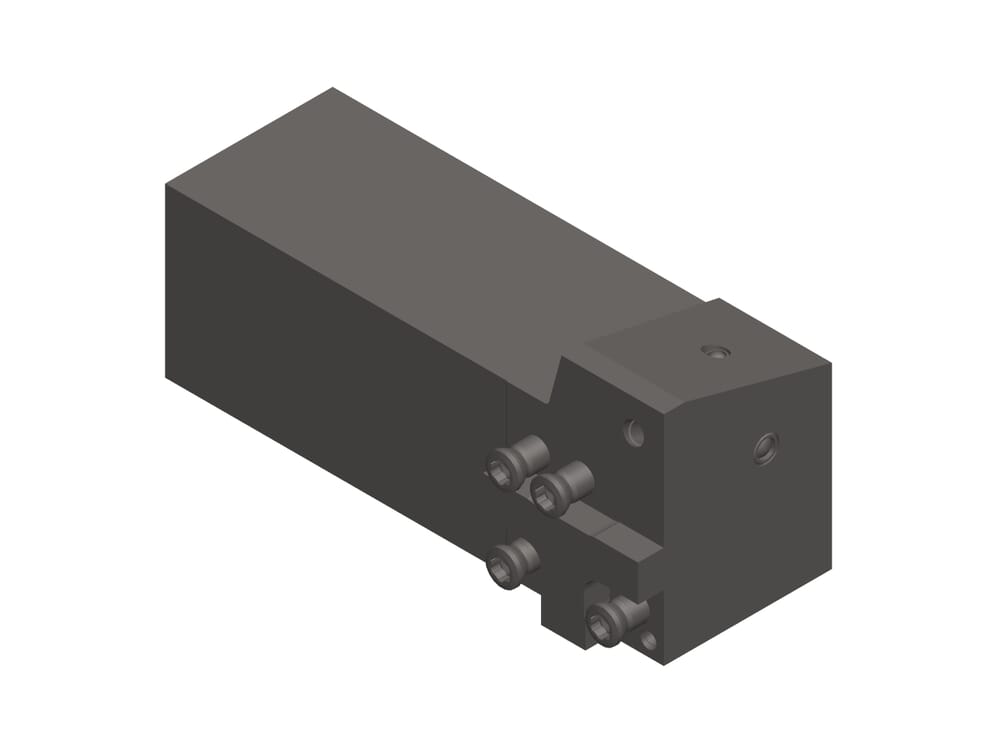

HORN base support L220.2525.2.K1.IK for Turning

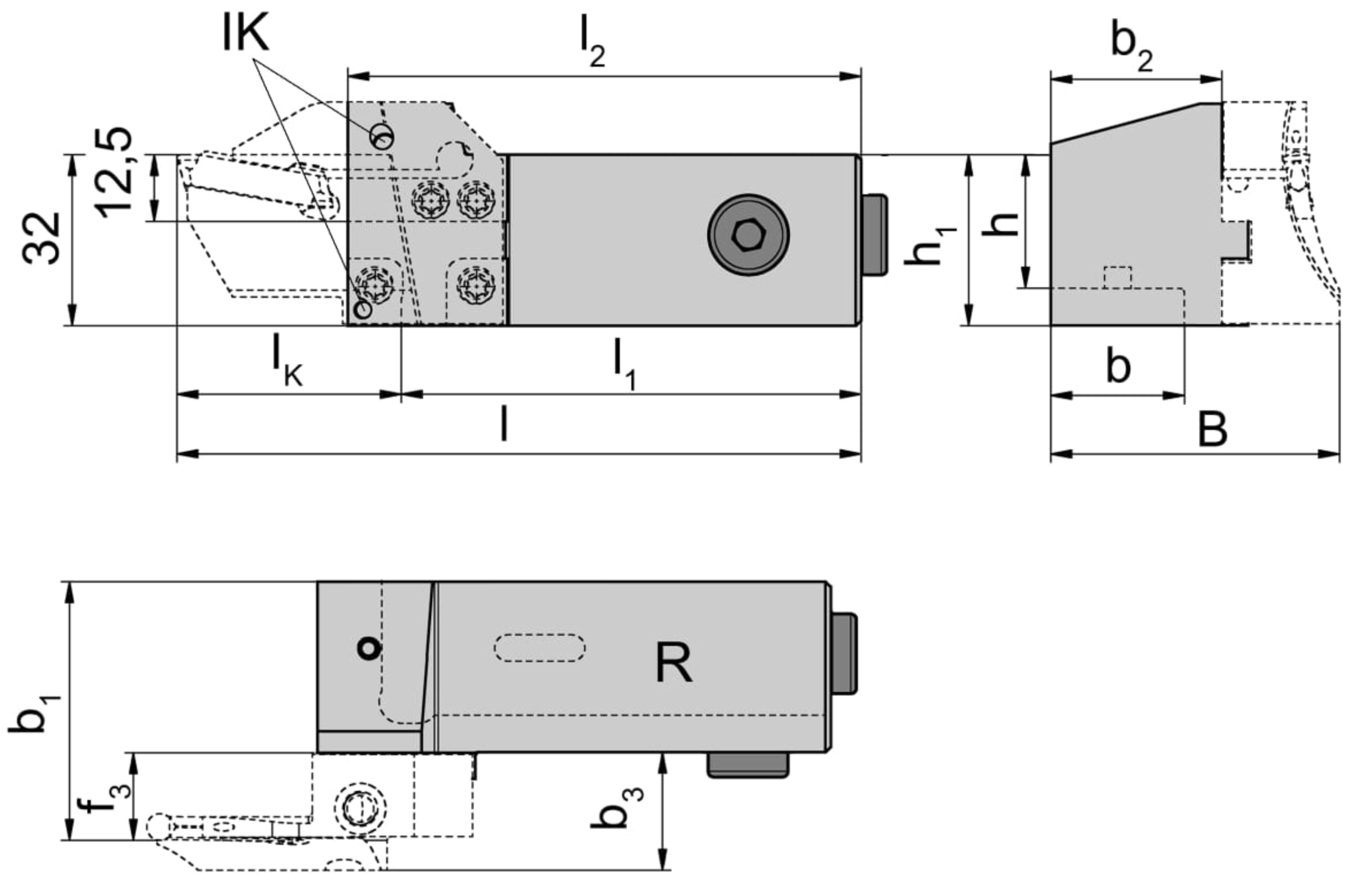

Shank width (b2)
1.26
˝
32
mm
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
220002
DIN_CCTWS
HORN-22000293;HORN-22000283
ISO_CCTWS
HORN22000293$$;HORN22000283$$
Peak height (h1)
1.26
˝
32
mm
Head length stop (b)
0.984
˝
25
mm
Shank height (h)
0.984
˝
25
mm
Shank length (l2)
3.78
˝
96
mm
| Downloads | |
|---|---|
| L22025252K1IK_20210628_001141574.DXF | Download |
| L22025252K1IK_20210630_115507085.STP | Download |
| Download all files | |
