DSFF.HM.10.06.12.90 HD05

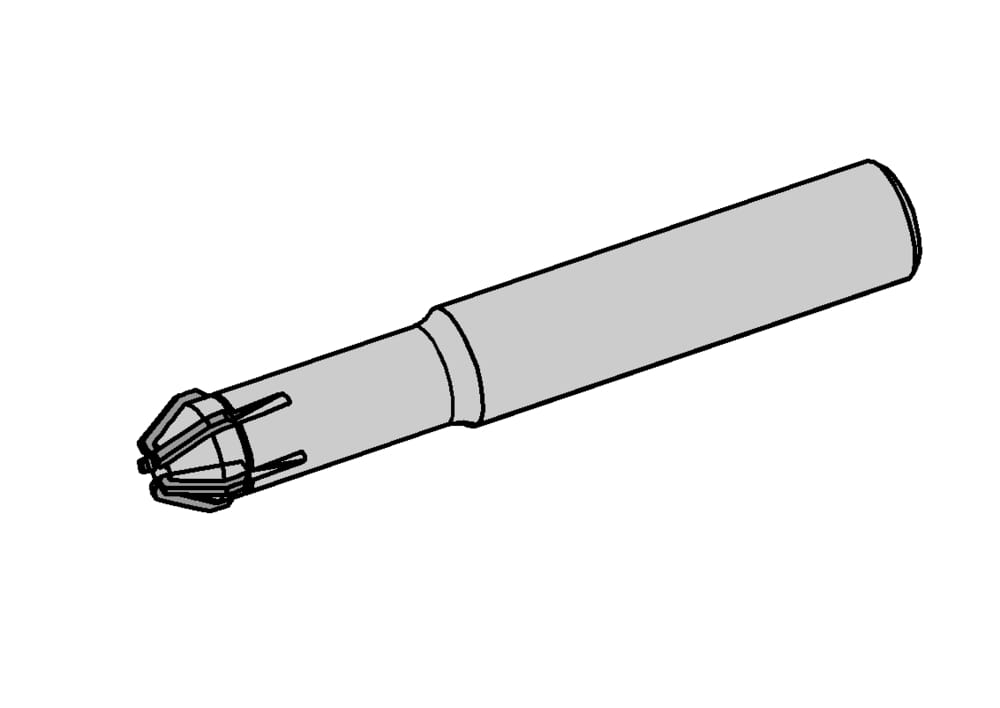

"CVD-d tipped endmill
Material number DSFFHM10061290HD05
HORN "CVD-d tipped endmill DSFF.HM.10.06.12.90 HD05 for Milling

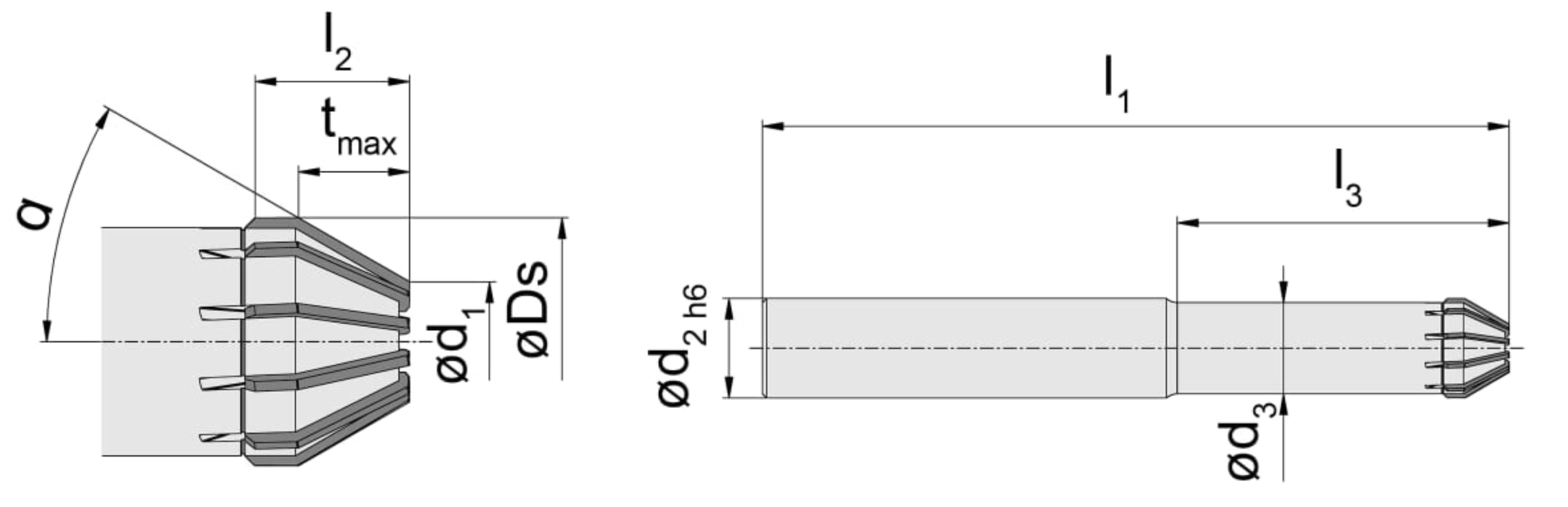

Maximum cutting circle diameter (Ds)
0.472
˝
12
mm
Maximum milling depth (tmax)
0.118
˝
3
mm
Total length (l1)
3.543
˝
90
mm
Effective cutting length (l2)
0.177
˝
4.5
mm
Neck diameter (d3)
0.433
˝
11
mm
DIN_SSC
ZYL01200105
ISO_SSC
ZYL01G1200h$06
Cutting diameter (d1)
0.236
˝
6
mm
Neck length (l3)
1.575
˝
40
mm
Shank diameter (d2)
0.472
˝
12
mm
