M308.0012.02A
Toolholders
Material number M308001202A

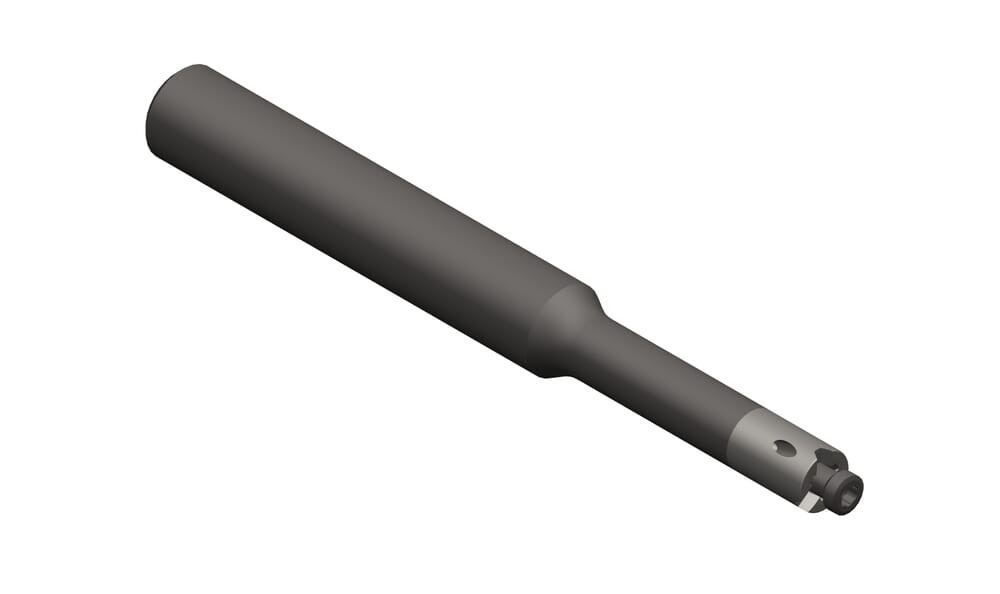

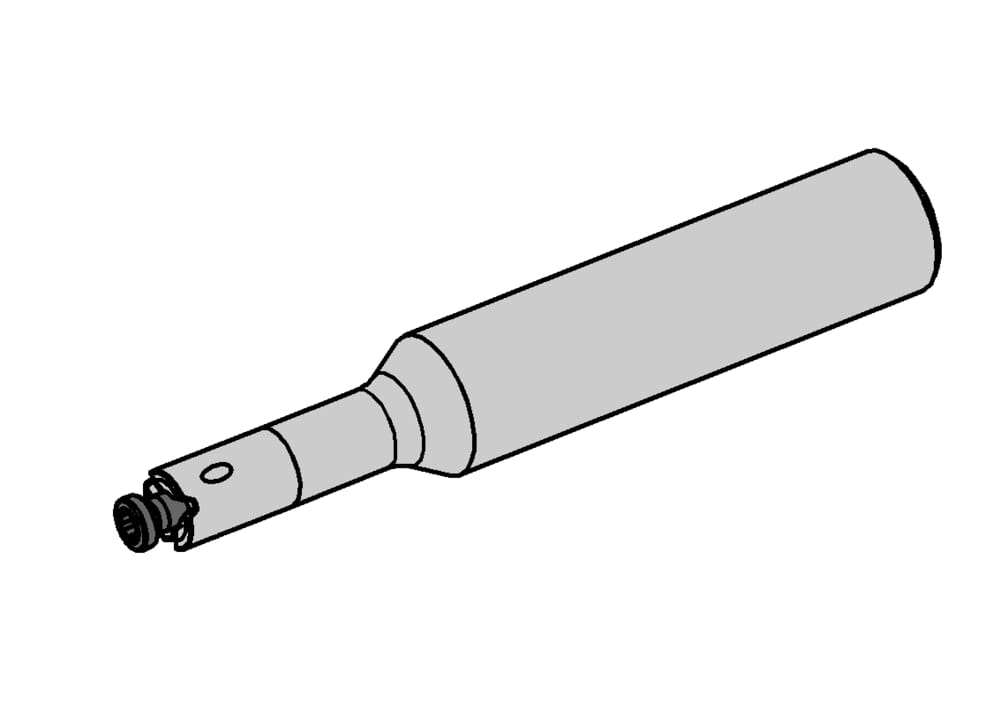

HORN Toolholders M308.0012.02A for Milling
DIN_CCTMS
ZYL01200115
Working length, Neck length, Extension length (l2)
1.654
˝
42
mm
Total length insert (l1)
4.331
˝
110
mm
Neck diameter (d1)
0.315
˝
8
mm
ISO_CCTMS
ZYL01G1200h$06
Katalog_CCTWS
308080R;308080L
DIN_CCTWS
HORN30808084R;HORN30808084L
ISO_CCTWS
HORN308080$84R$$$$$;HORN308080$84L$$$$$
Shank diameter (d)
0.472
˝
12
mm
| Downloads | |
|---|---|
| M308001202A_20210628_163603133.DXF | Download |
| M308_0012_02A_20171121_181022451.STP | Download |
| Download all files | |
