308.0130.40 TI25
Insert
Material number 308013040TI25

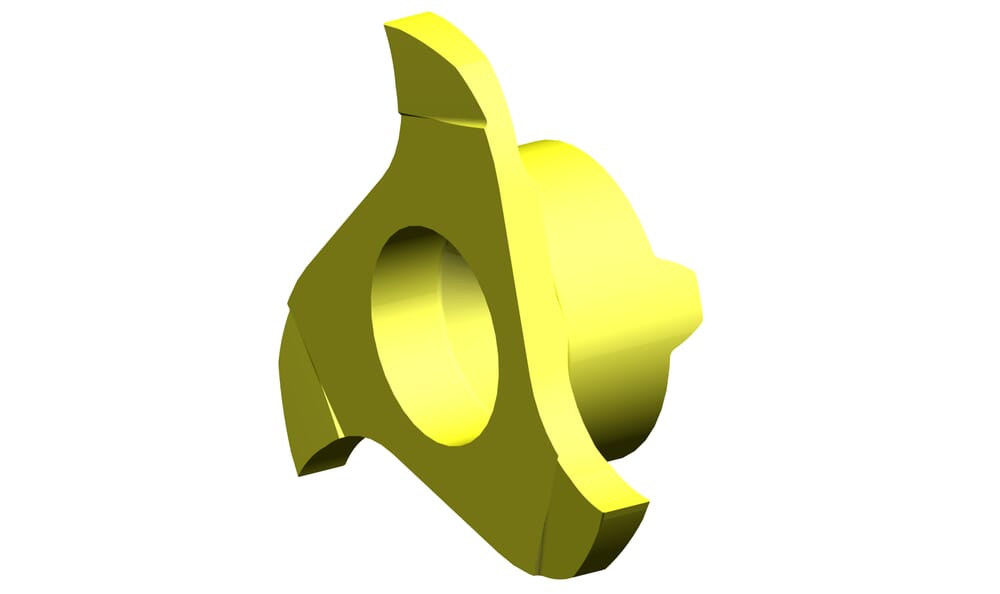

HORN Insert 308.0130.40 TI25 for Milling
Cutting diameter (Ds)
0.618
˝
15.7
mm
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
Width of groove (w)
0.056
˝
1.41
mm
Maximum milling depth/ depth of groove (tmax)
0.138
˝
3.5
mm
Nominal range (Nw)
0.051
˝
1.3
mm
Cutting insert thickness, setting length complete (s)
0.177
˝
4.5
mm
| Downloads | |
|---|---|
| 308013040_20230112_141029688.STP | Download |
| 308013040_20210629_103541316.DXF | Download |
| Download all files | |
