311.0150.40 TI25
Inserts
Material number 311015040TI25

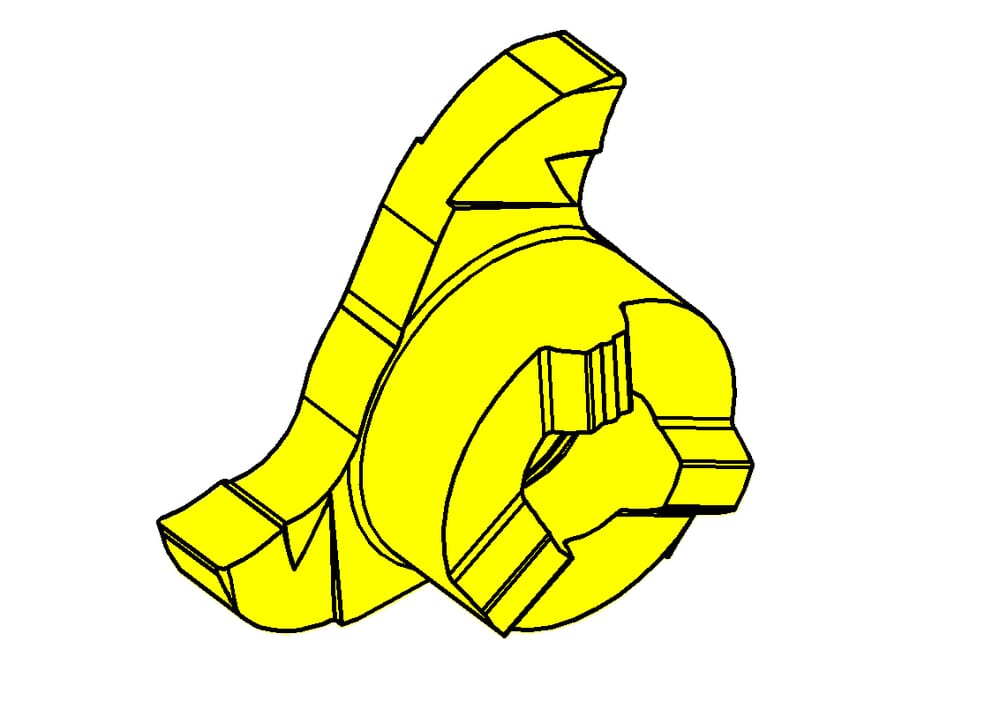

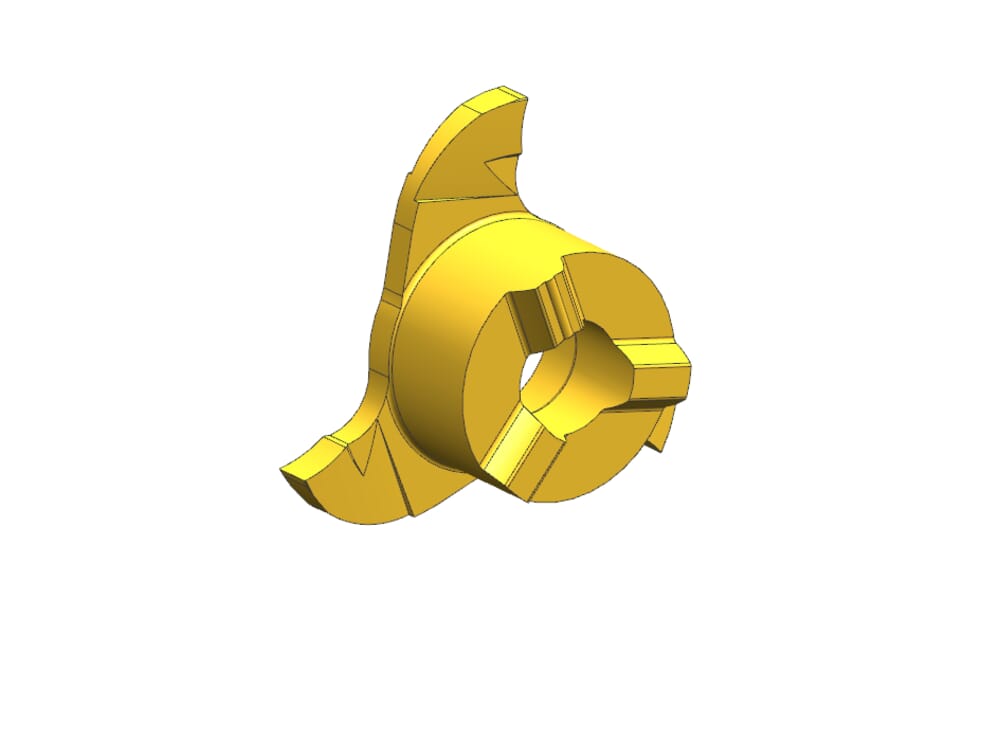

HORN Inserts 311.0150.40 TI25 for Milling

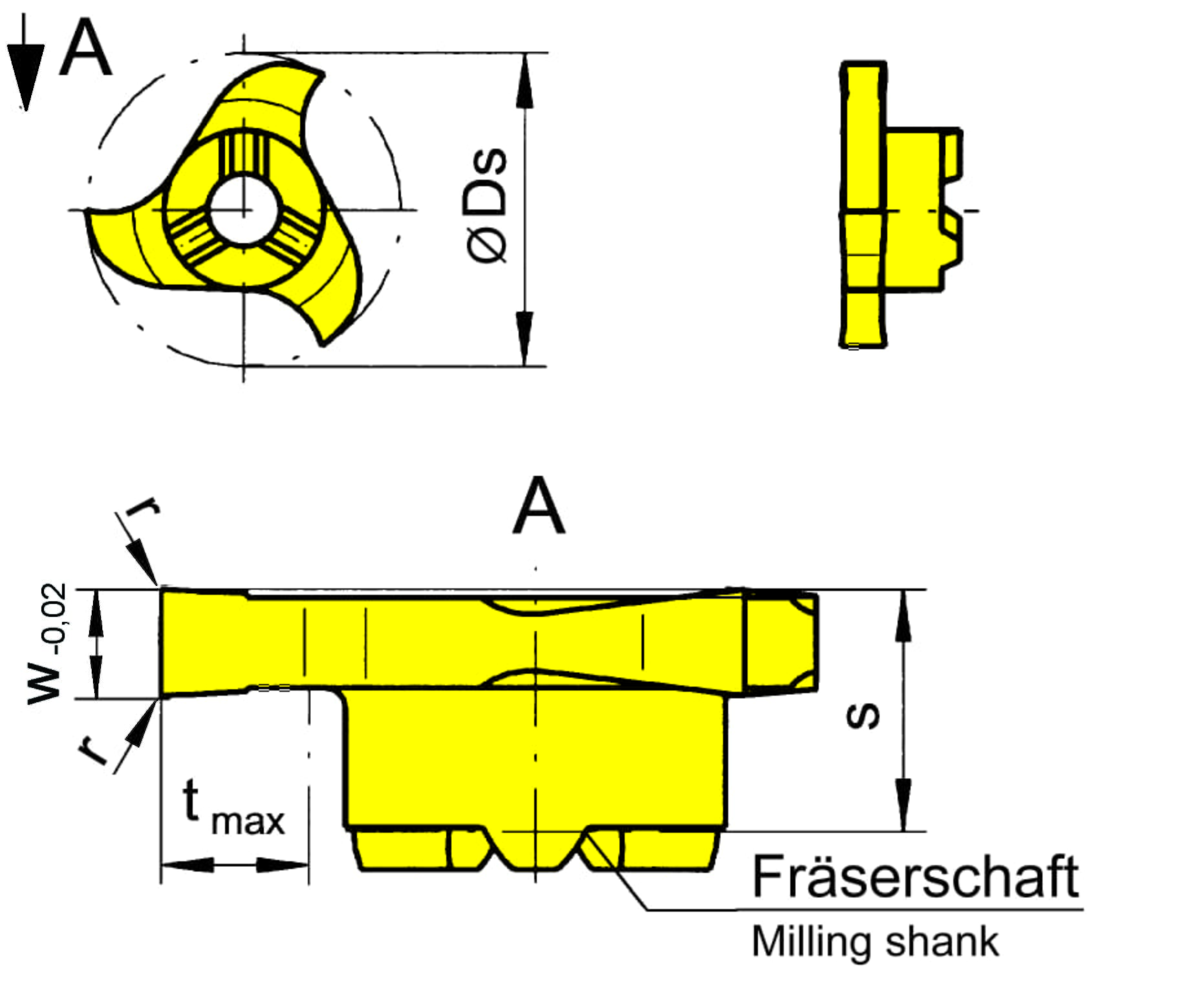

Cutting diameter (Ds)
0.697
˝
17.7
mm
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Width of groove (w)
0.059
˝
1.5
mm
Maximum milling depth/ depth of groove (tmax)
0.138
˝
3.5
mm
Cutting insert thickness, setting length complete (s)
0.226
˝
5.75
mm
| Downloads | |
|---|---|
| 311015040_20240118_091529051.STP | Download |
| 311015040_20210625_153717468.DXF | Download |
| Download all files | |
