311.0250.00 AS45
insert
Material number 311025000AS45

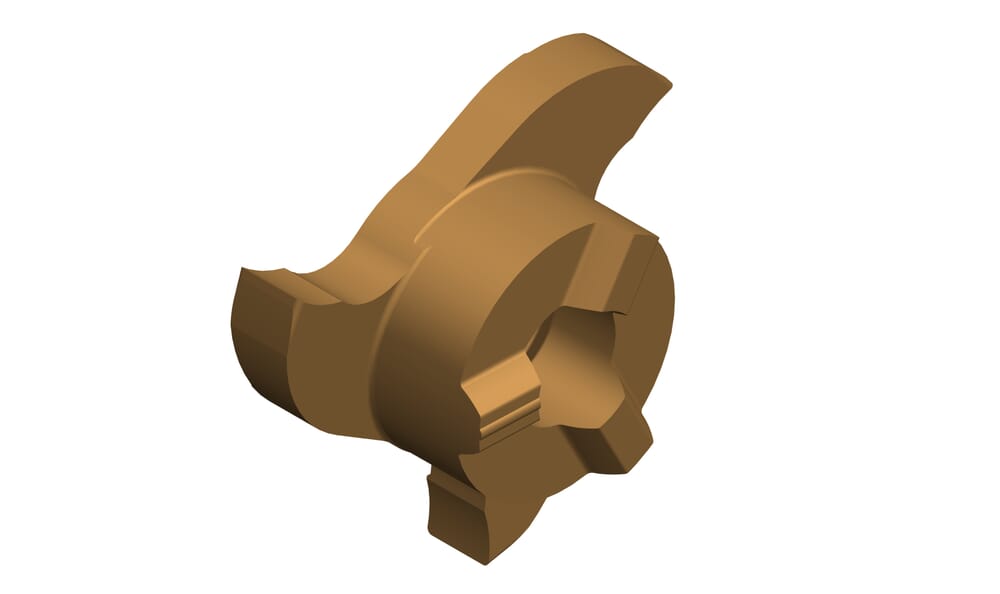

HORN insert 311.0250.00 AS45 for Milling
Cutting diameter (Ds)
0.697
˝
17.7
mm
Corner radius (r)
0.008
˝
0.2
mm
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Width of groove (w)
0.098
˝
2.5
mm
Maximum milling depth/ depth of groove (tmax)
0.138
˝
3.5
mm
Cutting insert thickness, setting length complete (s)
0.226
˝
5.75
mm
| Downloads | |
|---|---|
| 311025000_20230112_134759981.STP | Download |
| 311025000_20210626_064548539.DXF | Download |
| Download all files | |
