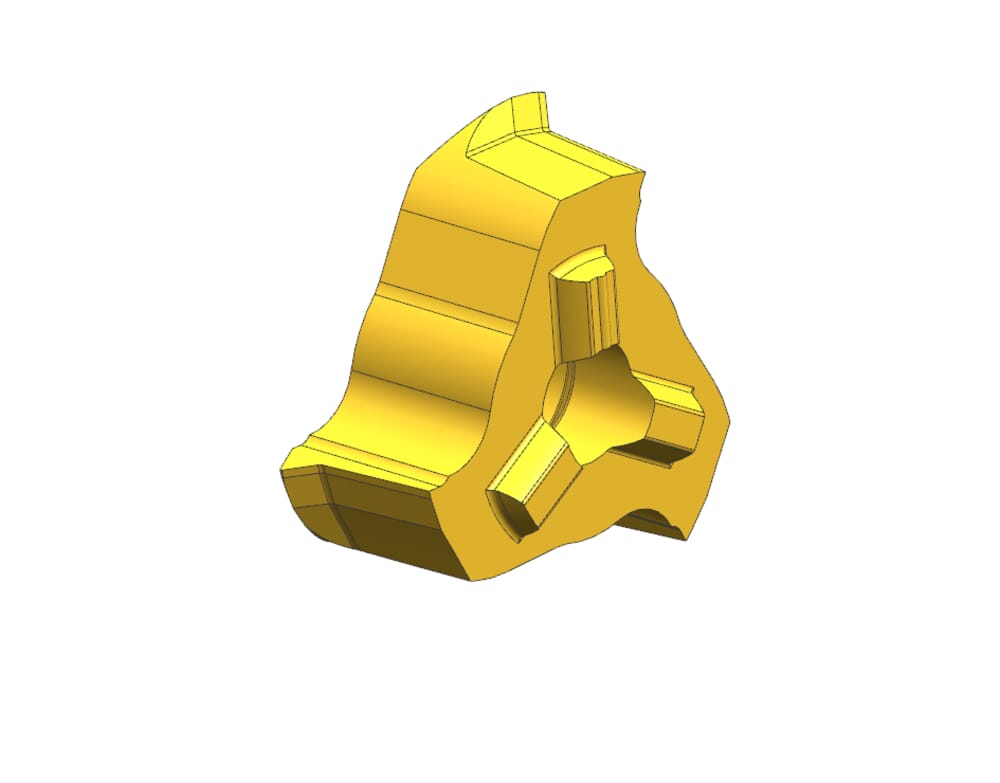

311.0510.01 TN35
Inserts
Material number 311051001TN35
HORN Inserts 311.0510.01 TN35 for Gewinden
Cutting diameter (Ds)
0.697
˝
17.7
mm
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Setting length (E)
0.197
˝
5
mm
Cutting insert height, Cutting insert thickness (s)
0.234
˝
5.95
mm
Pitch (P)
0.039
˝
1
mm
Maximum pitch (Pmax)
0.039
˝
1
mm
| Downloads | |
|---|---|
| 311051001_20230112_141404884.STP | Download |
| 311051001_20210626_222700065.DXF | Download |
| Download all files | |
