311.1020.01 AS45
insert
Material number 311102001AS45

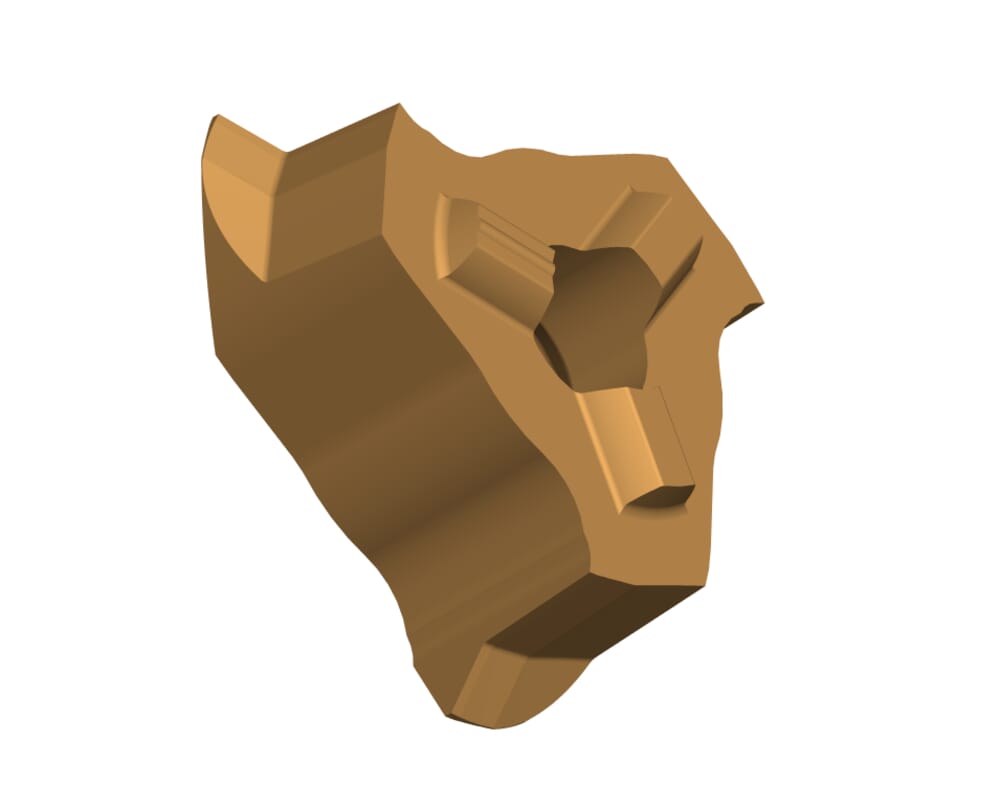

HORN insert 311.1020.01 AS45 for Gewinden
Cutting diameter (Ds)
0.697
˝
17.7
mm
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Setting length (E)
0.181
˝
4.6
mm
Cutting insert height, Cutting insert thickness (s)
0.234
˝
5.95
mm
Pitch (P)
0.079
˝
2
mm
Maximum pitch (Pmax)
0.079
˝
2
mm
| Downloads | |
|---|---|
| 311102001_20210626_143326228.DXF | Download |
| Download all files | |
