335.0400.00 TI25
Insert
Material number 335040000TI25

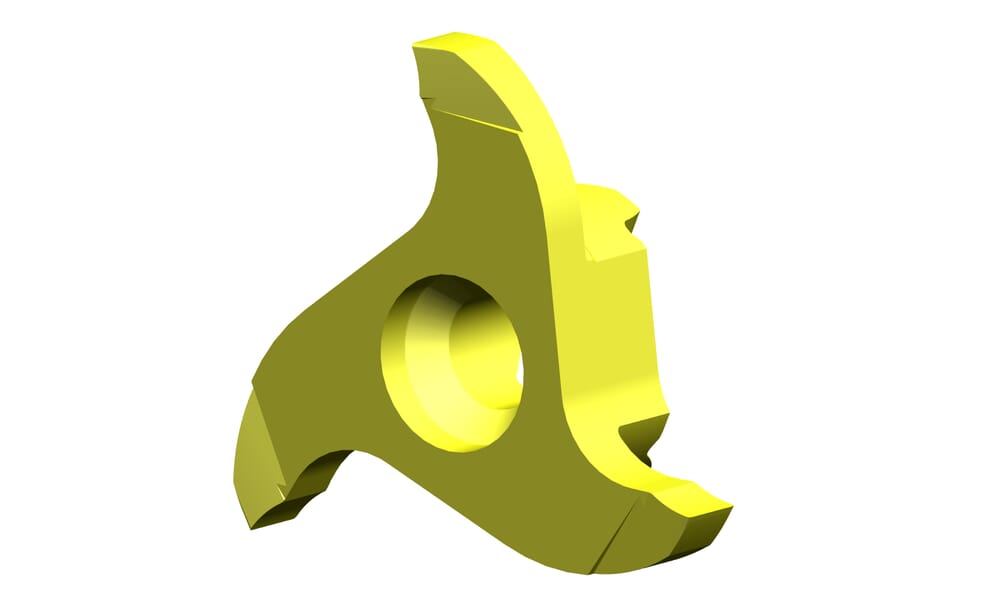

HORN Insert 335.0400.00 TI25 for Milling
Cutting diameter (Ds)
1.366
˝
34.7
mm
Corner radius (r)
0.008
˝
0.2
mm
ISO_SSC
HORN335175$84R$$$$$
DIN_SSC
HORN33517584R
Katalog_SSC
335175R
Width of groove (a)
0.157
˝
4
mm
Maximum milling depth/ depth of groove (tmax)
0.315
˝
8
mm
Cutting insert thickness, setting length complete (s)
0.343
˝
8.7
mm
| Downloads | |
|---|---|
| 335040000_20210630_105648429.STP | Download |
| 335040000_20210629_105833412.DXF | Download |
| Download all files | |
