335.0500.00 AS45
Insert
Material number 335050000AS45

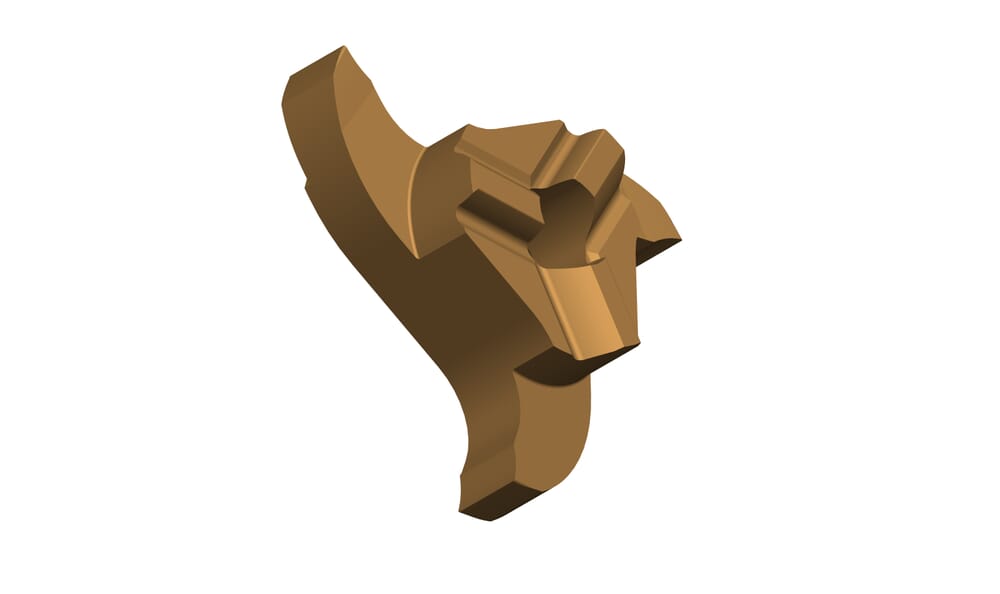

HORN Insert 335.0500.00 AS45 for Milling
Cutting diameter (Ds)
1.366
˝
34.7
mm
Corner radius (r)
0.008
˝
0.2
mm
ISO_SSC
HORN335175$84R$$$$$
DIN_SSC
HORN33517584R
Katalog_SSC
335175R
Width of groove (a)
0.197
˝
5
mm
Maximum milling depth/ depth of groove (tmax)
0.315
˝
8
mm
Cutting insert thickness, setting length complete (s)
0.343
˝
8.7
mm
Downloads | |
---|---|
335050000_20210630_114118847.STP | Download |
335050000_20210629_105844537.DXF | Download |
Download all files |
