383.0200.40.06

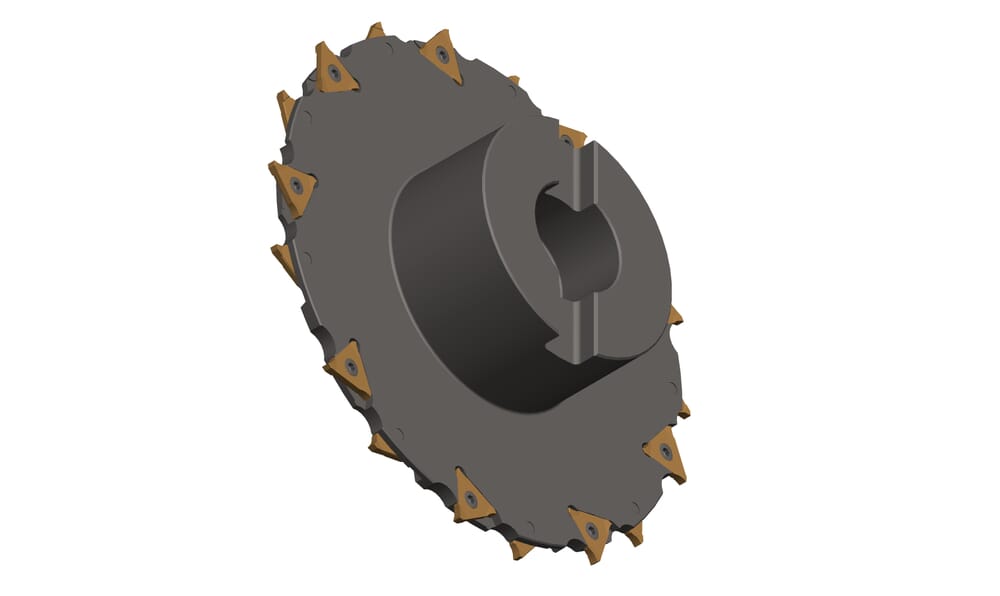

Disk milling cutter
Material number 38302004006
HORN Disk milling cutter 383.0200.40.06 for Milling
Cutting diameter (Ds)
7.874
˝
200
mm
ISO_CCTWS
HORN314027101R$$$$$;HORN314027101L$$$$$
DIN_CCTWS
HORN-314027101R;HORN-314027101L
Katalog_CCTWS
314027R;314027L
DIN_CCTMS
FDA04000100
ISO_CCTMS
FDA01G4000$$$$
Maximum milling depth (tmax)
2.126
˝
54
mm
Miller length with indexable insert (h)
1.969
˝
50
mm
Cutting width maximum (w)
0.236
˝
6
mm
Diameter facing system for disk cutters (d3)
1.575
˝
40
mm
Diameter of the mandrel (d2)
3.543
˝
90
mm
| Downloads | |
|---|---|
| 383_0200_40_06_20180321_143958167.STP | Download |
| 383_0200_40_06_20180321_143954245.DXF | Download |
| Download all files | |
