608.0250.00 TI25
Insert
Material number 608025000TI25

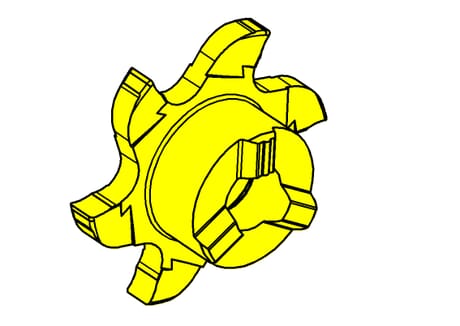

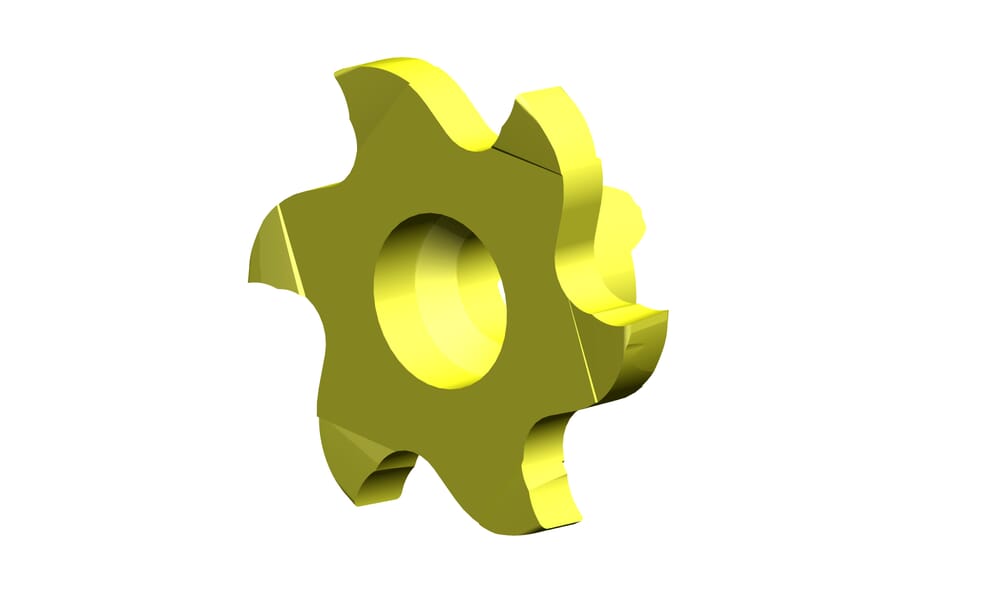

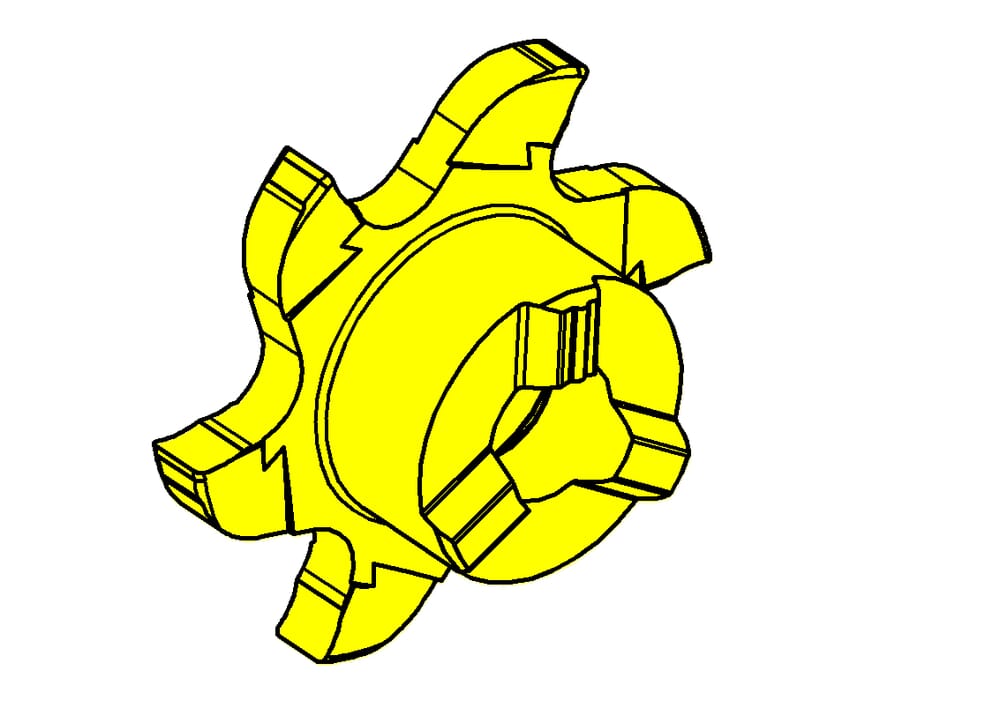

HORN Insert 608.0250.00 TI25 for Milling

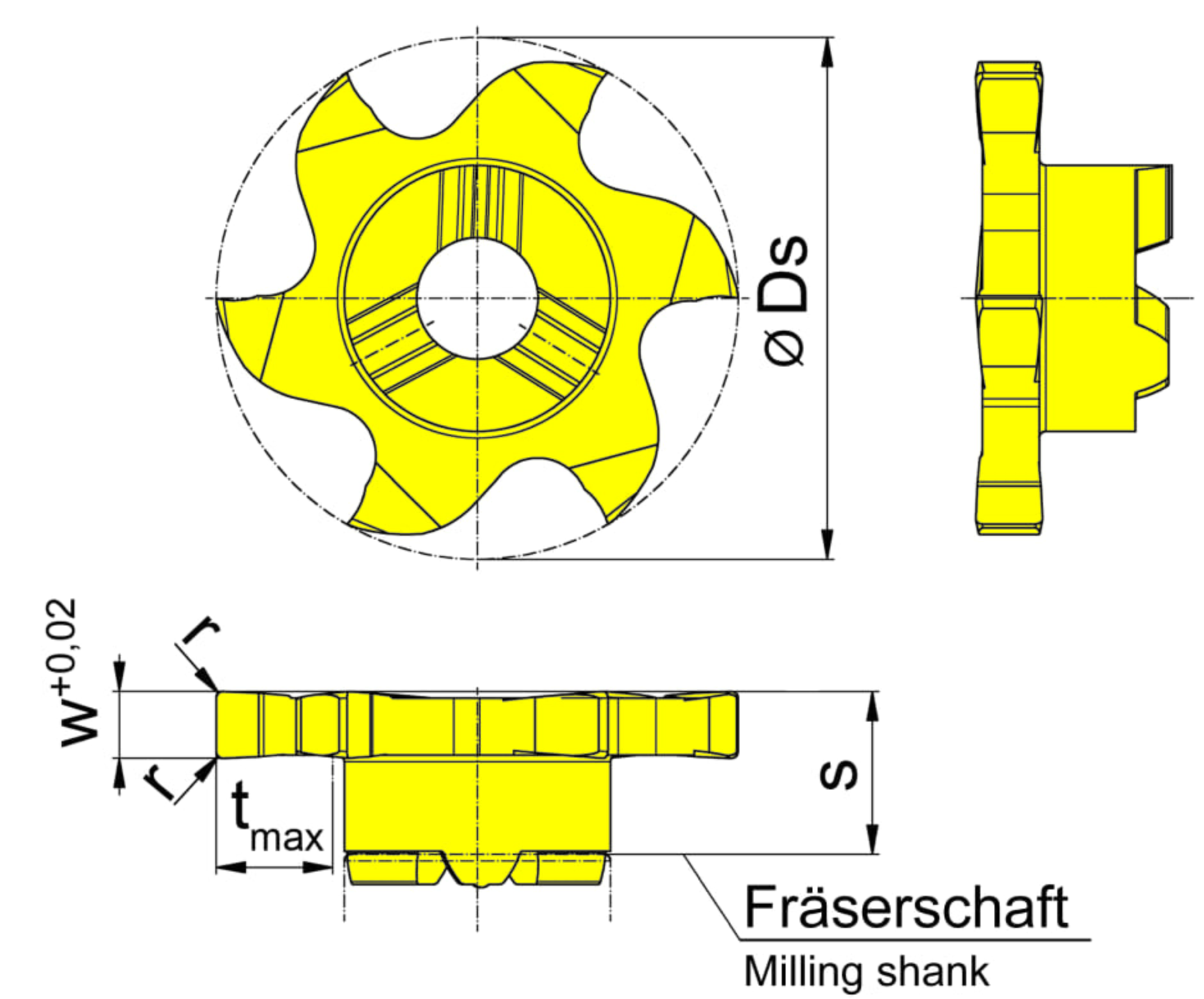

Cutting diameter (Ds)
0.618
˝
15.7
mm
Corner radius (r)
0.008
˝
0.2
mm
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
Width of groove (w)
0.098
˝
2.5
mm
Maximum milling depth/ depth of groove (tmax)
0.138
˝
3.5
mm
Cutting insert thickness, setting length complete (s)
0.193
˝
4.9
mm
| Downloads | |
|---|---|
| 608025000_20240117_053408892.STP | Download |
| 608025000_20240205_170056288.DXF | Download |
| Download all files | |
