613.0300.00 EG55
Insert
Material number 613030000EG55

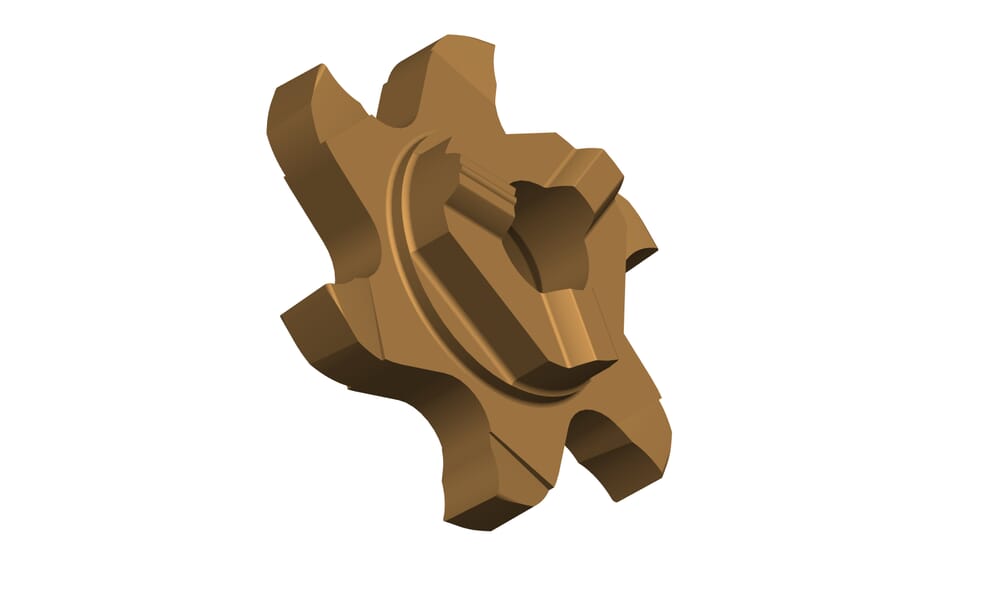

HORN Insert 613.0300.00 EG55 for Milling

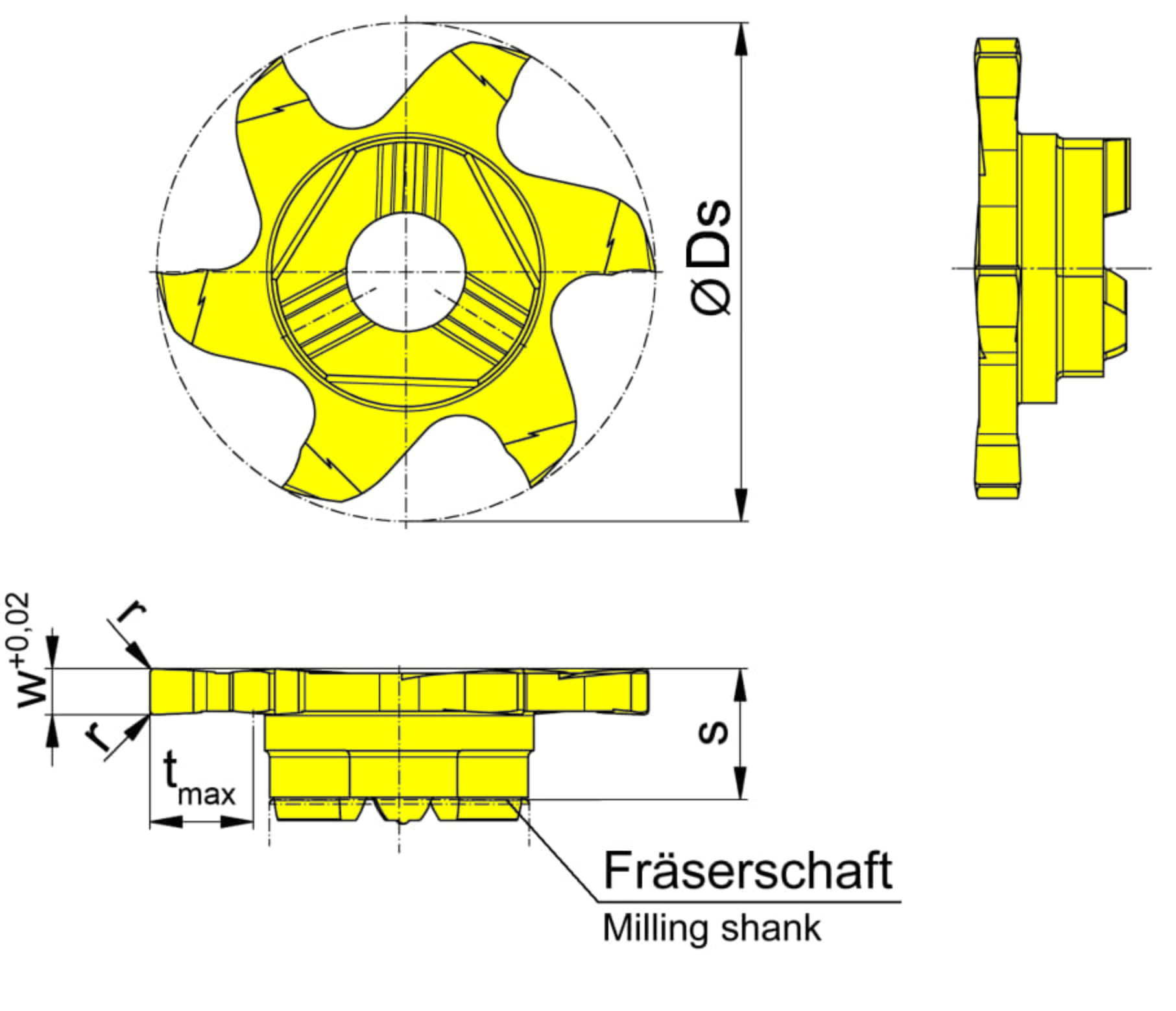

Cutting diameter (Ds)
0.854
˝
21.7
mm
Corner radius (r)
0.008
˝
0.2
mm
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Width of groove (w)
0.118
˝
3
mm
Maximum milling depth/ depth of groove (tmax)
0.177
˝
4.5
mm
Cutting insert thickness, setting length complete (s)
0.224
˝
5.7
mm
| Downloads | |
|---|---|
| 613030000_20210625_160257756.DXF | Download |
| Download all files | |
