613.2115.35 AS45
Insert
Material number 613211535AS45

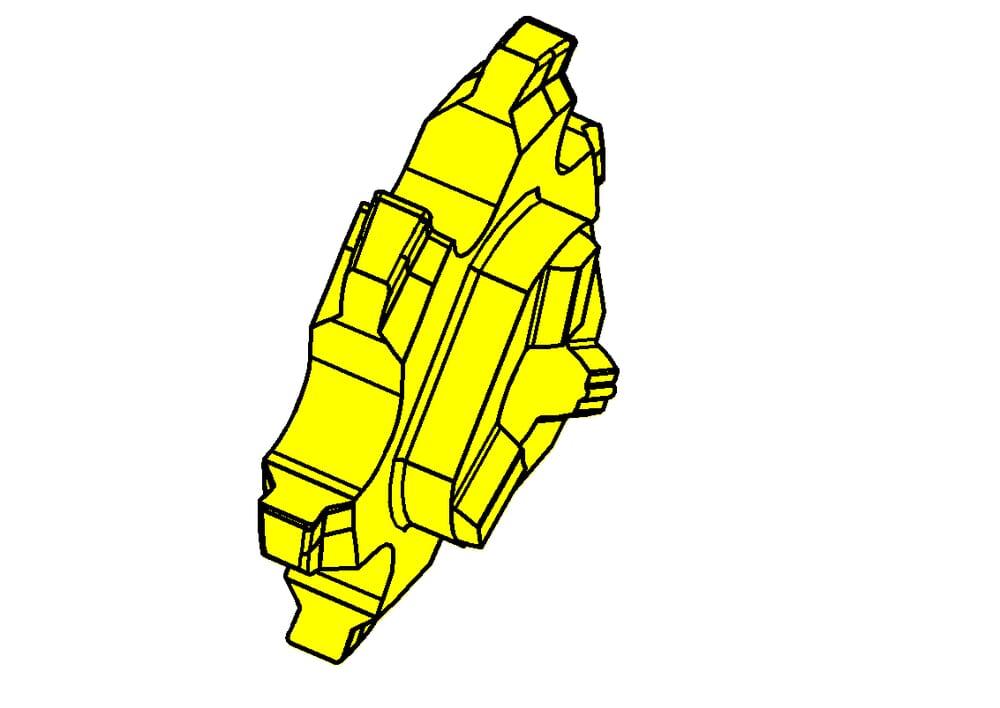

HORN Insert 613.2115.35 AS45 for Milling

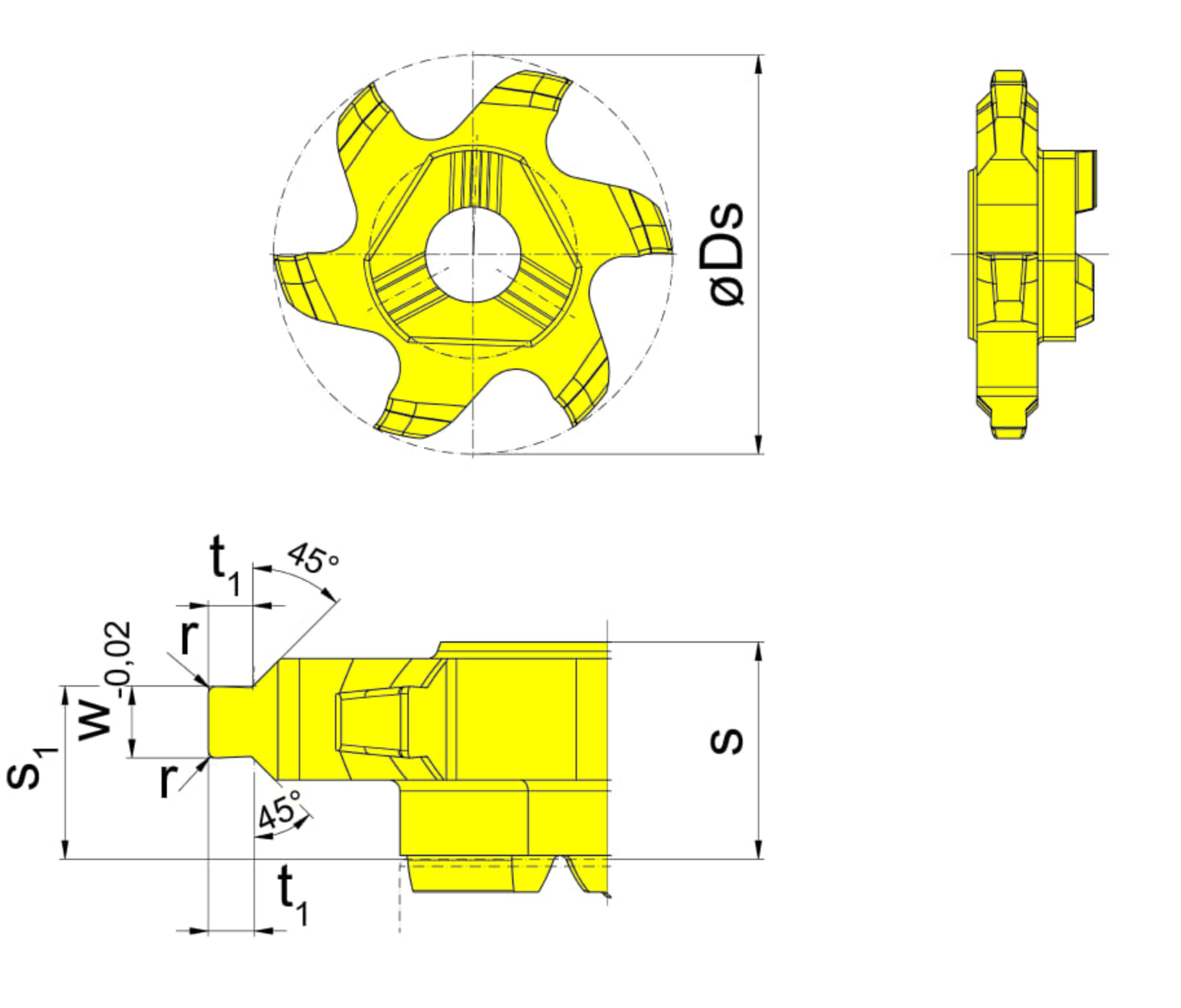

Cutting diameter (Ds)
0.854
˝
21.7
mm
Corner radius (r)
0.008
˝
0.2
mm
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Width of groove (w)
0.089
˝
2.26
mm
Maximum milling depth/ depth of groove (tmax)
0.059
˝
1.5
mm
Milling depth without NAKF (t1)
0.057
˝
1.45
mm
Nominal range (Nw)
0.085
˝
2.15
mm
Cutting insert thickness, setting length complete (s)
0.232
˝
5.9
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
0.193
˝
4.9
mm
| Downloads | |
|---|---|
| 613211535_20230112_144012062.STP | Download |
| 613211535.DXF | Download |
| Download all files | |
