628.0160.00 TI25
Inserts
Material number 628016000TI25

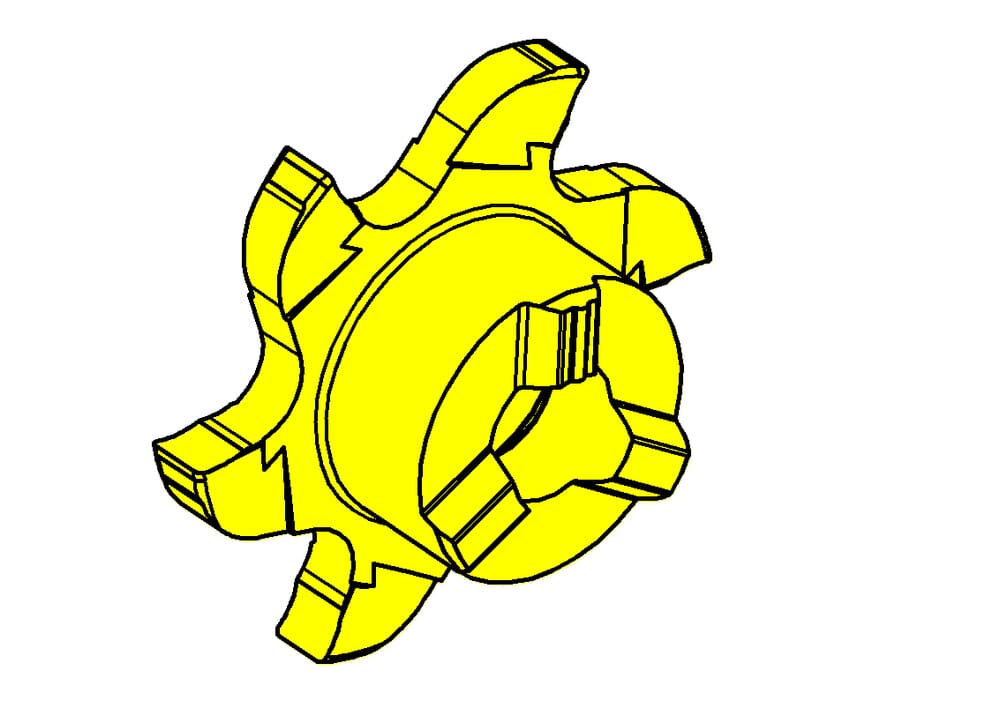

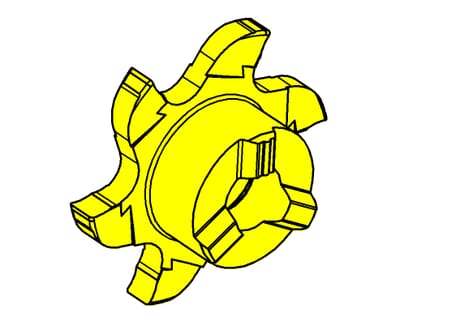

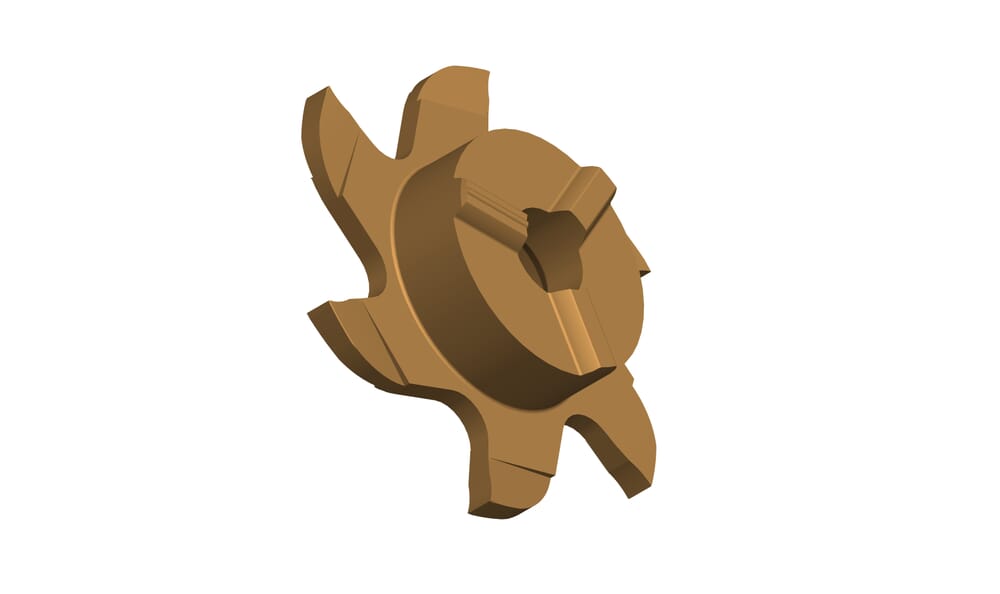

HORN Inserts 628.0160.00 TI25 for Milling

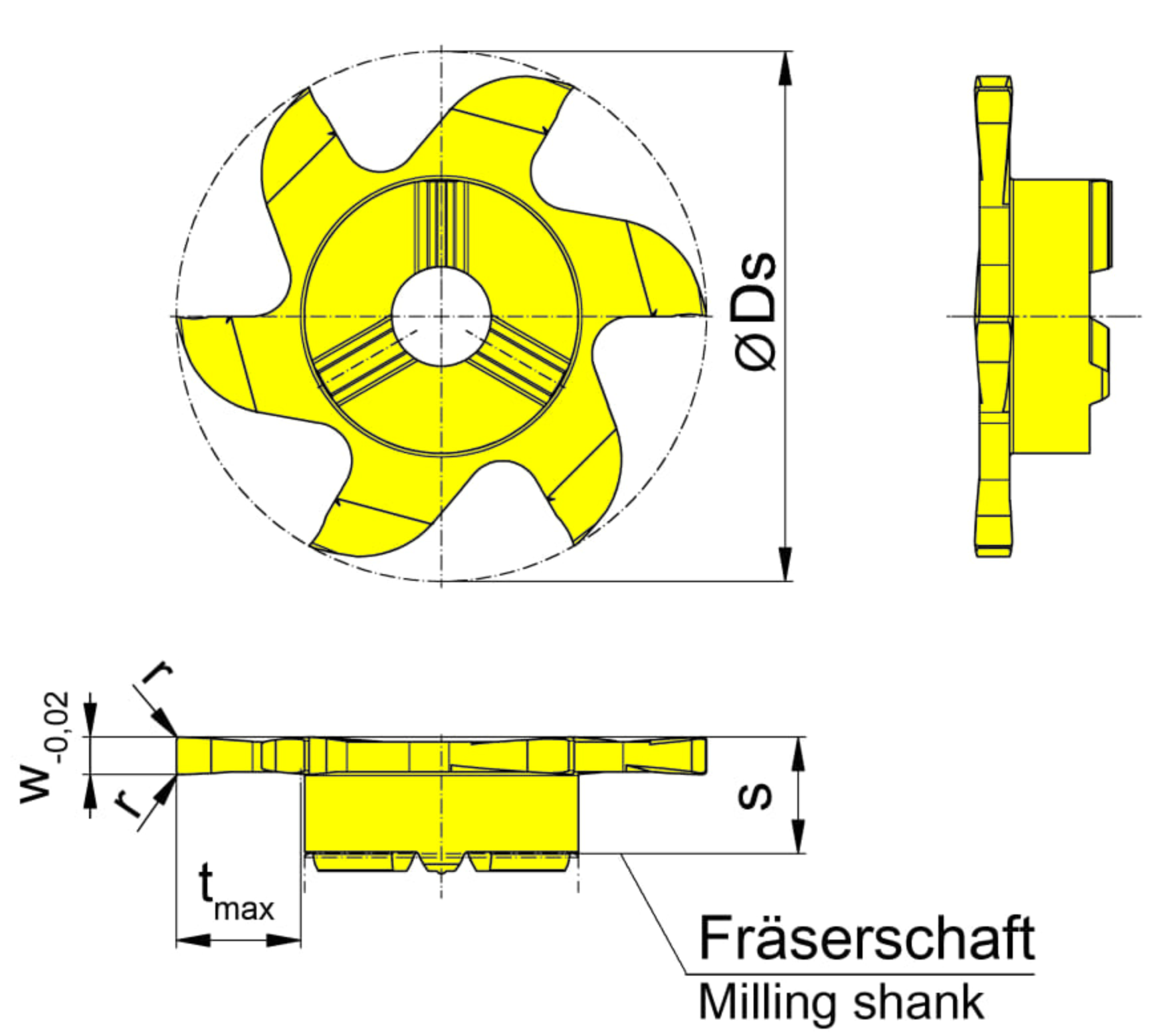

Cutting diameter (Ds)
1.091
˝
27.7
mm
ISO_SSC
HORN328143$84R$$$$$
DIN_SSC
HORN32814384R
Katalog_SSC
328143R
Width of groove (w)
0.067
˝
1.71
mm
Maximum milling depth/ depth of groove (tmax)
0.256
˝
6.5
mm
Nominal range (Nw)
0.063
˝
1.6
mm
Cutting insert thickness, setting length complete (s)
0.24
˝
6.1
mm
| Downloads | |
|---|---|
| 628016000_20230112_144508119.STP | Download |
| 628016000_20210627_115507973.DXF | Download |
| Download all files | |
