628.0200.2.00 AS45
Insert
Material number 6280200200AS45

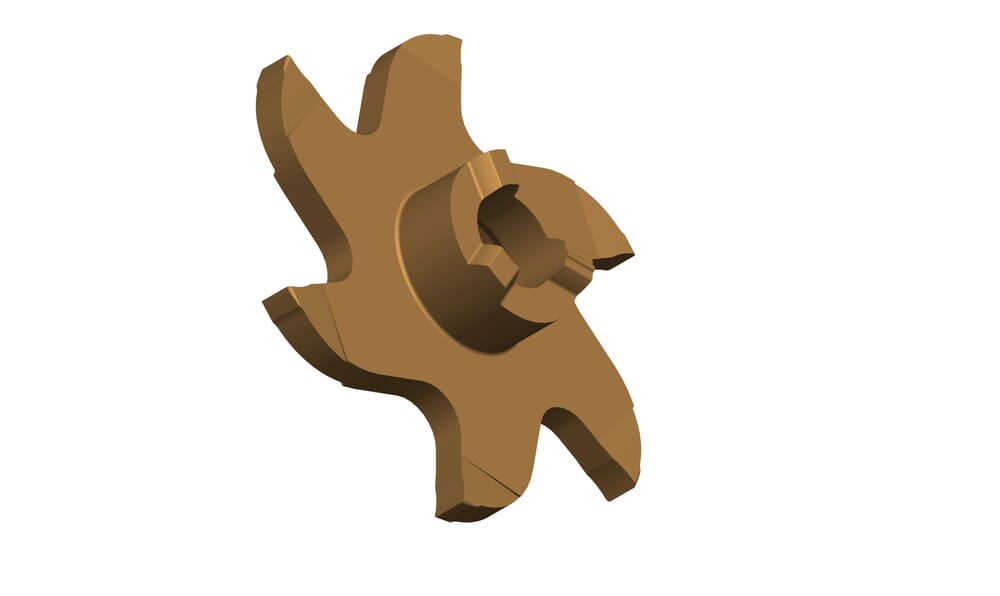

HORN Insert 628.0200.2.00 AS45 for Milling

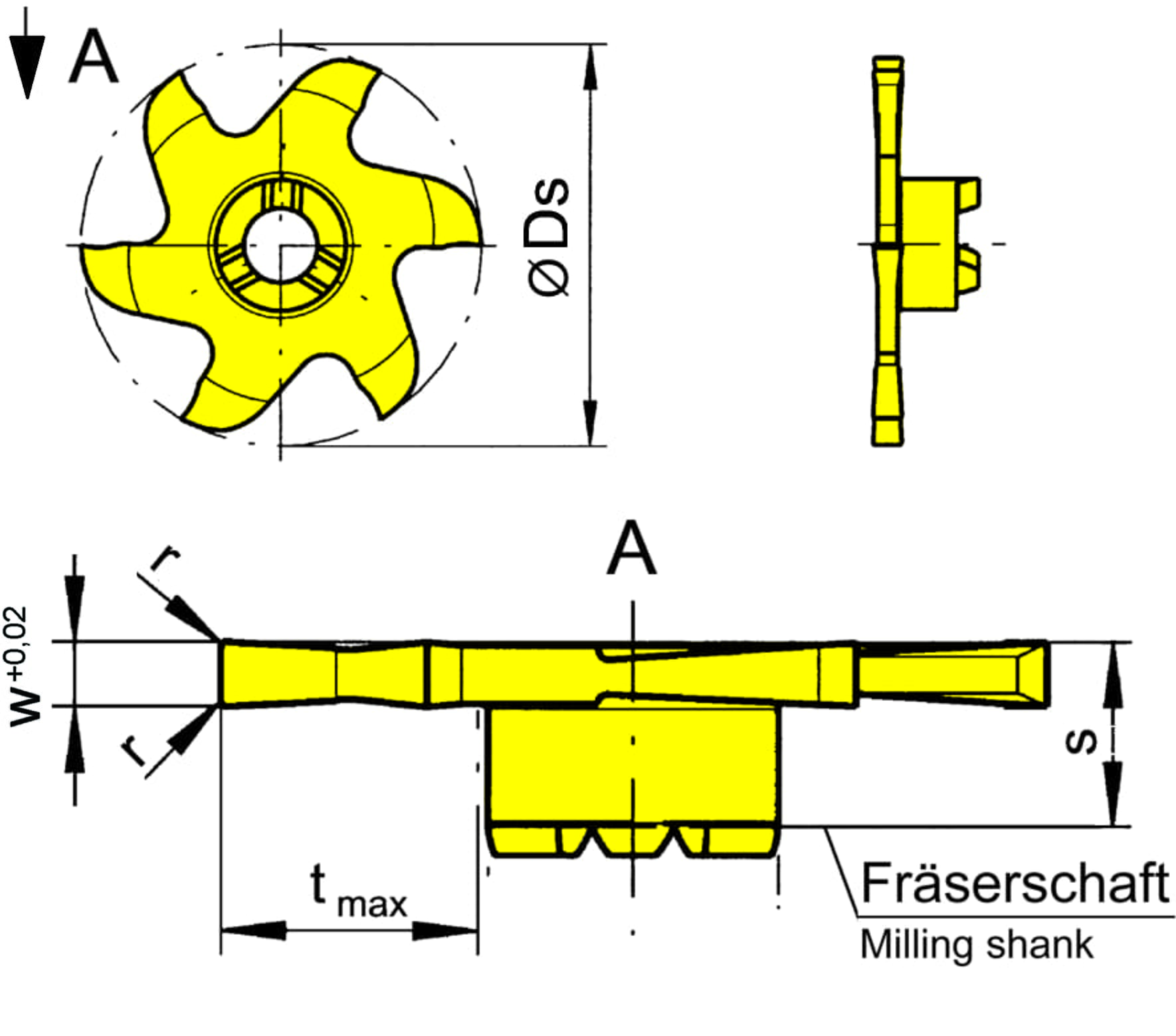

Cutting diameter (Ds)
1.102
˝
28
mm
Corner radius (r)
0.008
˝
0.2
mm
ISO_SSC
HORN328090$84R$$$$$
DIN_SSC
HORN32809084R
Katalog_SSC
328090R
Width of groove (w)
0.079
˝
2
mm
Maximum milling depth/ depth of groove (tmax)
0.366
˝
9.3
mm
Cutting insert thickness, setting length complete (s)
0.24
˝
6.1
mm
| Downloads | |
|---|---|
| 6280200200_20230112_152208801.STP | Download |
| 6280200200_20210627_105039144.DXF | Download |
| Download all files | |
