632.0300.00 AS45
Insert
Material number 632030000AS45

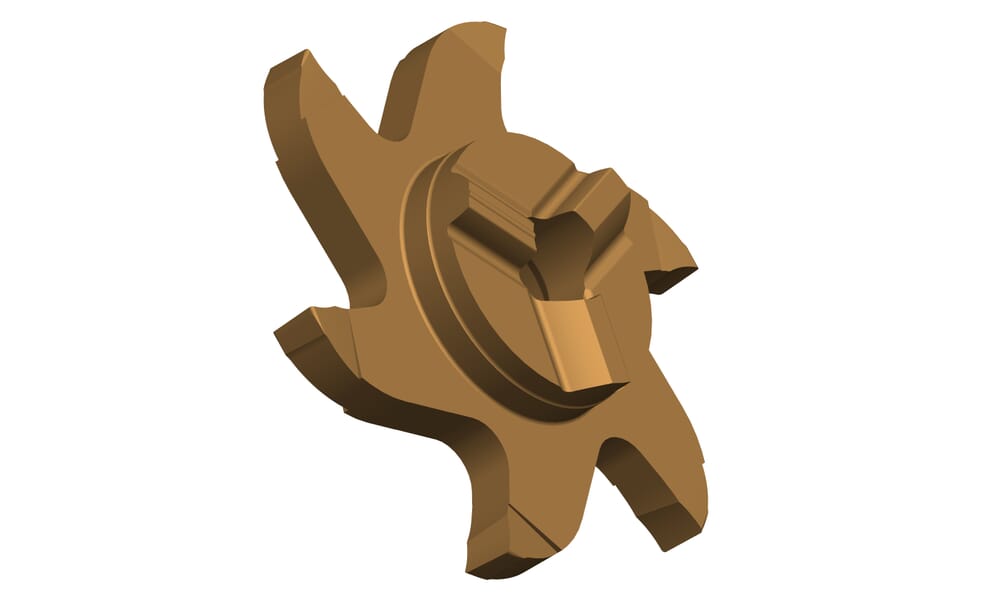

HORN Insert 632.0300.00 AS45 for Milling
Cutting diameter (Ds)
1.248
˝
31.7
mm
Corner radius (r)
0.008
˝
0.2
mm
ISO_SSC
HORN332143$84R$$$$$
DIN_SSC
HORN-33214384R
Katalog_SSC
332143R
Width of groove (w)
0.118
˝
3
mm
Maximum milling depth/ depth of groove (tmax)
0.327
˝
8.3
mm
Cutting insert thickness, setting length complete (s)
0.24
˝
6.1
mm
| Downloads | |
|---|---|
| 632030000_20240117_053653992.STP | Download |
| 632030000_20211126_113736381.DXF | Download |
| Download all files | |
