636.0150.00 TA45
Insert
Material number 636015000TA45

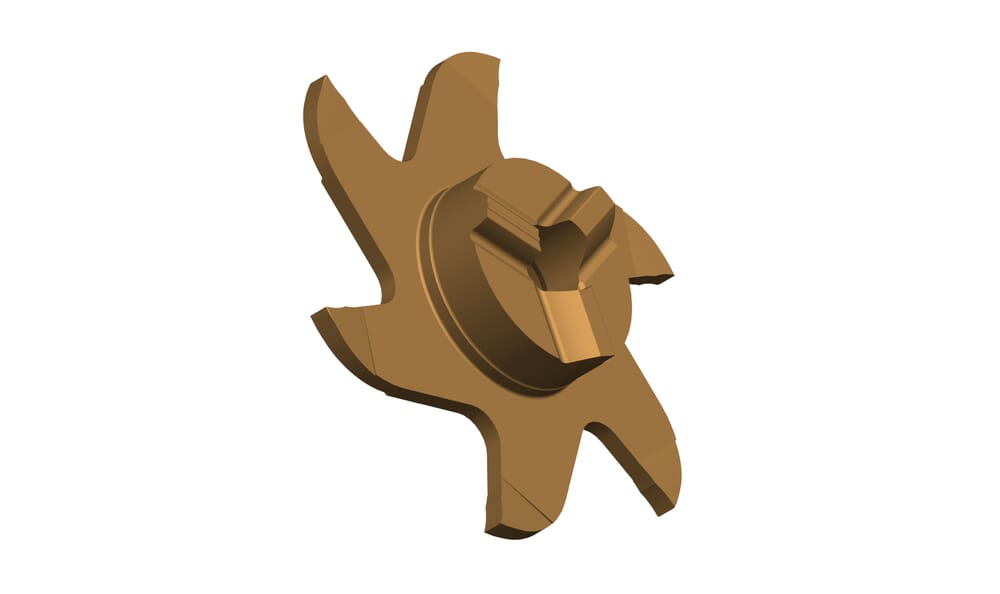

HORN Insert 636.0150.00 TA45 for Milling

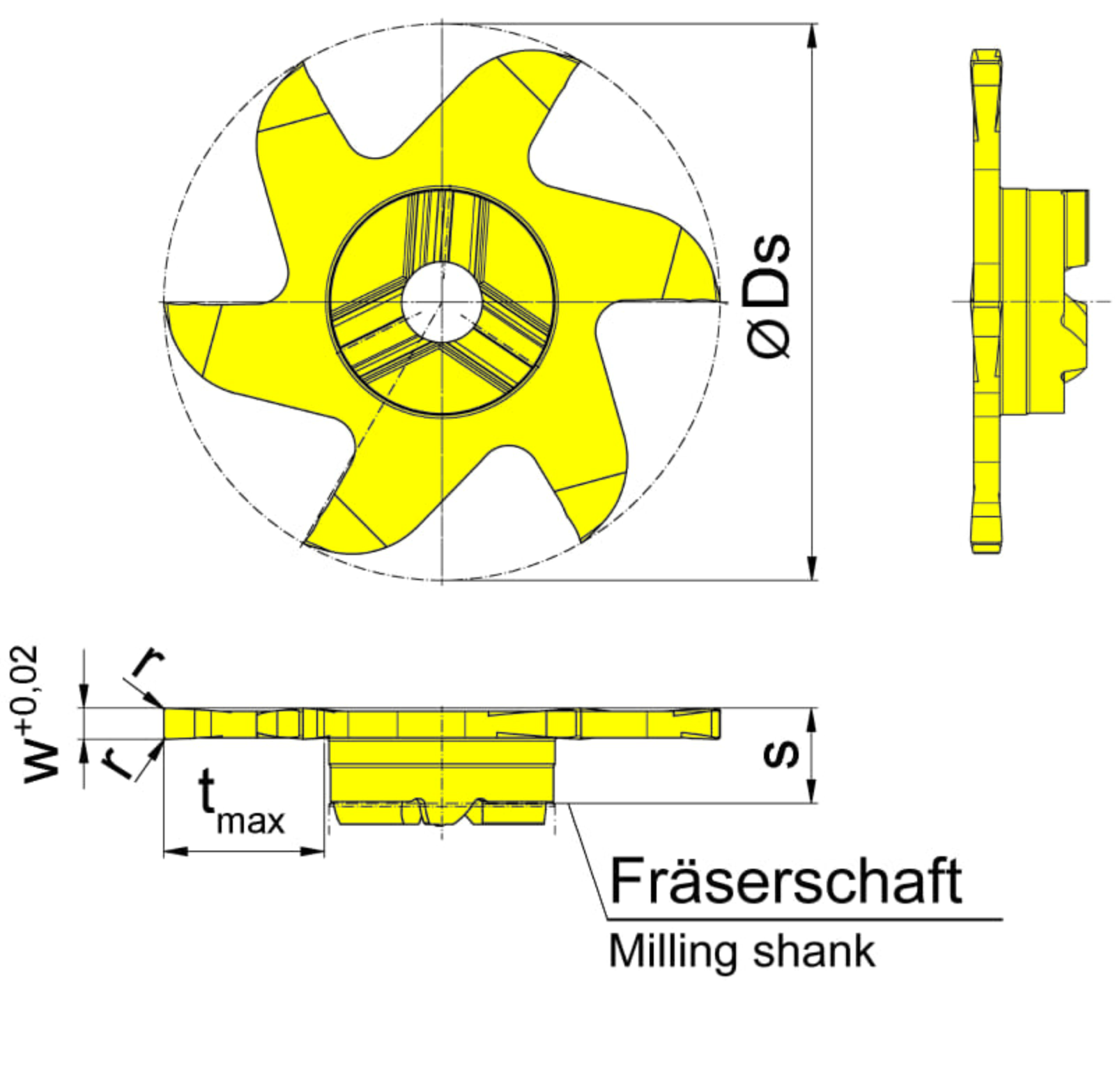

Cutting diameter (Ds)
1.406
˝
35.7
mm
Corner radius (r)
0.004
˝
0.1
mm
ISO_SSC
HORN332143$84R$$$$$
DIN_SSC
HORN33214384R
Katalog_SSC
332143R
Width of groove (w)
0.059
˝
1.5
mm
Maximum milling depth/ depth of groove (tmax)
0.402
˝
10.2
mm
Cutting insert thickness, setting length complete (s)
0.24
˝
6.1
mm
| Downloads | |
|---|---|
| 636015000_20230112_144856851.STP | Download |
| 636015000_20210629_123959231.DXF | Download |
| Download all files | |
