636.L810.2.00 AN25
Insert
Material number 636L810200AN25

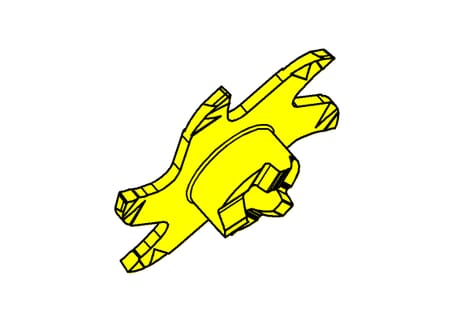

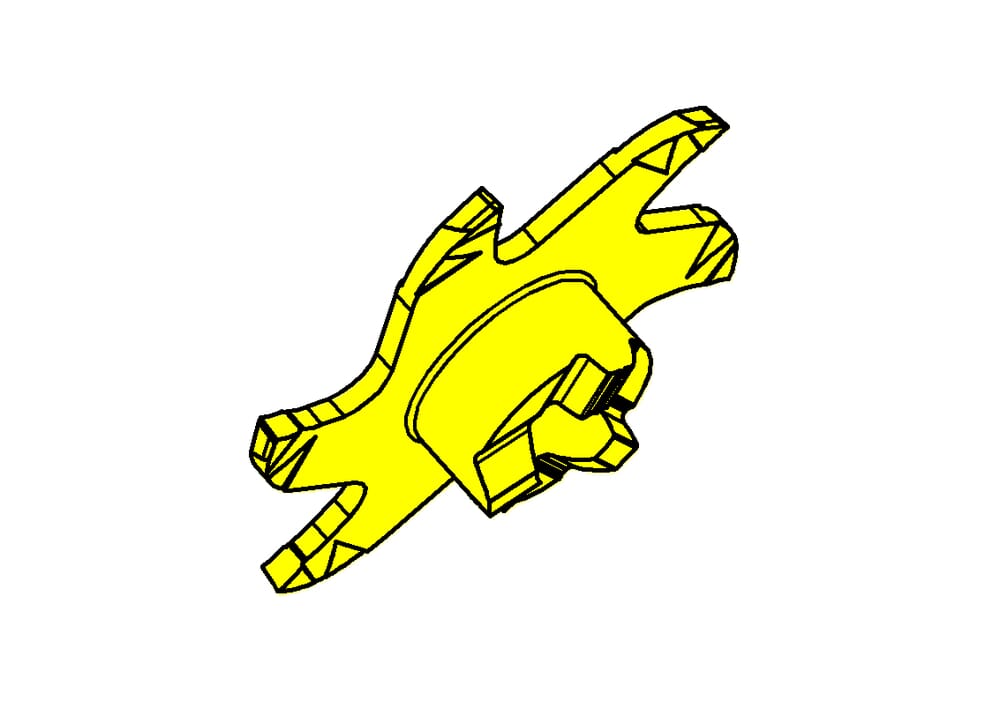

HORN Insert 636.L810.2.00 AN25 for Milling

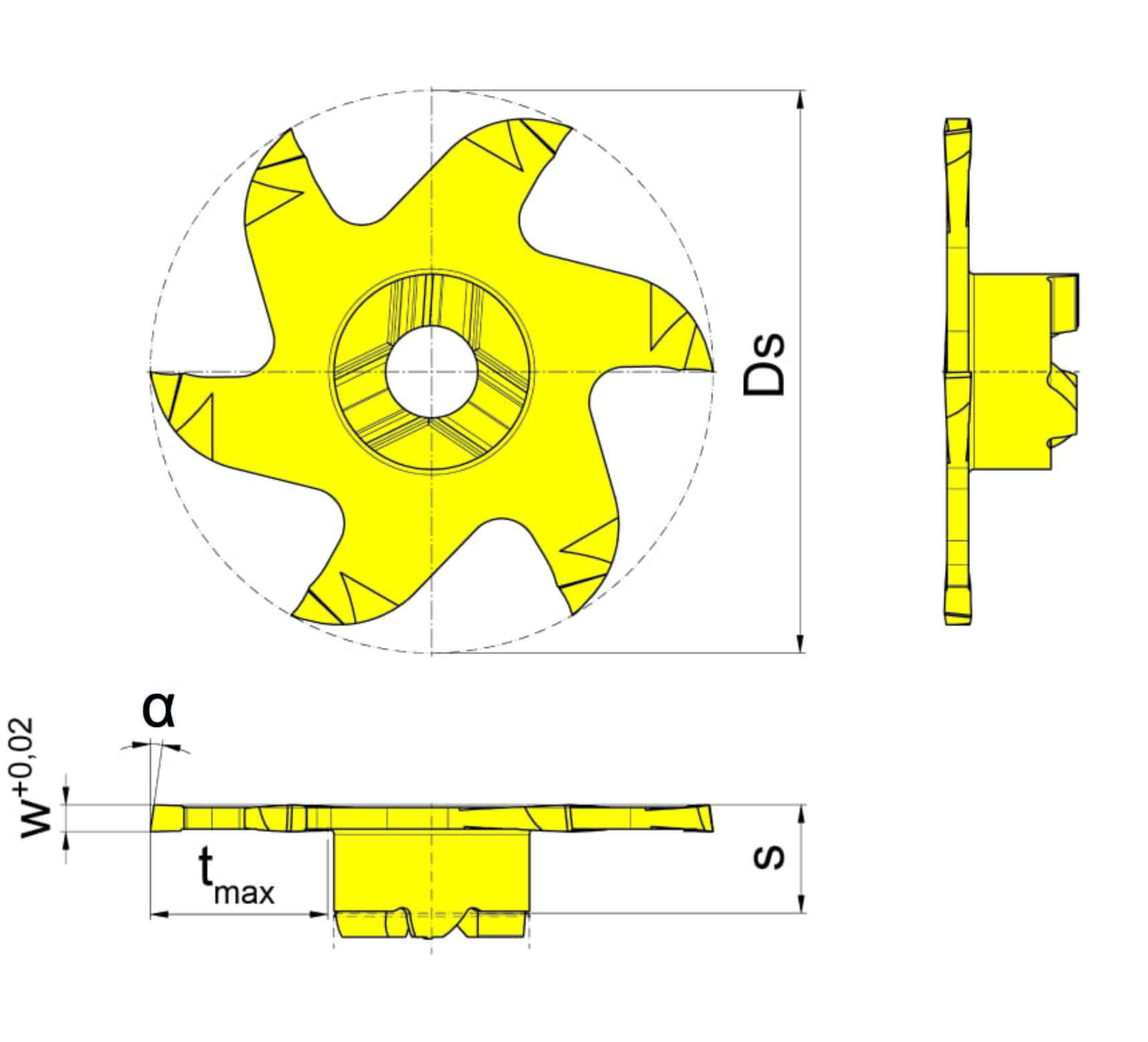

Cutting diameter (Ds)
1.406
˝
35.7
mm
ISO_SSC
HORN332110$84R$$$$$
DIN_SSC
HORN33211084R
Katalog_SSC
332110R
Width of groove (w)
0.039
˝
1
mm
Maximum milling depth/ depth of groove (tmax)
0.472
˝
12
mm
Cutting insert thickness, setting length complete (s)
0.24
˝
6.1
mm
| Downloads | |
|---|---|
| 636L810200_20230112_152404344.STP | Download |
| 636L810200.DXF | Download |
| Download all files | |
