B108.KM16.90.02
Toolholder
Material number B108KM169002

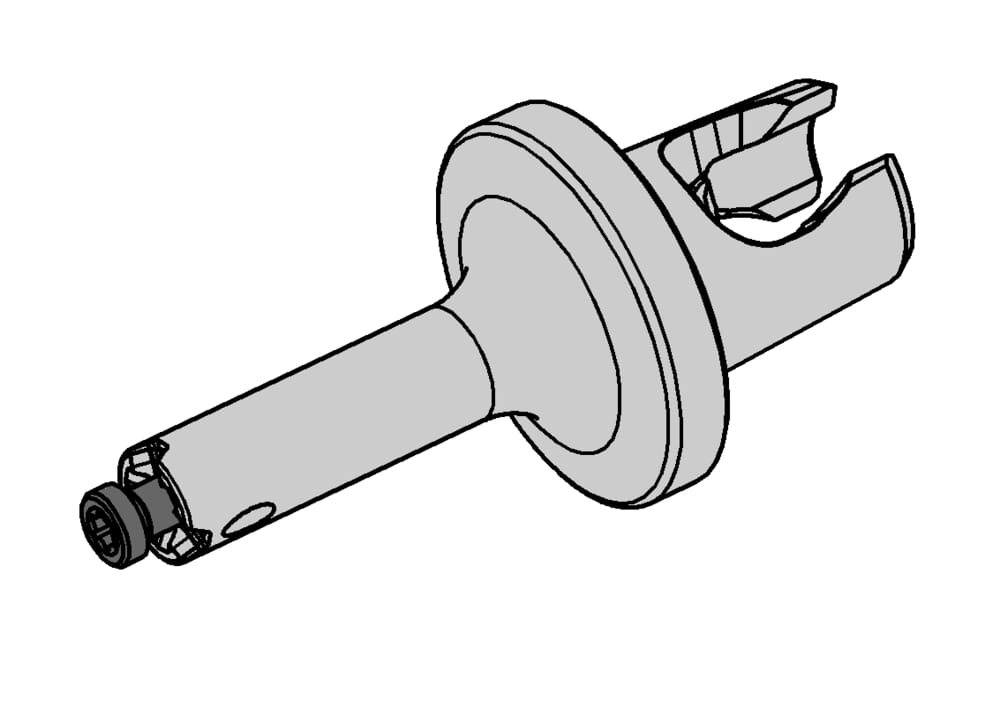

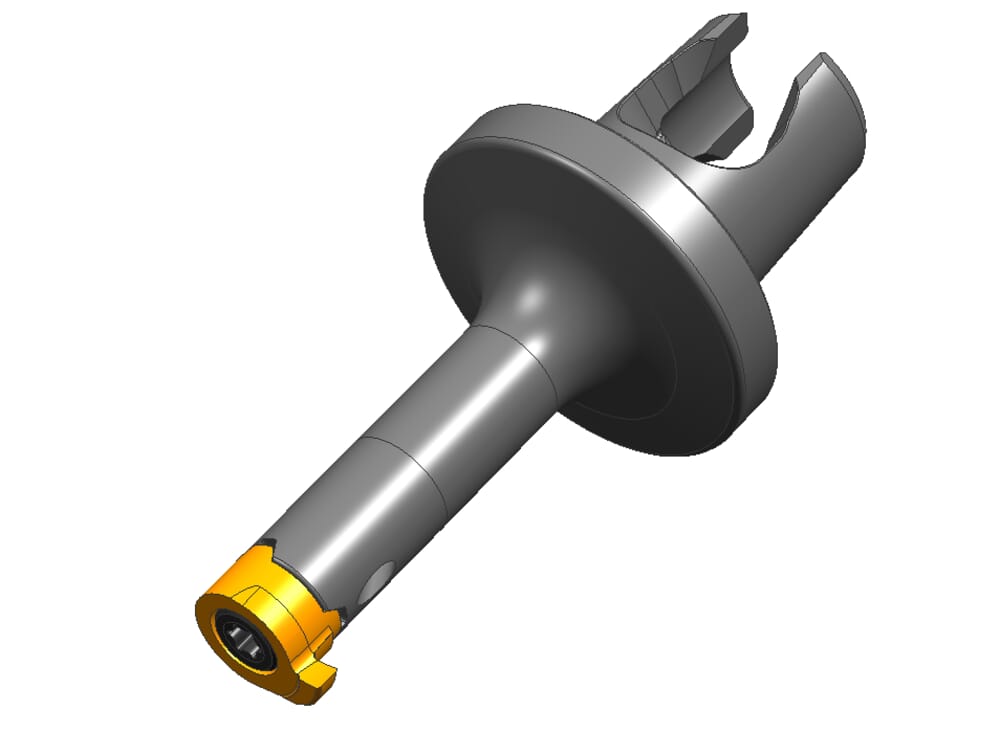

HORN Toolholder B108.KM16.90.02 for Turning

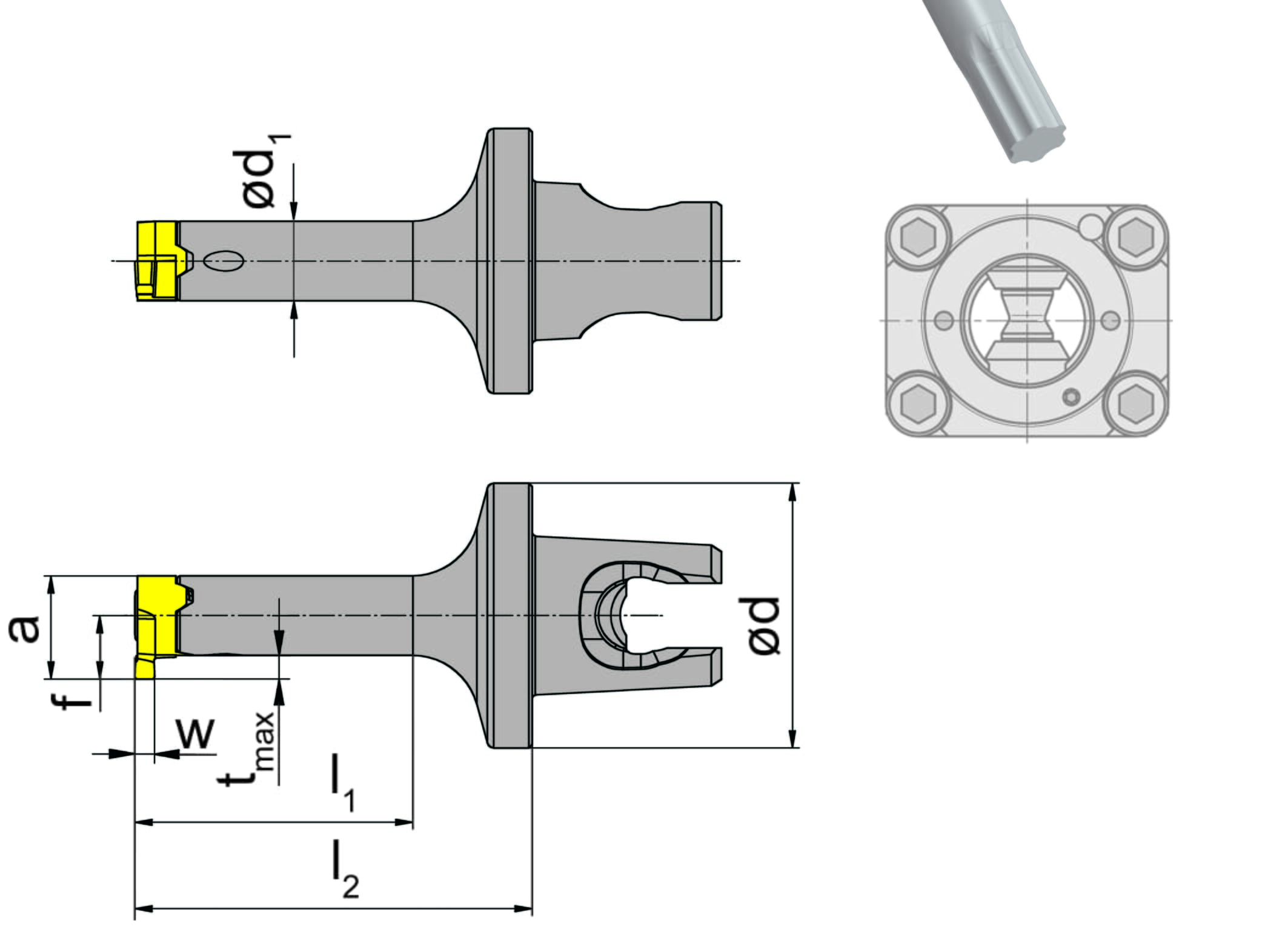

Outcropping, neck, working length (l1)
1.024
˝
26
mm
Bore diameter rotate (d)
0.787
˝
20
mm
Length from bore (including cutting insert) (l2)
1.378
˝
35
mm
ISO_CCTWS
HORN306060$84R$$$$$;HORN306060$84L$$$$$
DIN_CCTWS
HORN-30606084R;HORN-30606084L
Katalog_CCTWS
306060R;306060L
DIN_CCTMS
KMT01600195
ISO_CCTMS
KMT01C0160$$$$
Neck diameter (d1)
0.236
˝
6
mm
| Downloads | |
|---|---|
| B108_KM16_90_02_20171121_185842879.STP | Download |
| B108_KM16_90_02.DXF | Download |
| Download all files | |
