BKT.L105.2437.01
Toolholder
Material number BKTL105243701

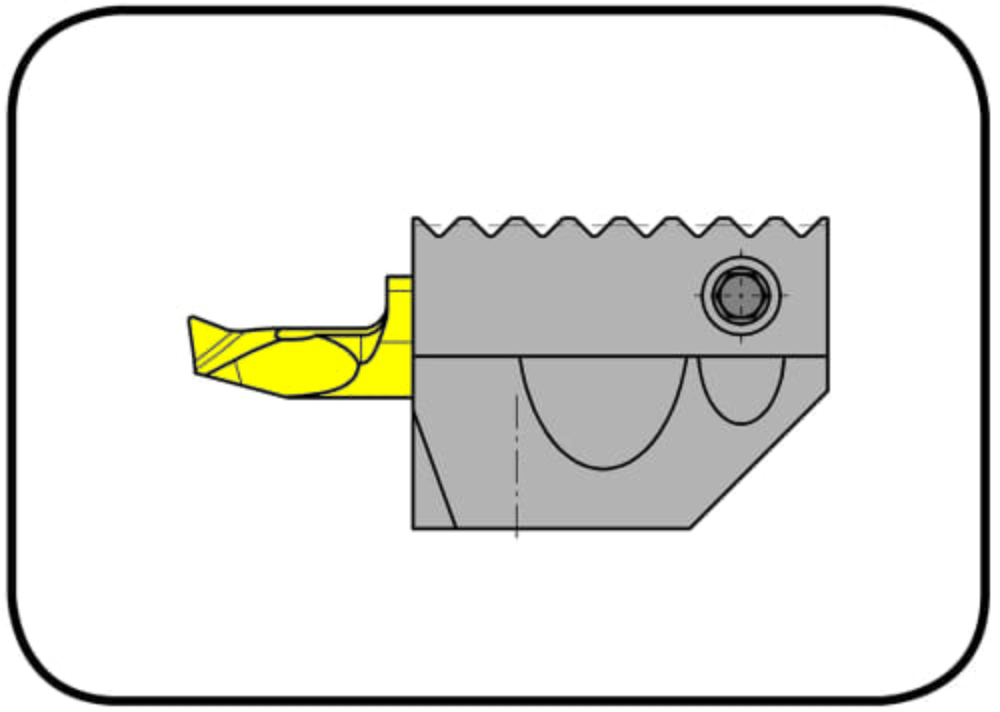

HORN Toolholder BKT.L105.2437.01 for Turning

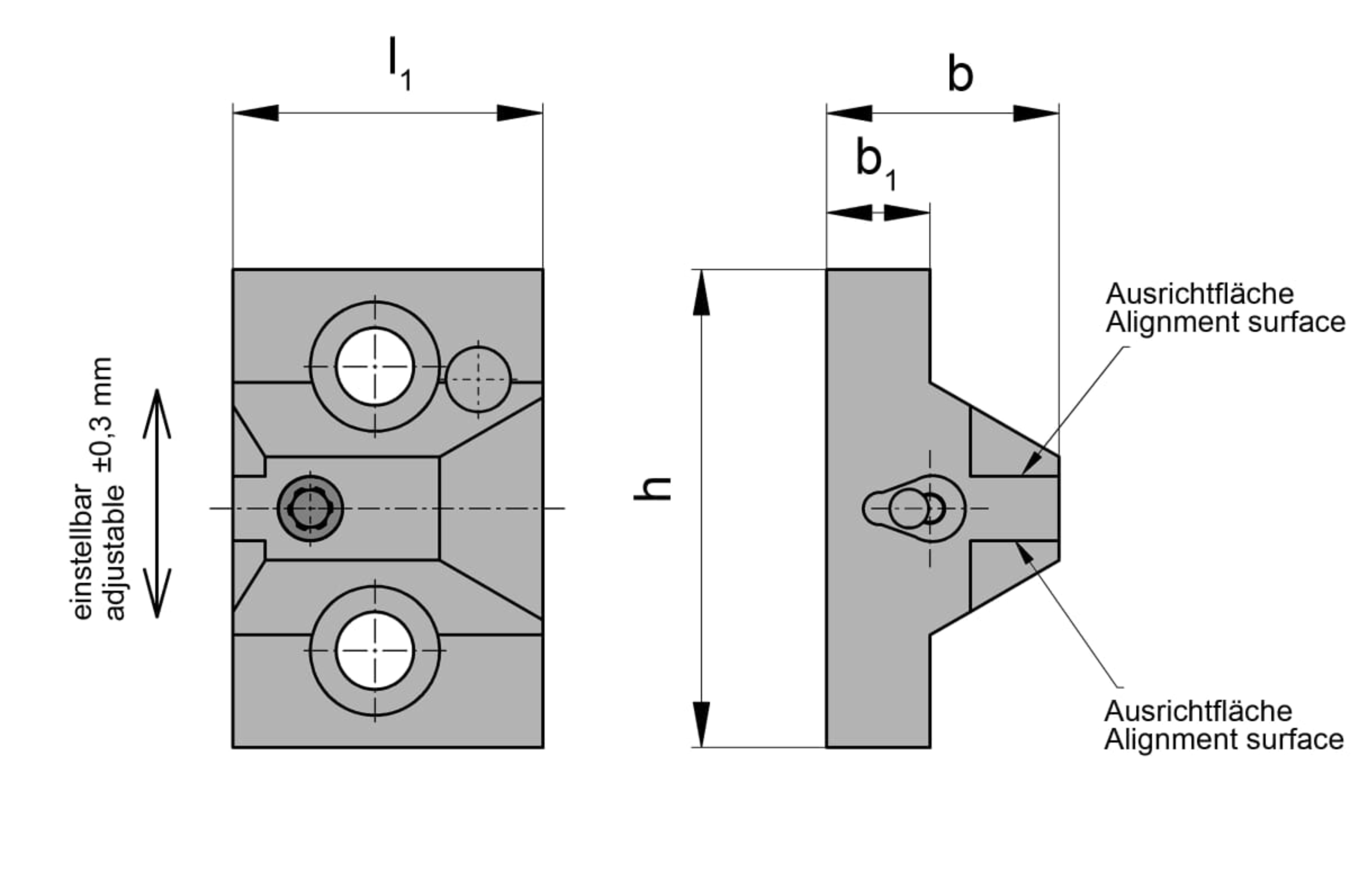

Flange thickness (b1)
0.315
˝
8
mm
Total length (without cutting insert) (l1)
0.945
˝
24
mm
Height (h)
1.457
˝
37
mm
basic holder width (b)
0.709
˝
18
mm
ISO_CCTWS
HORN105123$95N$$$$$;HORN105124$95N$$$$$;HORN105125$95N$$$$$
DIN_CCTWS
HORN-10512395N;HORN-10512495N;HORN-10512595N
Katalog_CCTWS
105123;105124;105125
Katalog_CCTMS
Kerbverzahung 90° / T3
| Downloads | |
|---|---|
| BKTL105243701_20230112_174014262.STP | Download |
| BKTL105243701.DXF | Download |
| Download all files | |
