BU108.ST05.00
Toolholder
Material number BU108ST0500

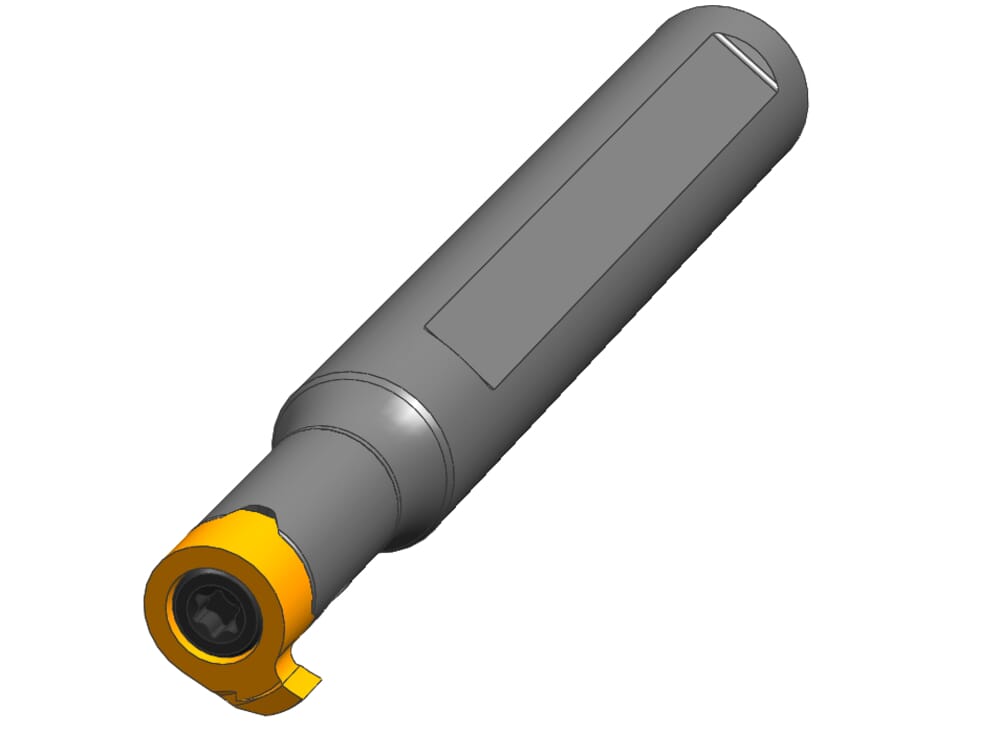

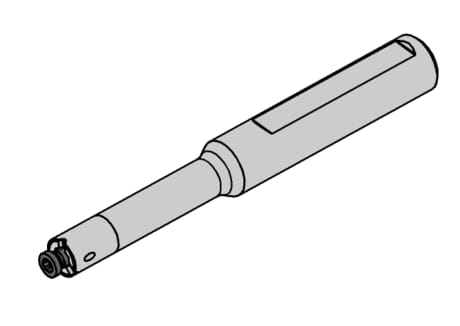

HORN Toolholder BU108.ST05.00 for Turning

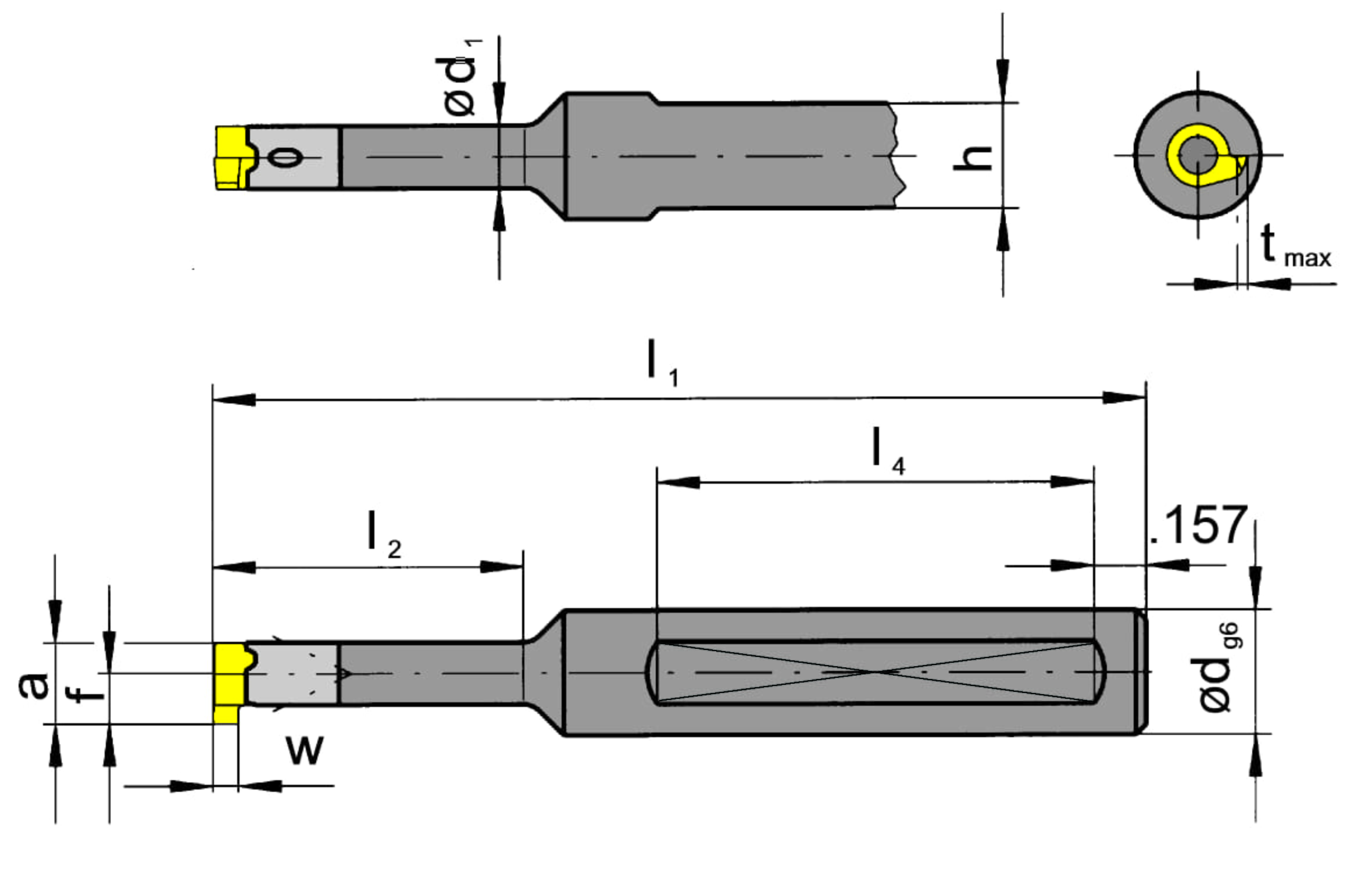

Outcropping, neck, working length (l2)
0.492
˝
12.5
mm
adjustment-dimension-met
0.189
˝
4.8
mm
Total length (including cutting insert) (l1)
2.756
˝
70
mm
Height clamping surface(s) (h)
0.46
˝
11.68
mm
head-size-met
0.307
˝
7.8
mm
Length of clamping surface(s) (l4)
1.575
˝
40
mm
Shank, clamping diameter (d)
0.5
˝
12.7
mm
ISO_SSC
ZYL23R5000$$$$
DIN_SSC
ZYL05002335
ISO_CCTWS
HORN306060$84R$$$$$;HORN306060$84L$$$$$
DIN_CCTWS
HORN-30606084R;HORN-30606084L
Katalog_CCTWS
306060R;306060L
DIN_CCTMS
ZYL05002335
Neck diameter (d1)
0.236
˝
6
mm
smallest-bore-diameter-met
0.315
˝
8
mm
| Downloads | |
|---|---|
| BU108_ST05_00.STP | Download |
| BU108ST0500.DXF | Download |
| Download all files | |
