CCGT09T302N.W.H6 PD70
Inserts
Material number CCGT09T302NWH6PD70

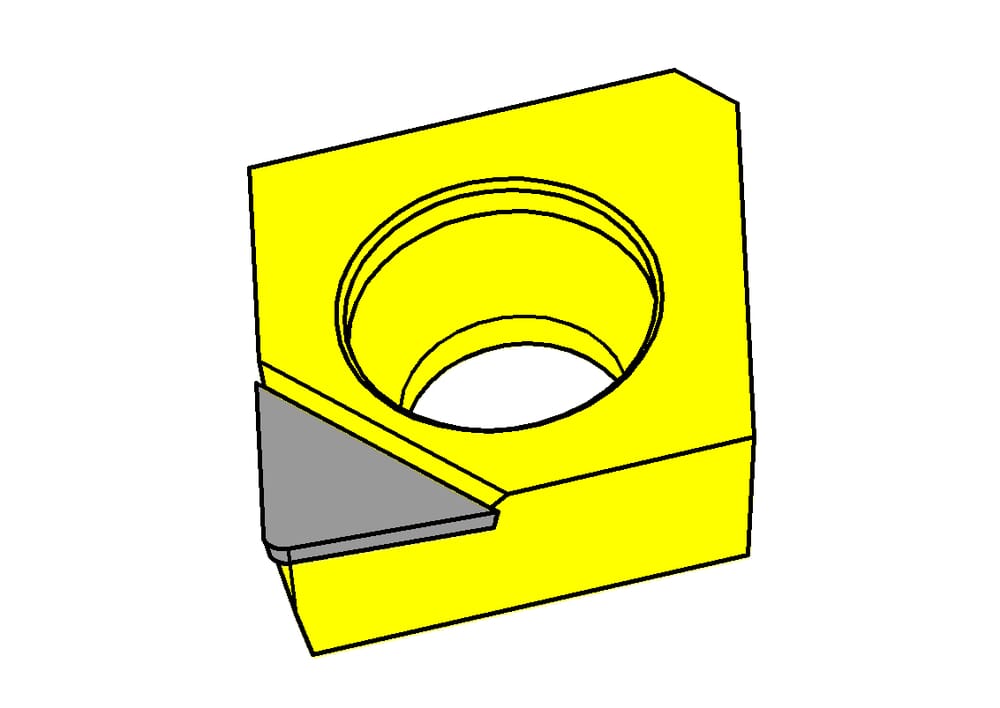

HORN Inserts CCGT09T302N.W.H6 PD70 for Turning

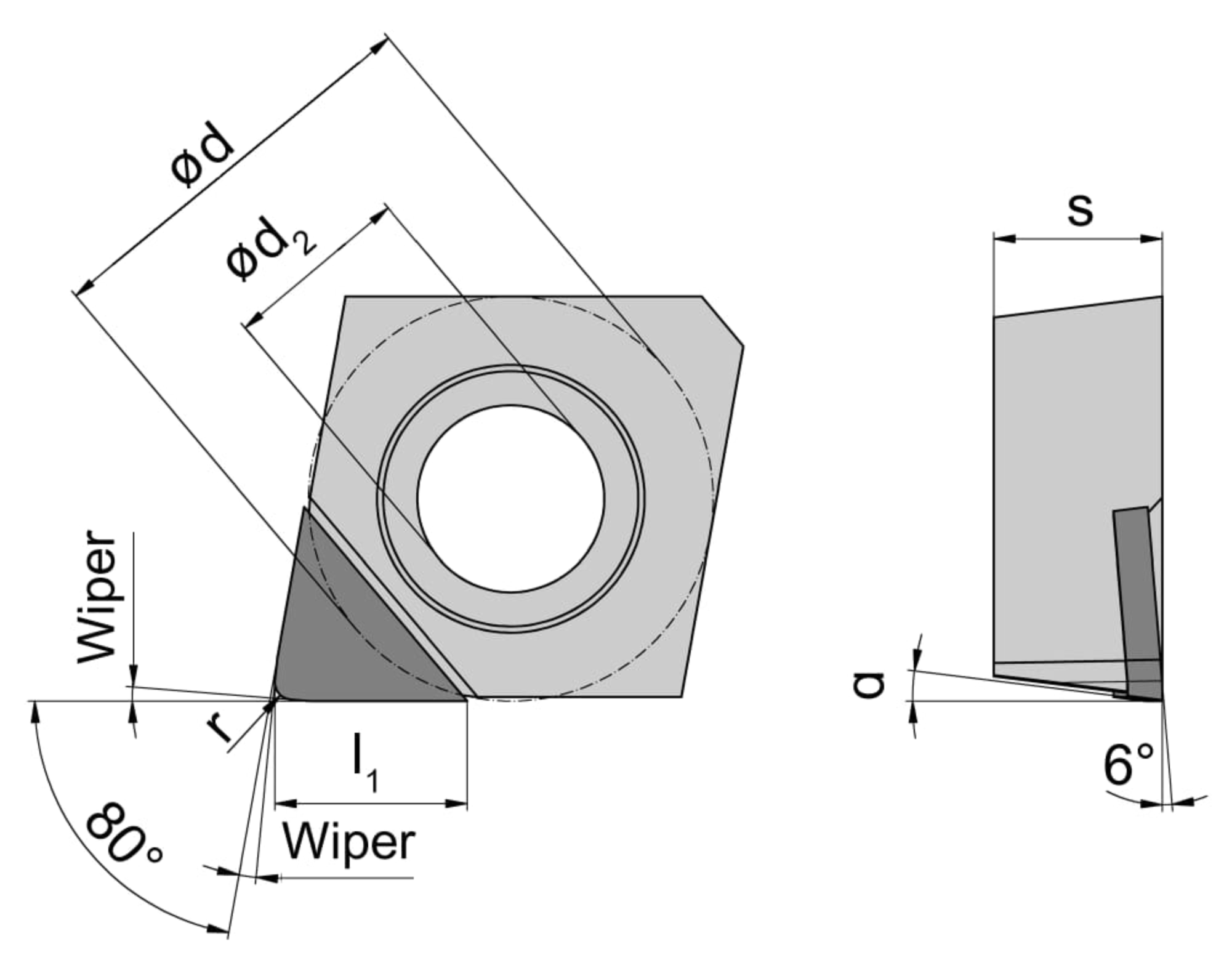

Bore diameter (d2)
0.173
˝
4.4
mm
Corner radius (r)
0.008
˝
0.2
mm
ISO_SSC
ISO$CC09T3023NB$$02
DIN_SSC
CC09T3023N
Cutting insert height, Cutting insert thickness (s)
0.156
˝
3.97
mm
Effective cutting length (l1)
0.157
˝
4
mm
Inner circle diameter (d)
0.375
˝
9.525
mm
