CCGT09T308R.G.HN PD70
Inserts
Material number CCGT09T308RGHNPD70

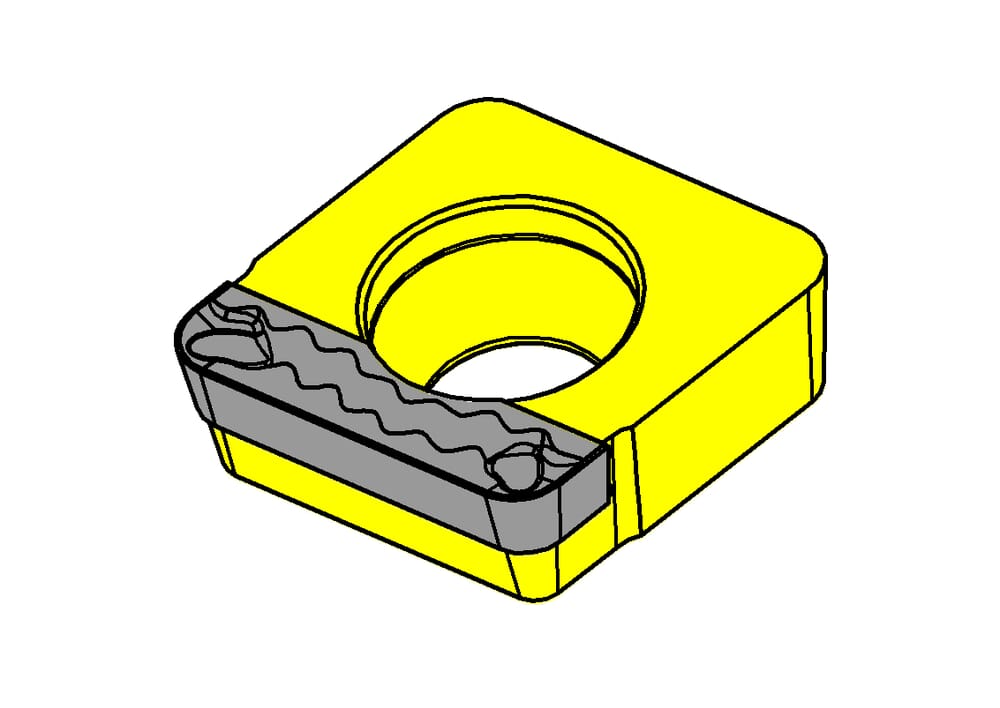

HORN Inserts CCGT09T308R.G.HN PD70 for Turning

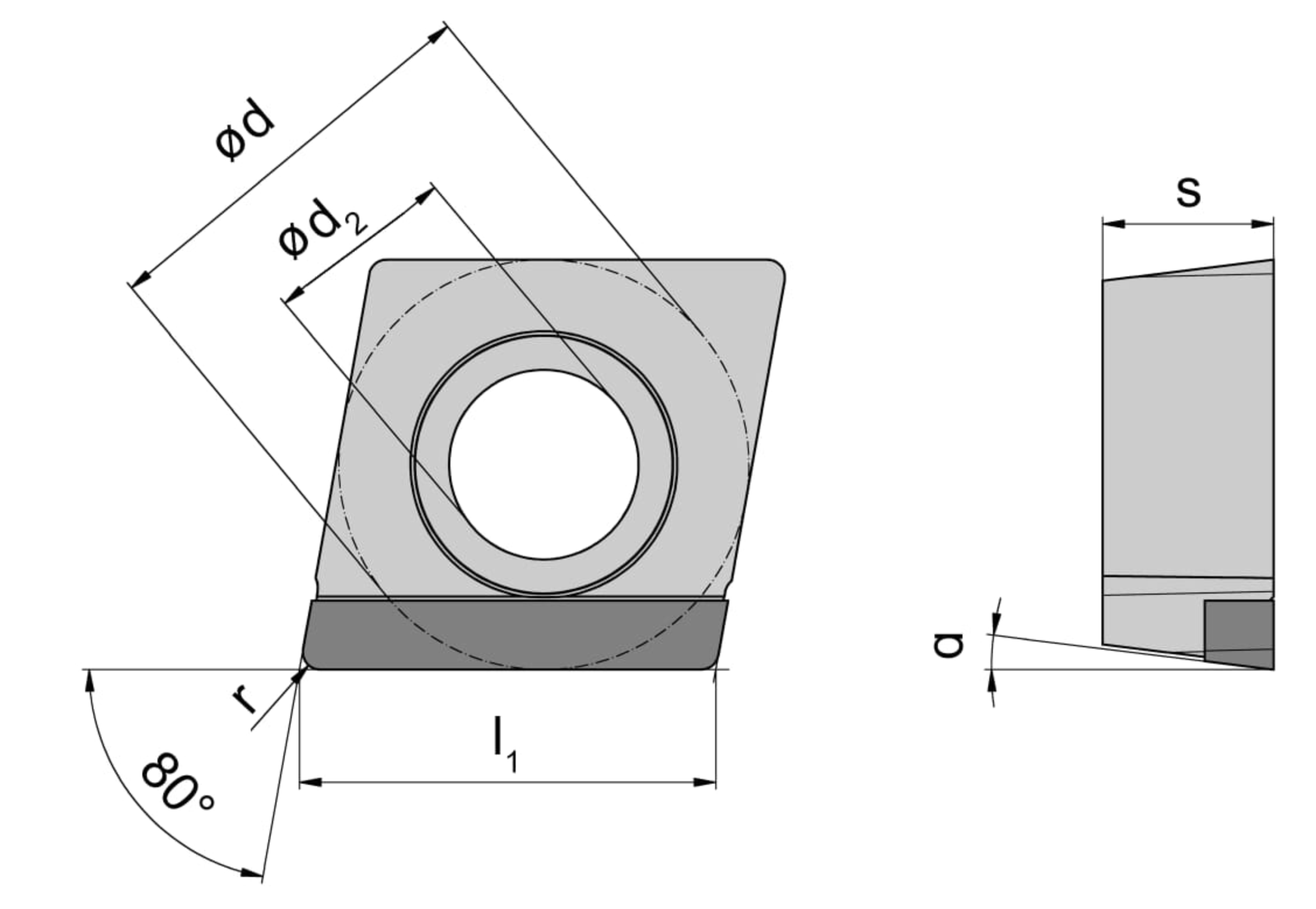

Bore diameter (d2)
0.173
˝
4.4
mm
Corner radius (r)
0.031
˝
0.8
mm
ISO_SSC
ISO$CC09T3083RB$$08
DIN_SSC
CC09T3083R
Cutting insert height, Cutting insert thickness (s)
0.156
˝
3.97
mm
Effective cutting length (l1)
0.374
˝
9.5
mm
Inner circle diameter (d)
0.375
˝
9.525
mm
