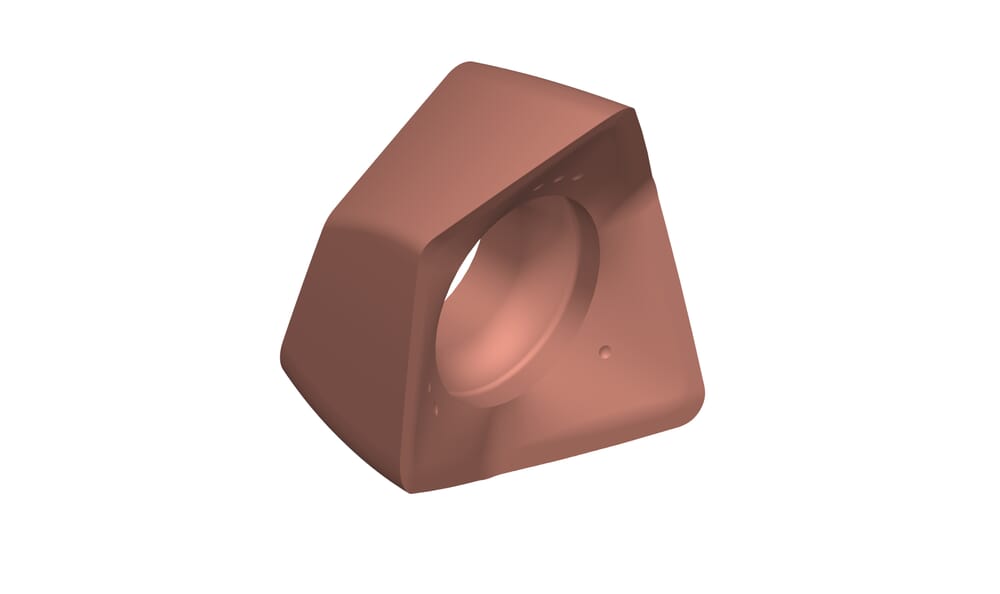

DA32.025.A.08 TA45
DA Milling cutter
Material number DA32025A08TA45
HORN DA Milling cutter DA32.025.A.08 TA45 for Milling
cutting-edge-diameter-met
0.984
˝
25
mm
Corner radius (rx)
0.031
˝
0.8
mm
ISO_SSC
HORNDA3225$$3N$$$$$
DIN_SSC
HORN-DA32253N
Katalog_SSC
DA3225
Width of groove (a)
0.181
˝
4.6
mm
Maximum stepover axial (ap) (ap)
0.189
˝
4.8
mm
Cutting insert height, Cutting insert thickness (h)
0.185
˝
4.7
mm
For cutting diameter (Ds)
0.984
˝
25
mm
| Downloads | |
|---|---|
| DA32025A08_20240118_123150615.STP | Download |
| Download all files | |
