DAHM.37.020.D204.02B
Toolholder
Material number DAHM37020D20402B

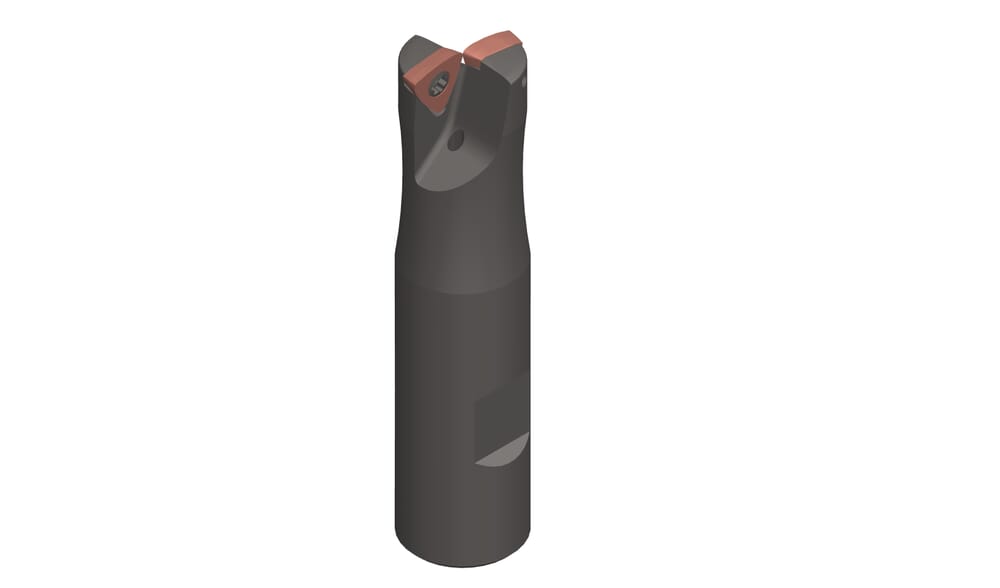

HORN Toolholder DAHM.37.020.D204.02B for Milling

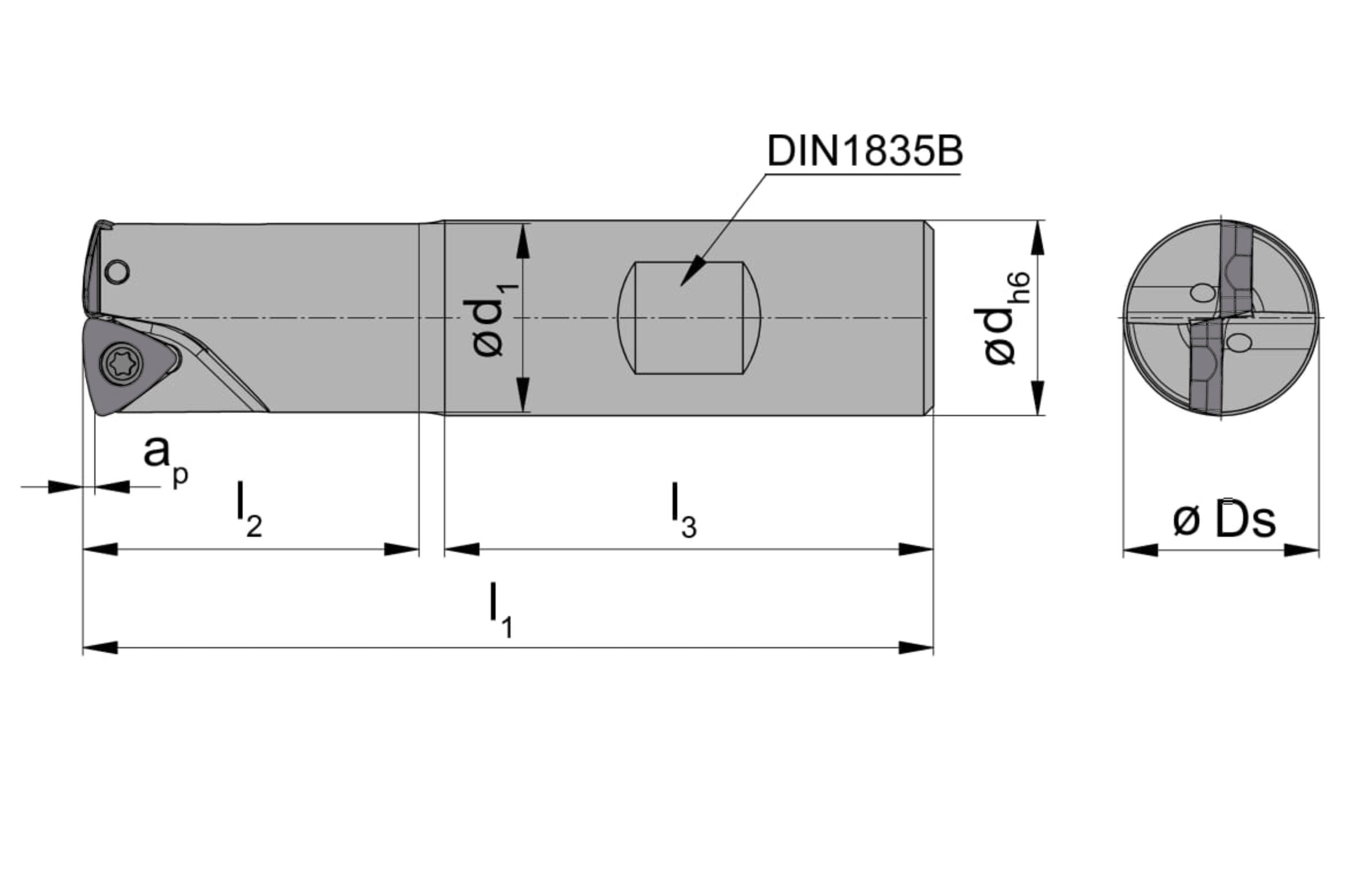

Shank diameter (d)
0.787
˝
20
mm
Cutting diameter (Ds)
0.787
˝
20
mm
ISO_CCTWS
HORNDAH37$$$3N$$$$$
DIN_CCTWS
HORN-DAH373N
Katalog_CCTWS
DAH37
DIN_CCTMS
ZYL02001005
ISO_CCTMS
ZYL10G2000h$06
Cutting depth (ap)
0.047
˝
1.2
mm
Neck diameter (d1)
0.748
˝
19
mm
cone-diameter-met
0.787
˝
20
mm
Total length insert (l1)
3.425
˝
87
mm
Working length, Neck length, Extension length (l2)
1.339
˝
34
mm
Tension length (l3)
1.969
˝
50
mm
| Downloads | |
|---|---|
| DAHM_37_020_D204_02B.STP | Download |
| DAHM37020D20402B_20210629_120537486.DXF | Download |
| Download all files | |
