DAHM.82.035.M166.04
screw-in cutter
Material number DAHM82035M16604

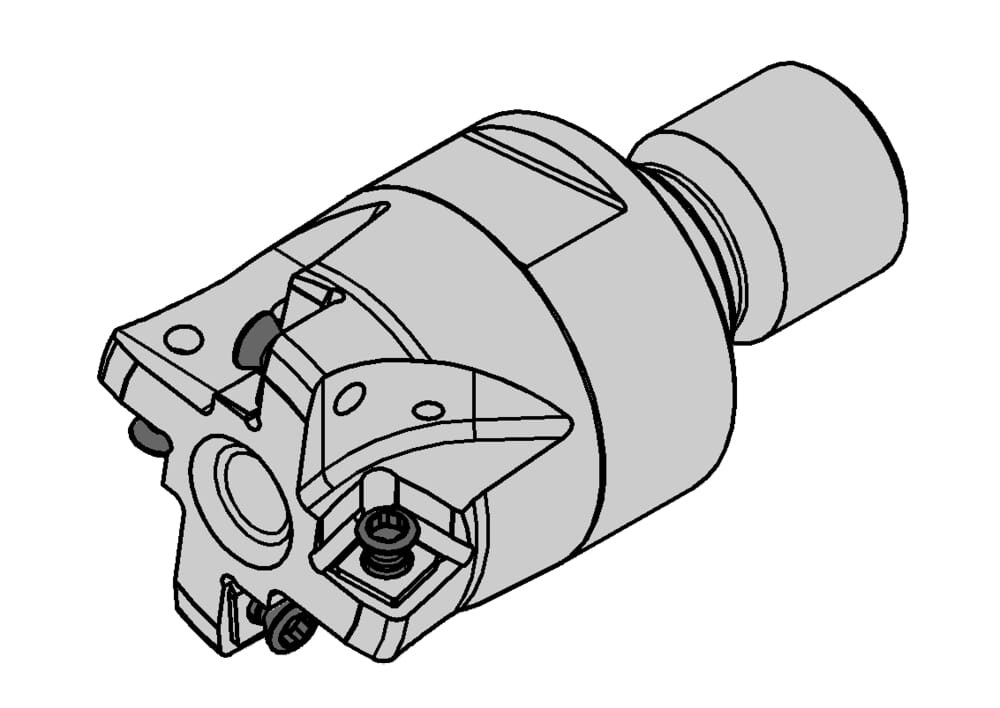

HORN screw-in cutter DAHM.82.035.M166.04 for Milling

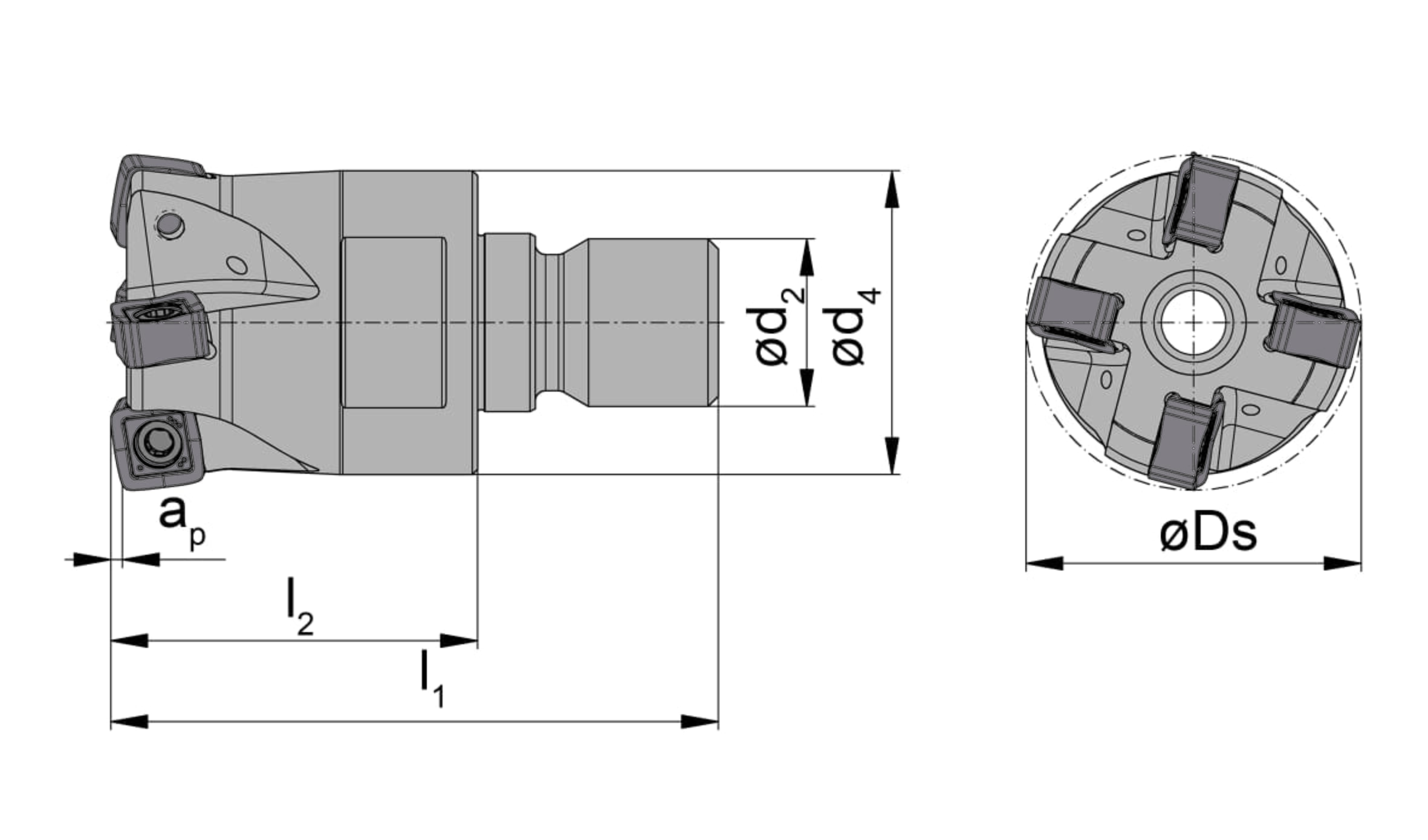

Cutting diameter (Ds)
1.378
˝
35
mm
Diameter miller body (d4)
1.142
˝
29
mm
ISO_CCTWS
HORNDAH82$$$3N$$$$$
DIN_CCTWS
HORN-DAH823N
Katalog_CCTWS
DAH82
DIN_CCTMS
HORN-01600105
ISO_CCTMS
HORN01600105$$
Katalog_CCTMS
16001
Total milling length with insert (l1)
2.283
˝
58
mm
Length from stop (l2)
1.378
˝
35
mm
Key range (SW)
0.945
˝
24
mm
Maximum stepover (ap) (ap)
0.039
˝
1
mm
| Downloads | |
|---|---|
| DAHM82035M16604_20230112_181453254.STP | Download |
| DAHM82035M16604.DXF | Download |
| Download all files | |
