HSKT100.R220.150.K2.IK
Basic body
Material number HSKT100R220150K2IK

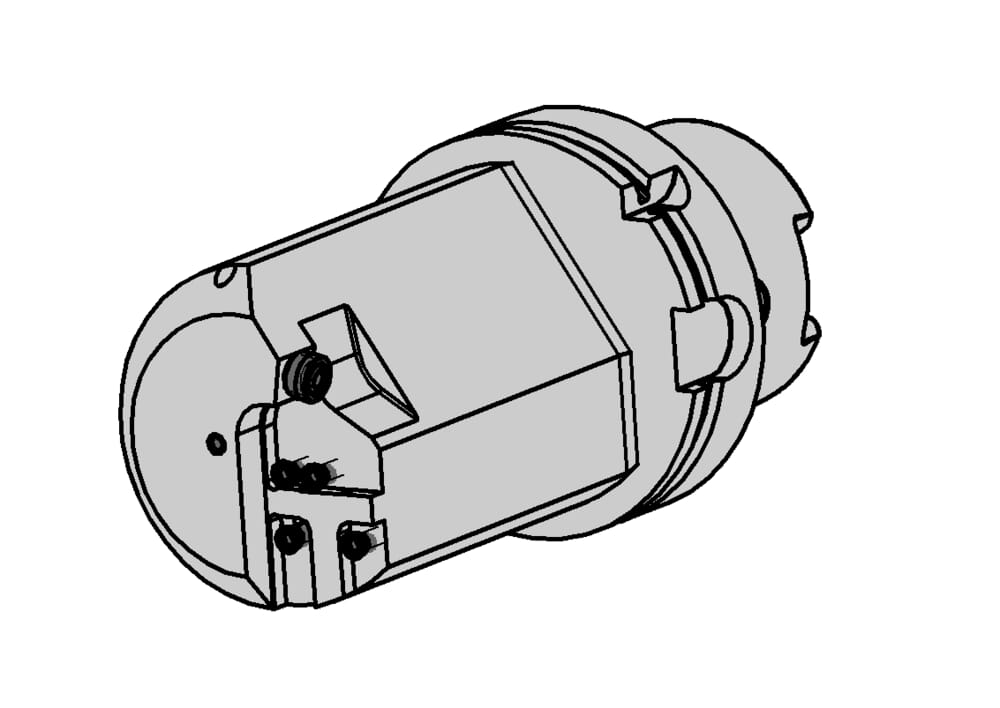

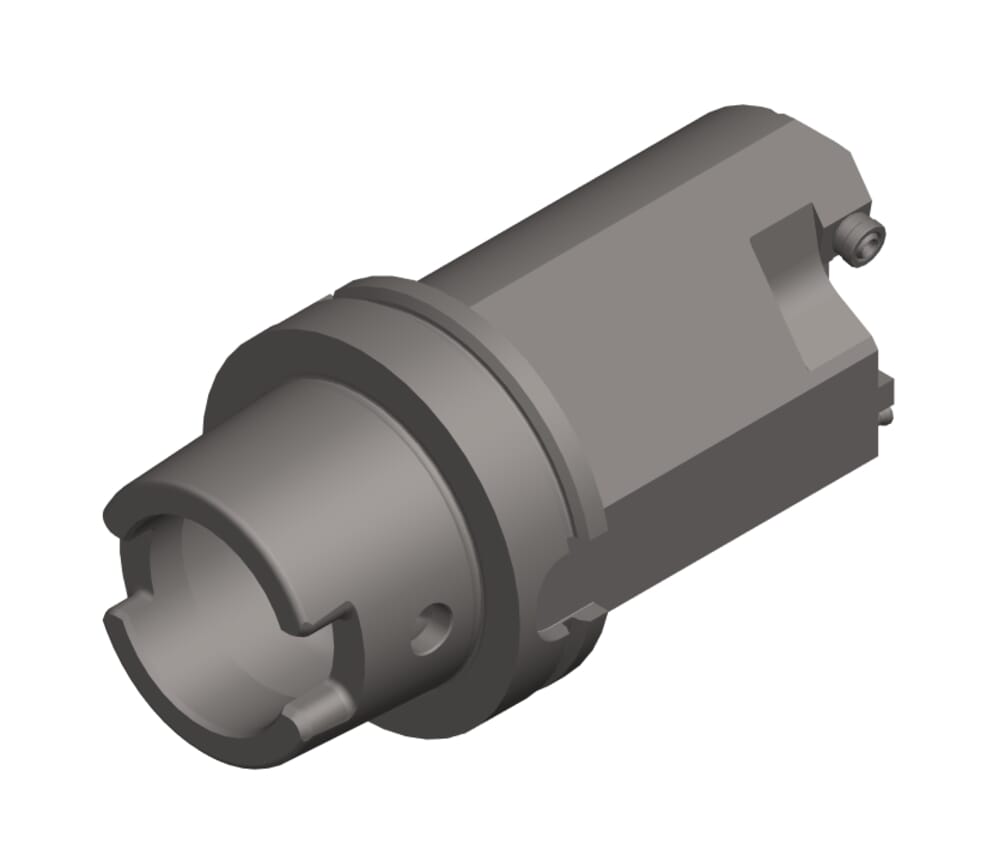

HORN Basic body HSKT100.R220.150.K2.IK for Turning

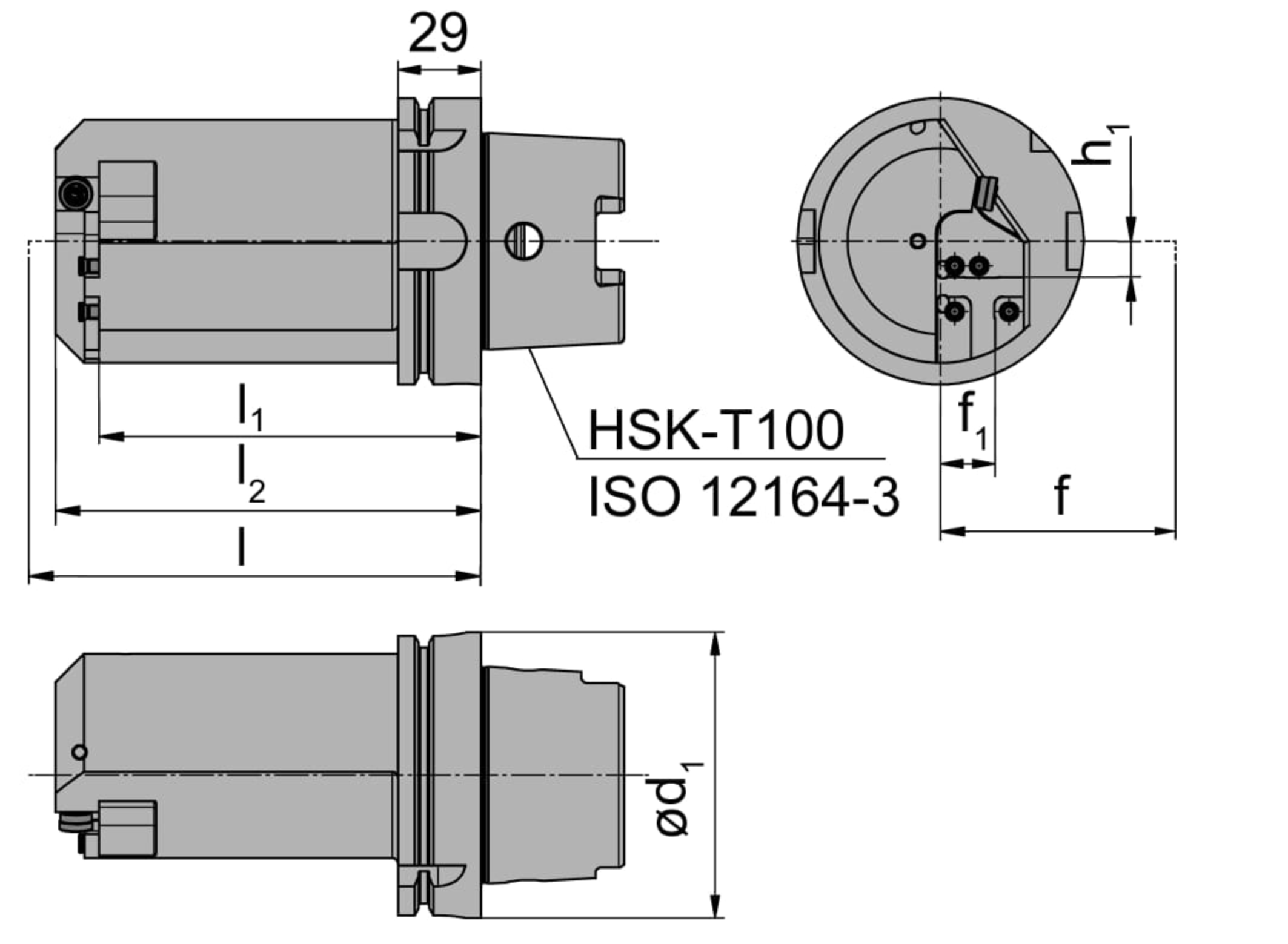

Distance from center (h1)
0.492
˝
12.5
mm
Bore diameter rotate (d1)
3.937
˝
100
mm
Cassette system from the middle (f1)
0.748
˝
19
mm
Length of base from bore (l2)
5.858
˝
148.8
mm
Dimension locating face to cassette (l1)
5.26
˝
133.6
mm
ISO_CCTWS
HORN22000293$$;HORN22000283$$
DIN_CCTWS
HORN-22000293;HORN-22000283
Katalog_CCTWS
220002
DIN_CCTMS
HSK10000795
ISO_CCTMS
HSK07C1000$$$$
| Downloads | |
|---|---|
| HSKT100R220150K2IK_20240118_054801054.STP | Download |
| HSKT100R220150K2IK.DXF | Download |
| Download all files | |
