L105.0050.2.2 EG35
Insert
Material number L105005022EG35

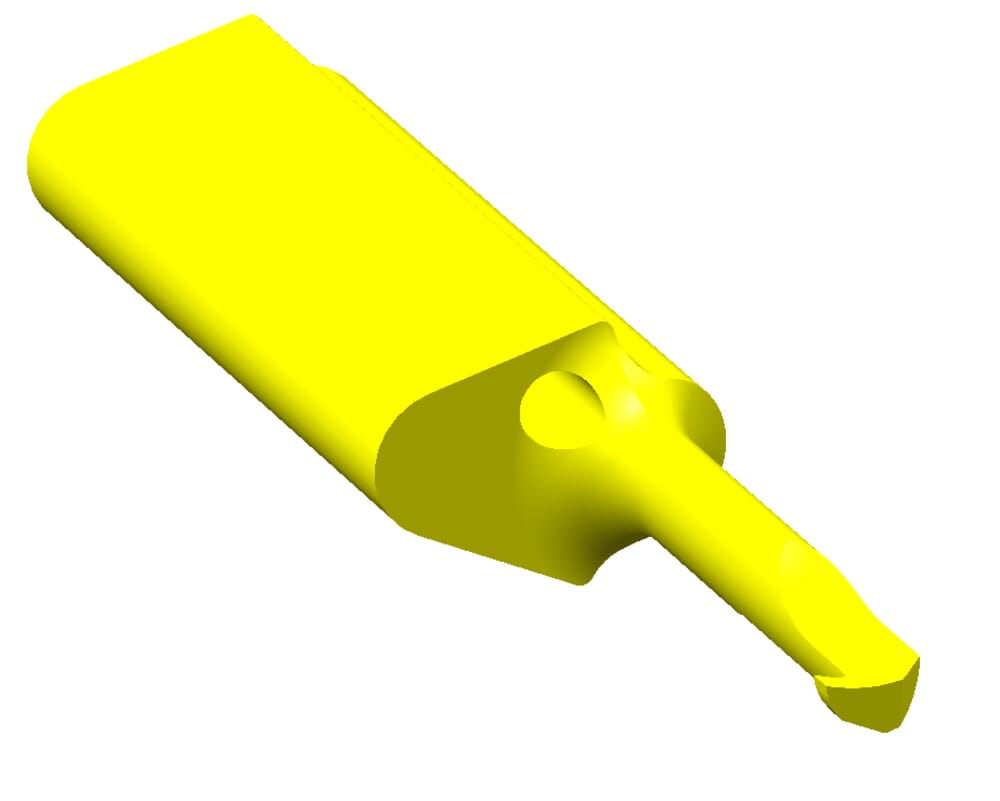

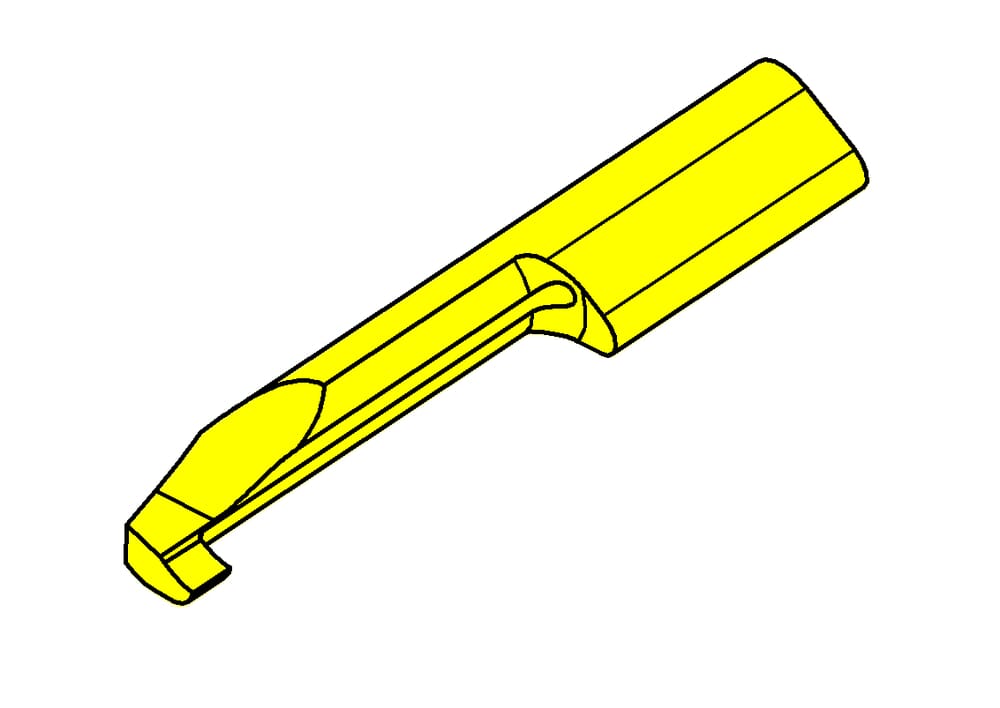

HORN Insert L105.0050.2.2 EG35 for Turning

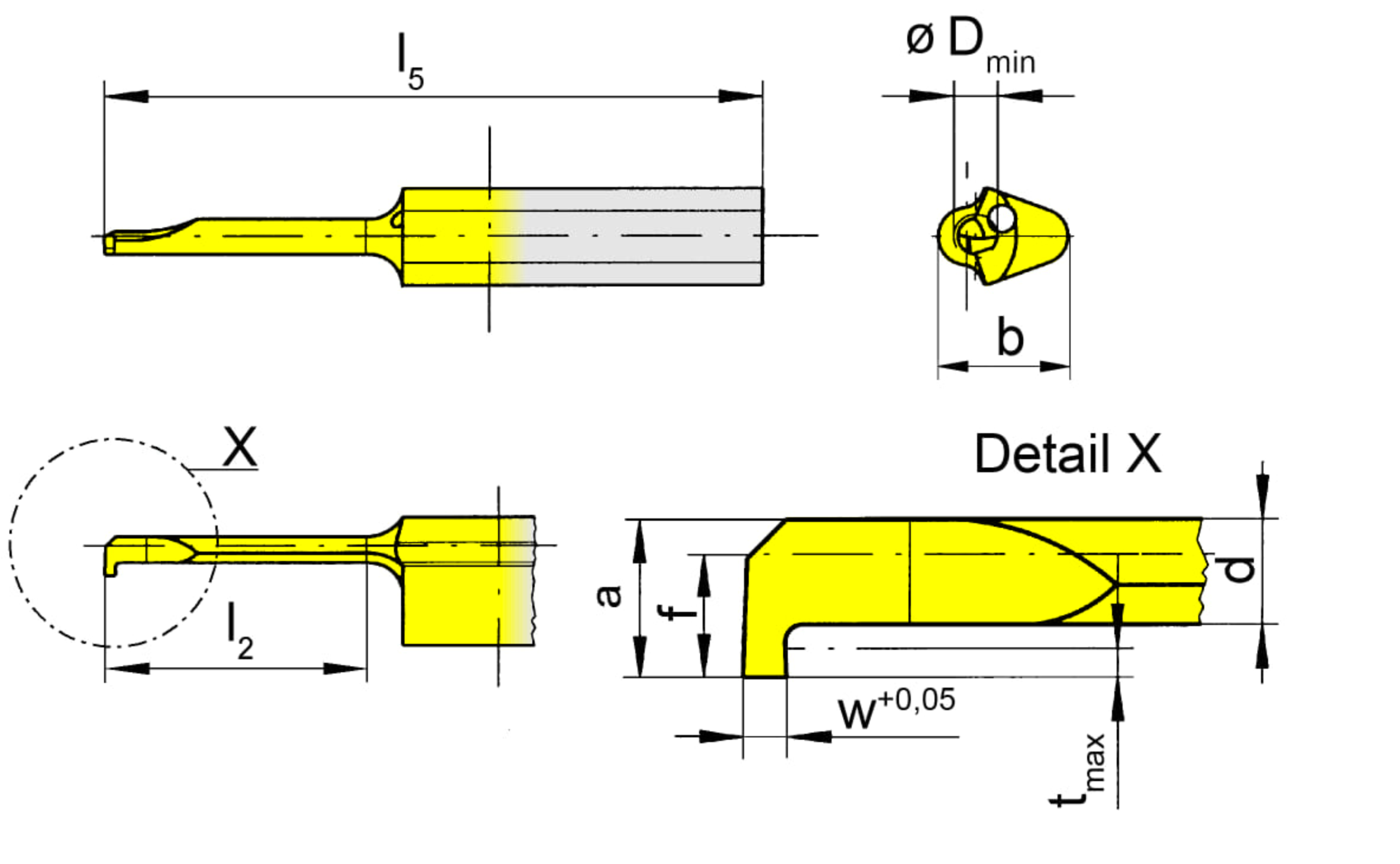

Neck length (l2)
0.472
˝
12
mm
Head size (a)
0.071
˝
1.8
mm
Maximum depth of groove (tmax)
0.016
˝
0.4
mm
Width of blank (b)
0.232
˝
5.9
mm
ISO_SSC
HORN105123$95N$$$$$
DIN_SSC
HORN-10512395N
Katalog_SSC
105123
Width of groove (w)
0.02
˝
0.5
mm
Neck diameter (d)
0.047
˝
1.2
mm
Setting range radial (f)
0.055
˝
1.4
mm
Total length (l5)
1.181
˝
30
mm
Smallest bore diameter (Dmin)
0.079
˝
2
mm
| Downloads | |
|---|---|
| L105005022.STP | Download |
| L105005022_20240205_204629109.DXF | Download |
| Download all files | |
